Diagram #5, Diagram #6, Diagram #7 – Derale Performance Direct Fit Jeep Wrangler Performance Electric Fan Kit User Manual

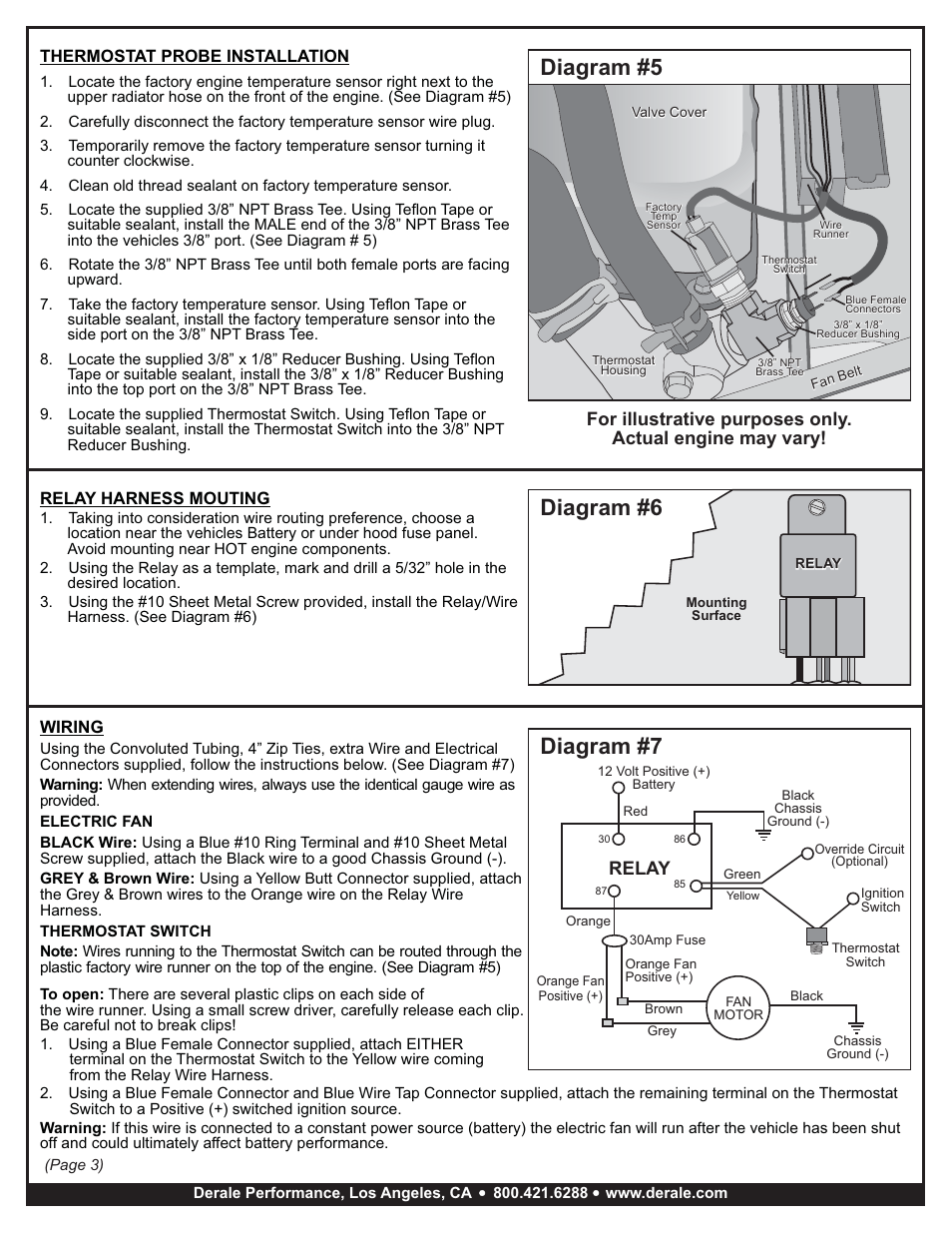

Page 3: Relay, Thermostat probe installation, Relay harness mouting, Wiring
