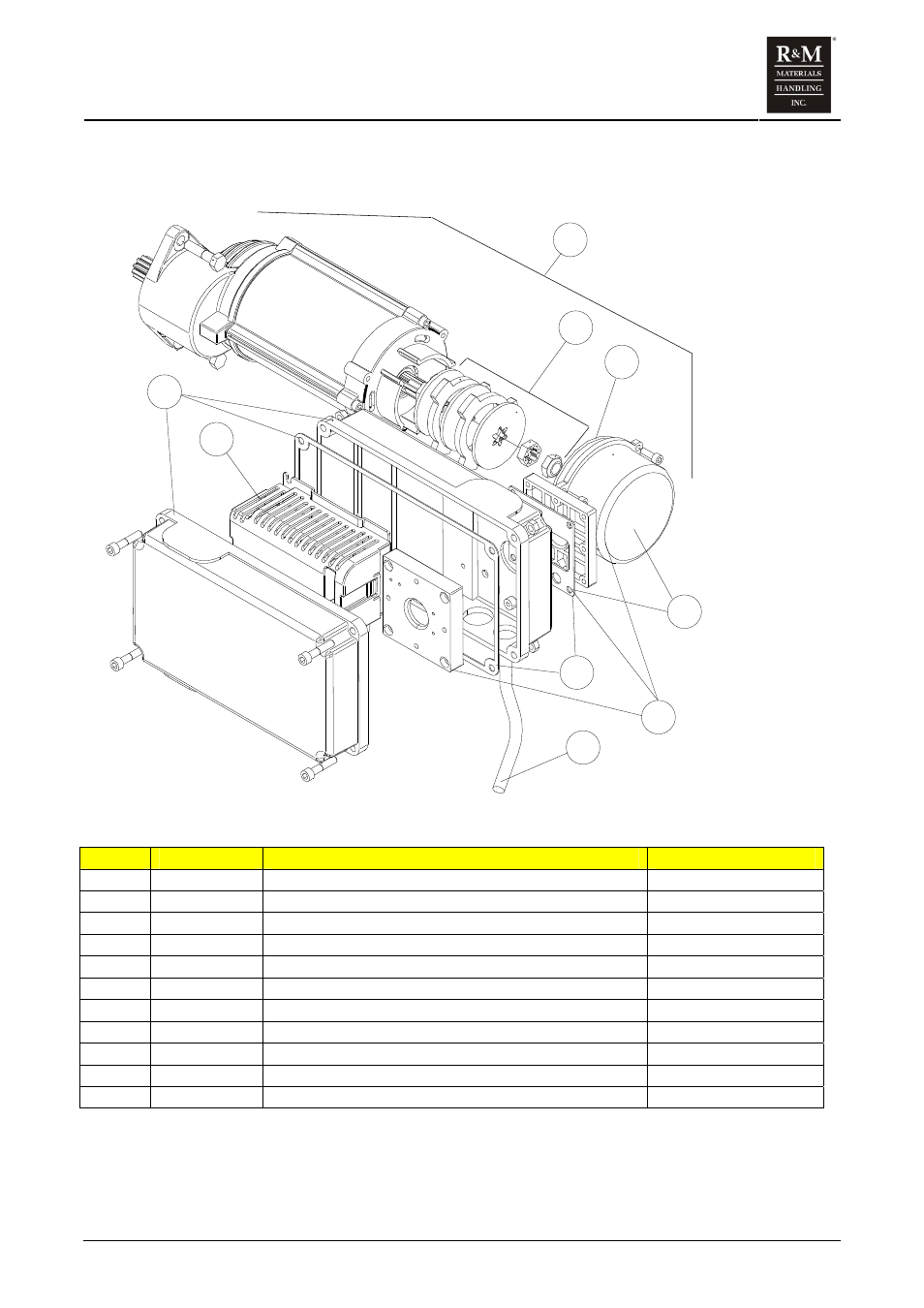

6.2 TMU Variable Frequency Drive
6
3
1
5
2
7
3
4
2
Table 17. TMU Variable Frequency Drive
Item
Part Number Description Specification
1 52296293 Brake repair kit M06-001V
2 52300292 Gasket set M06-008V
3 52300291 Enclosure M06-007V
4 52300287 Inverter + filter 48v control M06-003V
4 52300288 Inverter + filter 115v control M06-004V
5 52297959 Electrical cable + plug + cable gland + nut CCGCELCP-04
6 52299087 Complete gear motor drive + VFD – 48v control
6 52299088 Complete gear motor drive + VFD – 115v control
6 52299089 Complete gearless motor drive + VFD – 48v control
6 52299090 Complete gearless motor drive + VFD – 115v control
7 Brake cover kit with gasket
