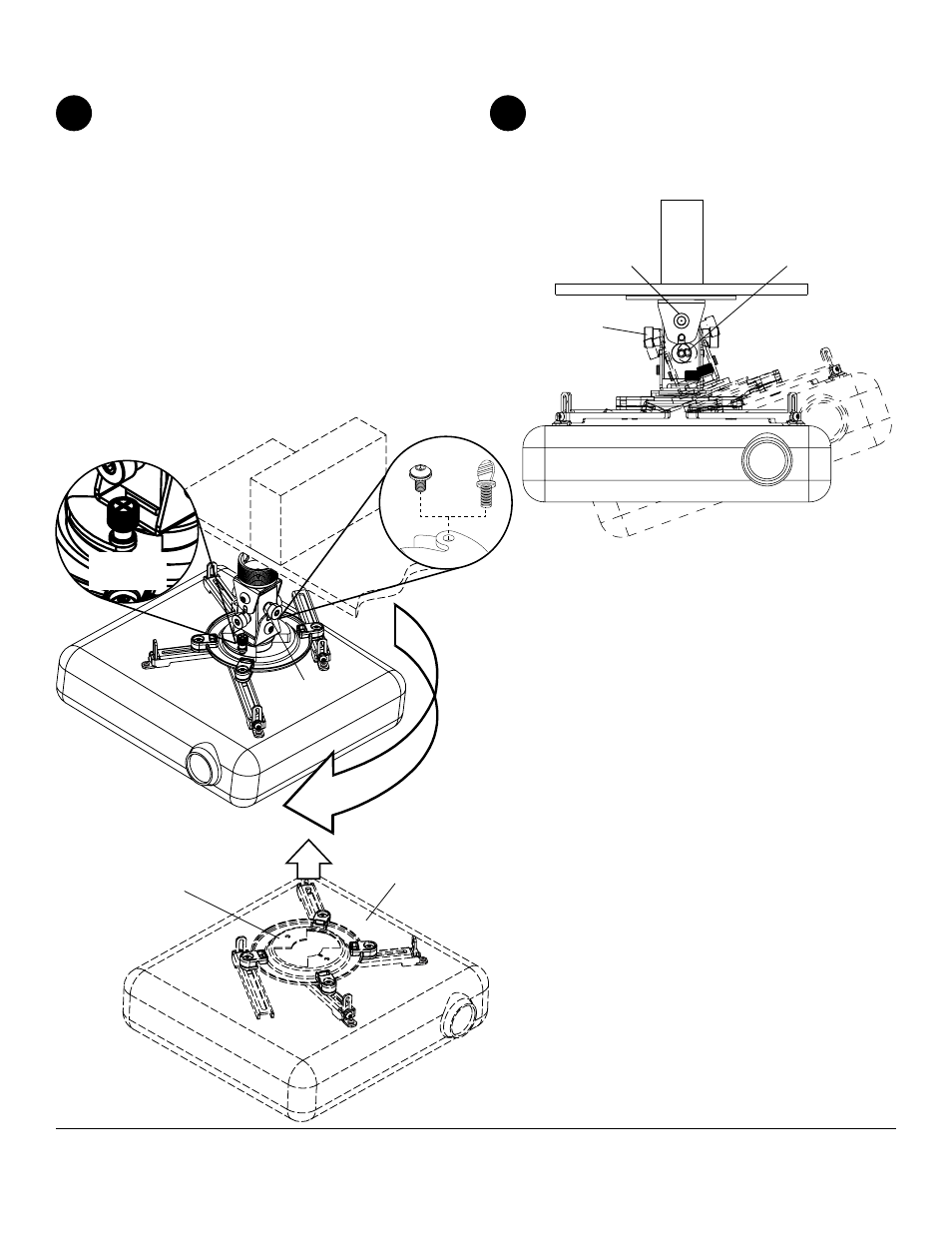

Attaching Adapter Plate to Projector Mount
Attach projector with adapter plate ( D) to projector
mount assembly ( A) by inserting the mount into the
adapter plate and twisting until the adapter plate
will no longer turn. The spring loaded captive screw
should line up with a corresponding hole on the
adapter plate. Push down and tighten the spring
loaded captive screw to secure the adapter plate to
the mount. If not using the optional security feature,
fasten thumb screw ( L) in the hole opposite the
spring loaded captive screw.
OPTIONAL: For Armor Lock™ security, insert
#10-32 x 3/8" serrated washer head screw ( M) in
the hole opposite the spring loaded captive screw.
Tighten with 4 mm security allen wrench ( O). This
will prevent the projector from being removed.
Use knobs to adjust projector mount roll and pitch.
Knobs also may be adjusted using allen wrenchs
( O,T).
Tighten socket pin screw using allen wrench ( O) to
lock roll and pitch position.
6 7
1
CAPTIVE
SCREW
D
A
2
PROJECTOR
ROLL
ADJUSTMENT
KNOB
PITCH
ADJUSTMENT
KNOB
SOCKET
PIN SCREW
L
M
