(Revised 2010-7-30) Page 156 of 158

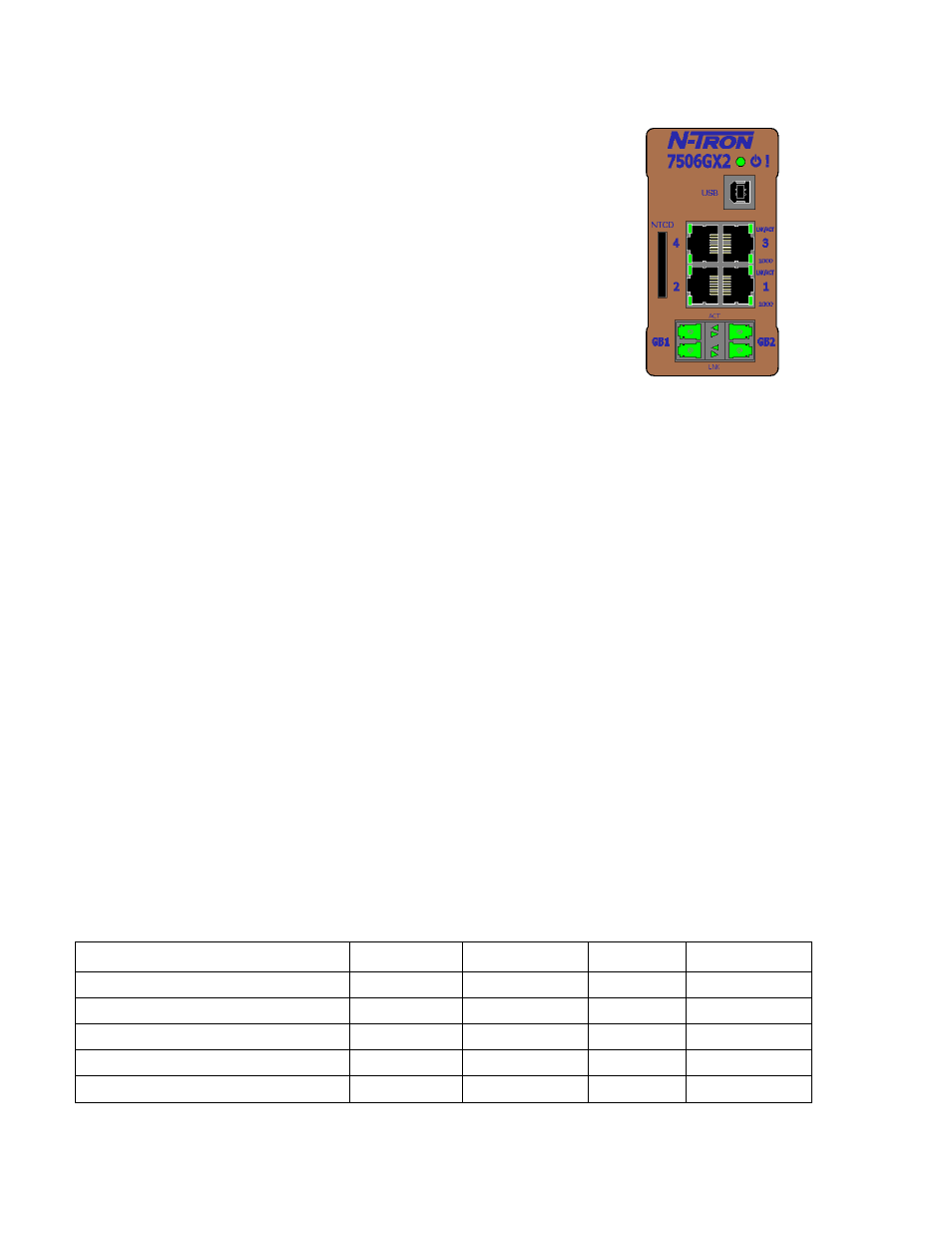

KEY SPECIFICATION
Switch Properties
Number of MAC Addresses: 4,000
Aging Time: Programmable
Latency Type: 1.6 µs
Switching Method: Store & Forward
Physical
Height:
3.75‖ (9.53 cm)
Width:
2.00‖ (5.08 cm)
Depth (incl. DIN mount): 3.87‖ (9.83 cm)
Weight: 1.05 lbs. (0.48 kg)
DIN Rail 35 mm
Electrical
Redundant Input Voltage: 10-49VDC (Regulated)
Input Current (max): 44 0mA max. @ 24VDC
Input Ripple: Less than 100 mV
N-TRON Power Supply: NTPS-24-1.3 (1.3 Amp@24VDC) (NOTE: Not appropriate for use with
M12, POE, and HV models.)
Environmental
Surrounding Air Temperature: -40°C to 80°C
Storage Temperature: -40°C to 85°C
Operating Humidity: 5% to 95%
(Non Condensing)
Operating Altitude 0 to 10,000 ft.
Shock and Vibration
(bulkhead mounting)
Shock: 200g @ 10ms
Vibration/Seismic:
50g, 5-200Hz,Triaxial
Reliability
MTBF:
>2 Million Hours
Warranty: 3 years from the date of purchase.
Connectors
10/100/1000BaseT: (4) RJ-45 Copper Ports
Optional SFP Ports:
1000BaseSX:
Up to two (2) LC Duplex Gigabit Fiber Ports (optional)
Recommended Wiring Clearance:
Front: 4" (10.16 cm)
Side: 1" (2.54 cm)
Network Media
10BaseT:
>Cat3 Cable
100BaseTX: >Cat5 Cable
1000BaseT: >Cat5e Cable
minimum length : 1 meter
maximum length : 100 meters
Gigabit Fiber Transceiver (SFP) Characteristics
Fiber Length
550m* with
50/125 µm
10km** 40km** 80km**
TX Power Min -9.5dBm -9.5dBm -2dBm 0dBm
RX Sensitivity Max -17dBm -20dBm -22dBm -24dBm
Wavelength 850nm 1310nm 1310nm 1550nm
Assumed Fiber Loss -0.5 dB/km -0.35 dB/km -0.25 dB/km
Laser Type VCSEL FP DFB DFB
*SX Fiber Optic Cable
** LX Fiber Optic Cable
