Logical View

The 9000 Web Management offers a logical view of the switch. Here a user or administrator can see

a graphical depiction of the 9000 switch with the installed modules that have been configured in it. Ports

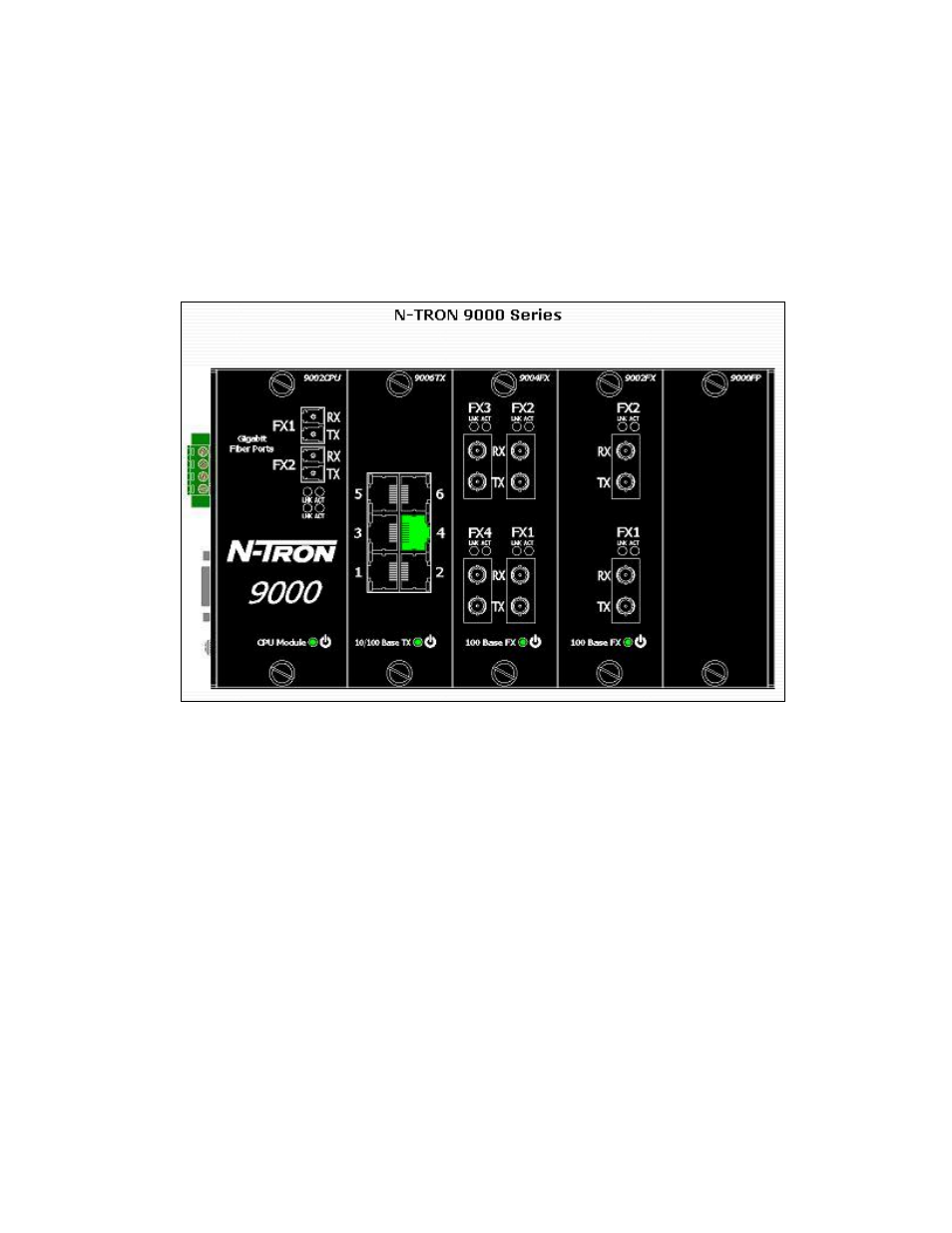

that are linked will turn green, while ports that are not linked will show up as black. The example below
shows only port 4 on the 9006TX module is linked. The other ports are currently in the down state (not
being used).
