CTA USER MANUAL

© DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED - 13 - 2007-05-09

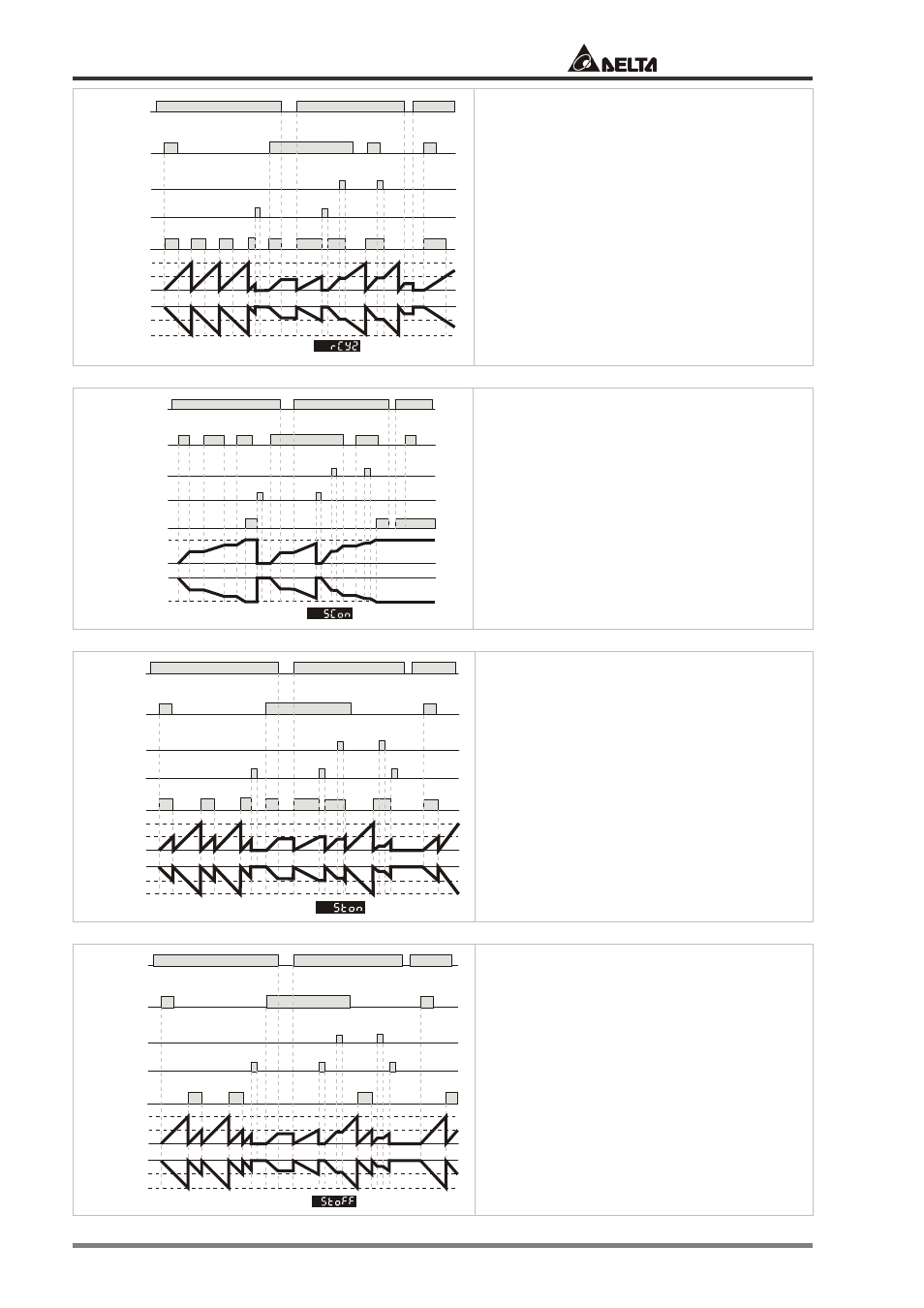

Power signal

Start signal

Pause signal

Clear signal

Output signal

Up

Down

SV1

SV1

SV2

SV2

0

0

Repeat Cycle 2

Repeat Cycle2 (RCY2)

Output in cycle.

The start signal starts to time and output when
the rising edge is triggered and the clear signal
is not executed. When the set time SV2 is
reached, the output will be disabled and the
timer continue to time until the set time SV1 is
reached and the timer will start the timing
again.

Power signal

Start signal

Pause signal

Clear signal

Output signal

Up

Down

0

SV

SV

0

Signal Cumulate

Signal Cumulate (SCON)

Latched cumulate timer.
When the start signal is enabled (Hi), the timing

will start until the set time is reached for
output. During the execution of clear signal, the
timer is reset and waits for the start signal to be
enabled (Hi) again. CTA will resume the timing.

Power signal

Start signal

Pause signal

Clear signal

Output signal

Up

Down

SV1

SV2

SV1

0

0

SV2

Signal Twin ON-Start

Signal Twin ON-Start (STON)

Output in cycle.

The start signal starts to time and output when
the rising edge is triggered and the clear signal
is not executed. When the set time SV2 is
reached, the output will be disabled and the
timer will restart the timing from 0 until it
reaches the set time SV1 and turn Off.

Power signal

Start signal

Pause signal

Clear signal

Output signal

Up

Down

SV1

SV1

SV2

SV2

0

0

Signal Twin OFF-Start

Signal Twin Off-Start (STOFF)

Output in cycle.

The start signal starts to time when the rising
edge is triggered and the clear signal is not
executed. When the set time SV1 is reached,
the output will be On and the timer will restart

the timing from 0 until it reaches the set time
SV2. The timer will then start the timing again
and disable the output.
