CTA USER MANUAL

2007-05-09 - 12 -

© DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED

Power signal

Start signal

Pause signal

Clear signal

Output signal

Up

Down

SV

SV

Repeat Cycle

0

0

timer output set as 0

Power signal

Start signal

Pause signal

Clear signal

Output signal

Up

Down

SV

SV

Repeat Cycle

t

t

t

timer output not set as 0


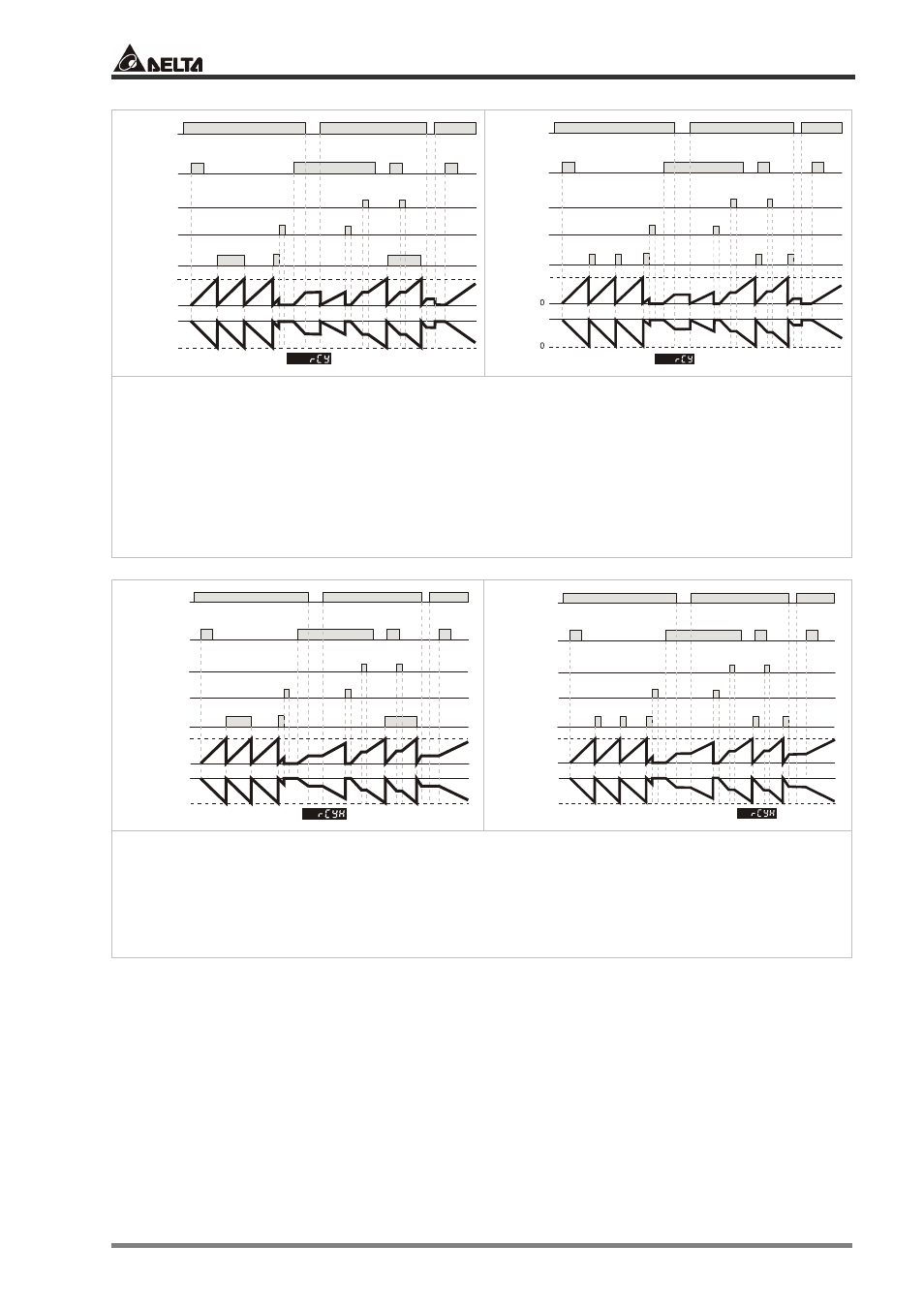

Repeat Cycle (RCY)

Output in cycle.
When the output time is selected as 0 (left: continuous output), the output of the first timing cycle will

not be executed. When the set time is reached, the timing will be reset and restarted and the output will
be enabled until the next cycle.

When the output time is not 0 (right), the output time will be different from when the output time is 0.

Power signal

Start signal

Pause signal

Clear signal

Output signal

Up

Down

SV

SV

0

0

Repeat Cycle Hold

Timer output set as 0

Power signal

Start signal

Pause signal

Clear signal

Output signal

Up

Down

SV

SV

0

0

RCYH timer output not set as 0

t

t

t


Repeat Cycle Hold (RCYH)

Same as “RCY”
The only difference is whether the current value is held when the power is switched off. In RCYH, After
the power is switched on, the timer will resume the timing.
