Figure 14 shows the Expert Mode display for the DSC-200/300 after the "Q" key has
been pressed. The information from the Basic Mode display is presented along with more details
such as the Vendor and Device IDs, PCI Class Code, size of memory and I/O regions, etc.
Pressing the "N" key will show similar information for all non-Quatech PCI devices in the
system, including those devices integrated on the motherboard. In this example, the "Base addr
0" resource is reserved.
For users interested in even more details, PCI BIOS information can be displayed by
pressing the "B" key. Pressing the "I" key displays the PCI interrupt routing table.

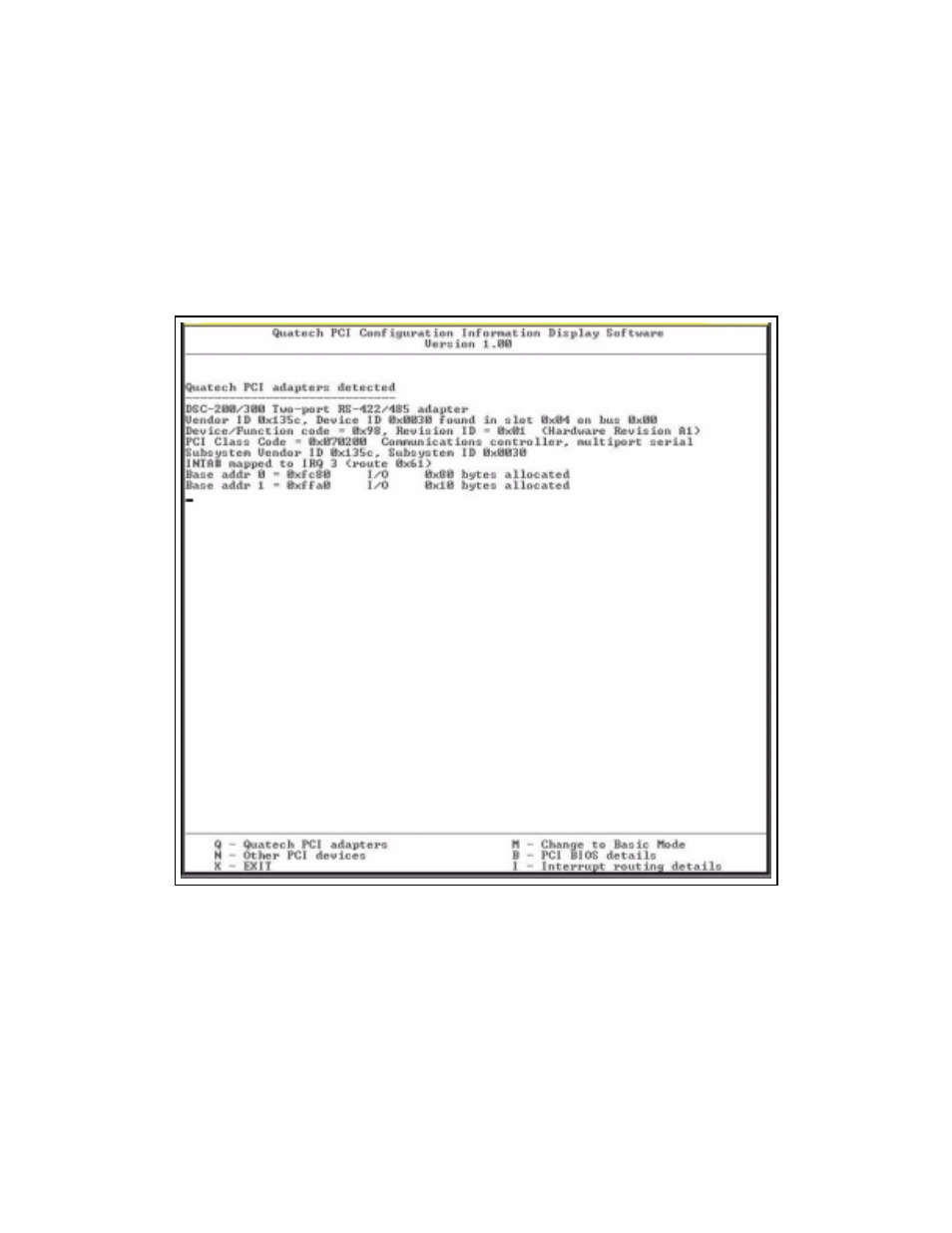

Figure 14 --- QTPCI.EXE Expert Mode display
Quatech DSC-200/300 User's Manual 32
