The X8 clock mode locks the ports hardware clock at
eight times the standard rate. The baud rate the port
runs at will always be eight times the rate requested by
the application. This mode is useful for legacy
applications which cannot request baud rates over
115.200.
921,600 X8
the application. This mode is useful for legacy
applications which cannot request baud rates over
115.200.
6. Double click the hardware class Ports (Com and LPT). Each Quatech PCI Serial
Port listed in this class is a “child device” of the DSC-200/300 “parent device.”

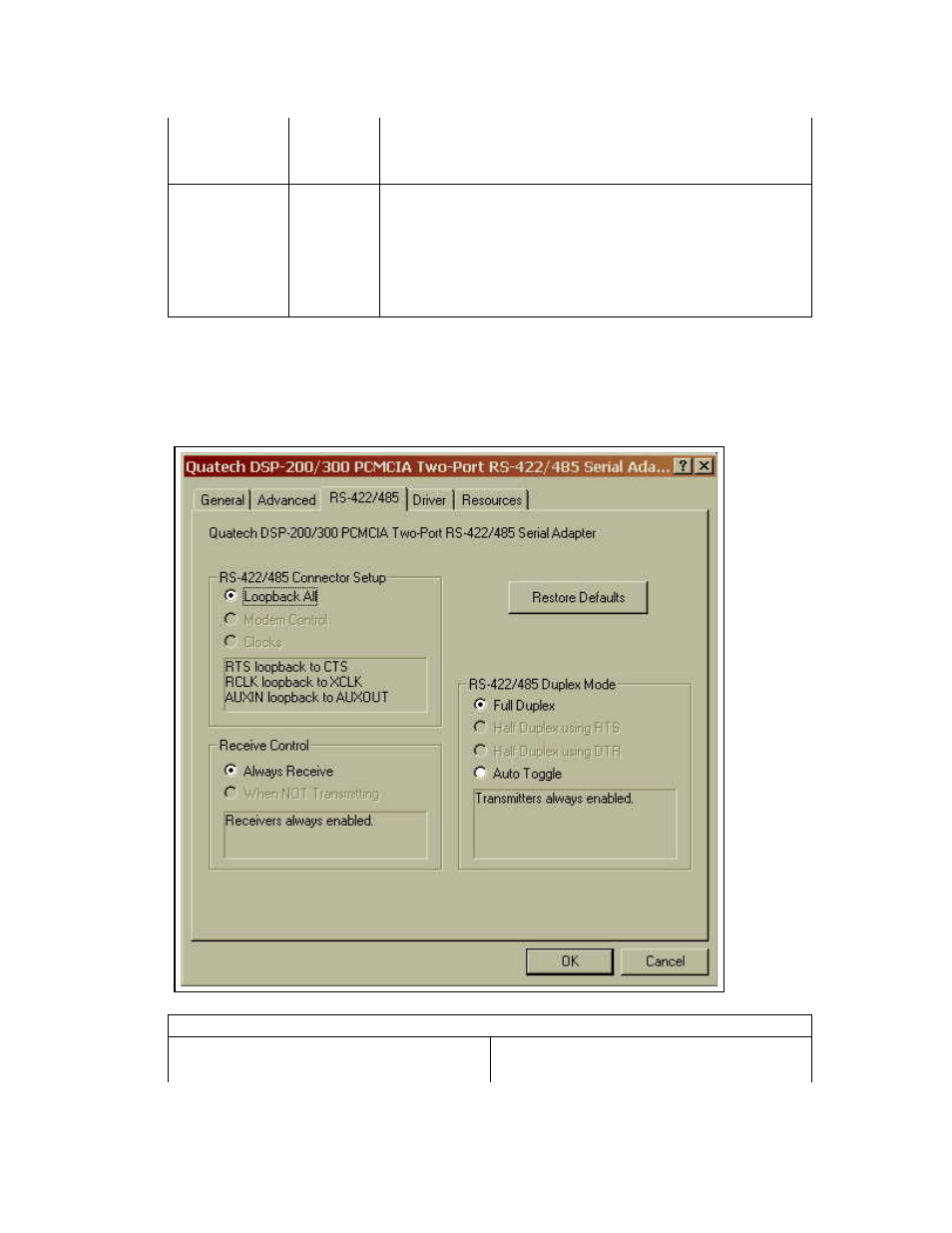

7. Open the Properties dialog for a COM port, then click the RS-422/485 tab to view
the settings for that port.
RTS routed to CTS, AUXIN routed to
AUXOUT, and TCLK routed to RCLK.
Loopback All
RS-422/485 Connector Setup
