Hardware Description
4 Manual Documentation Number EIR405-T – 0912m
www.bb-elec.com
www.bb-europe.com

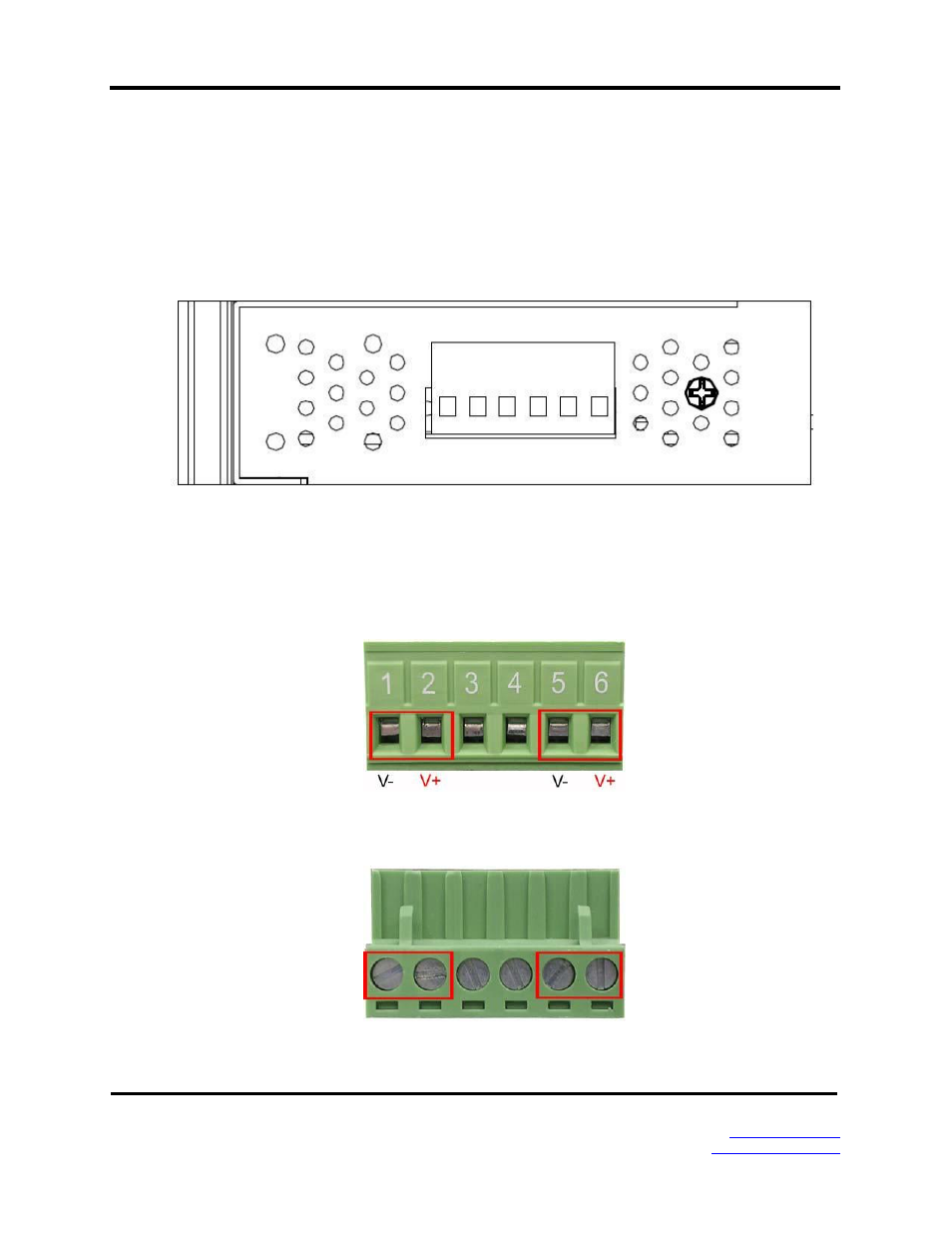

Top View
The top panel view of the EIR405-T is equipped with one terminal block connector that
consists of two 12 to 48 VDC power inputs and the fault alarm output.
Wiring the Power Inputs
Follow the steps below to insert the power wires.
1. Insert the positive and negative wires into the V+ and V- contacts on the terminal block
connector.
2. Tighten the wire-clamp screws to prevent the wires from becoming loose.
