Mounting Installation
13 Manual Documentation Number EIR405-T – 0912m
www.bb-elec.com
www.bb-europe.com
6. To remove the switch from the track, reverse the steps above.
• First pushing down lightly on the switch will give enough room for the bottom of the
switch to clear the bottom of the DIN rail track.
• Pulling slowly at the bottom of the switch will bring the switch out so that the switch
can now be carefully lifted off the DIN rail track.

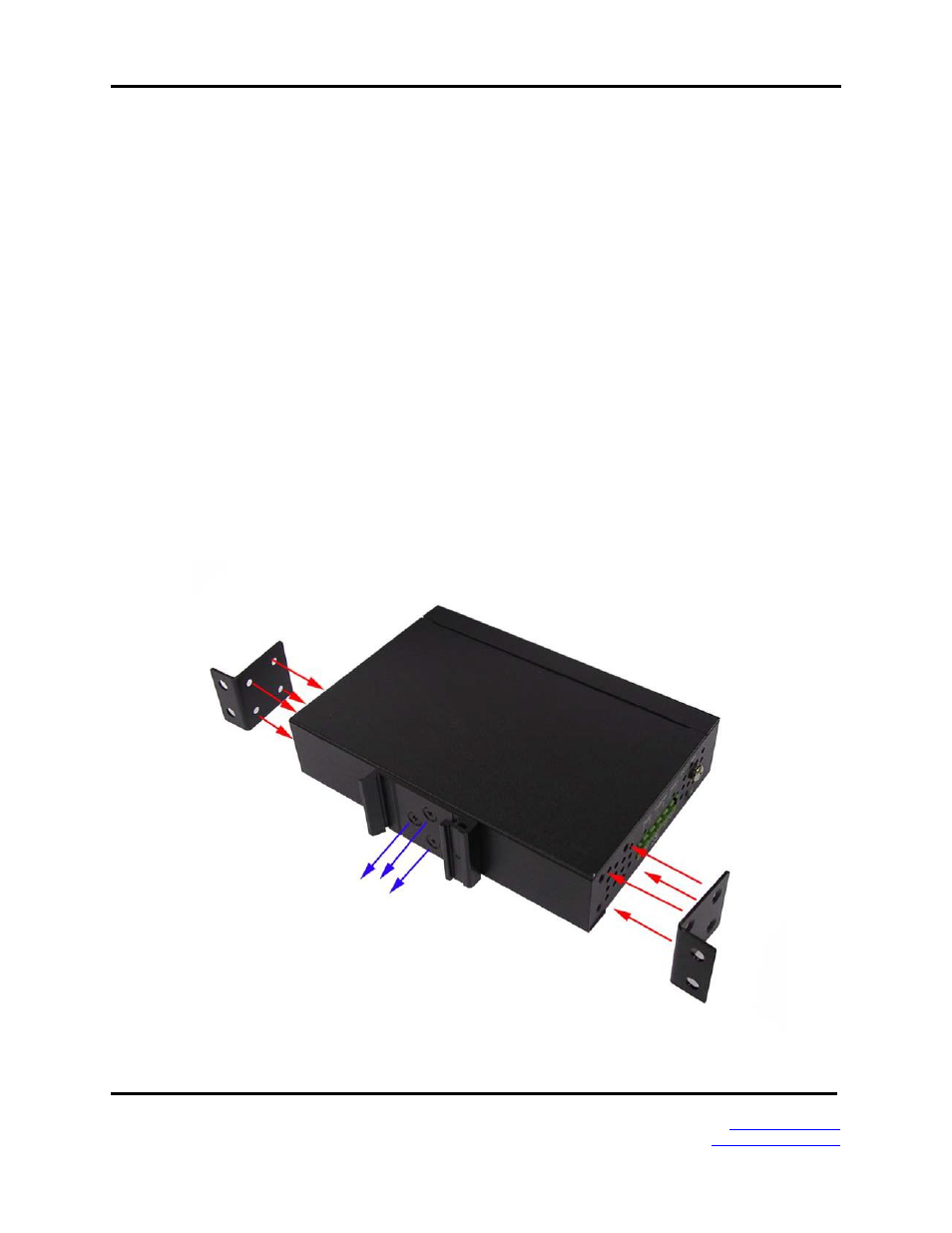

Wall or Panel Mount Plate Mounting
Follow the steps below to mount the switch with the wall mount plates.
1. Remove the DIN rail clip from the switch; loosen the screws to remove the DIN rail clip.
2. Place the wall mount plate on the side panels of the switch.
3. Use the screws to screw the wall mount plate onto the switch.
4. Use the hook holes at the corners of the wall mount plates to hang the switch on the wall.
5. To remove the wall mount plate, reverse steps above.
