Mounting Installation
DIN-Rail Mounting

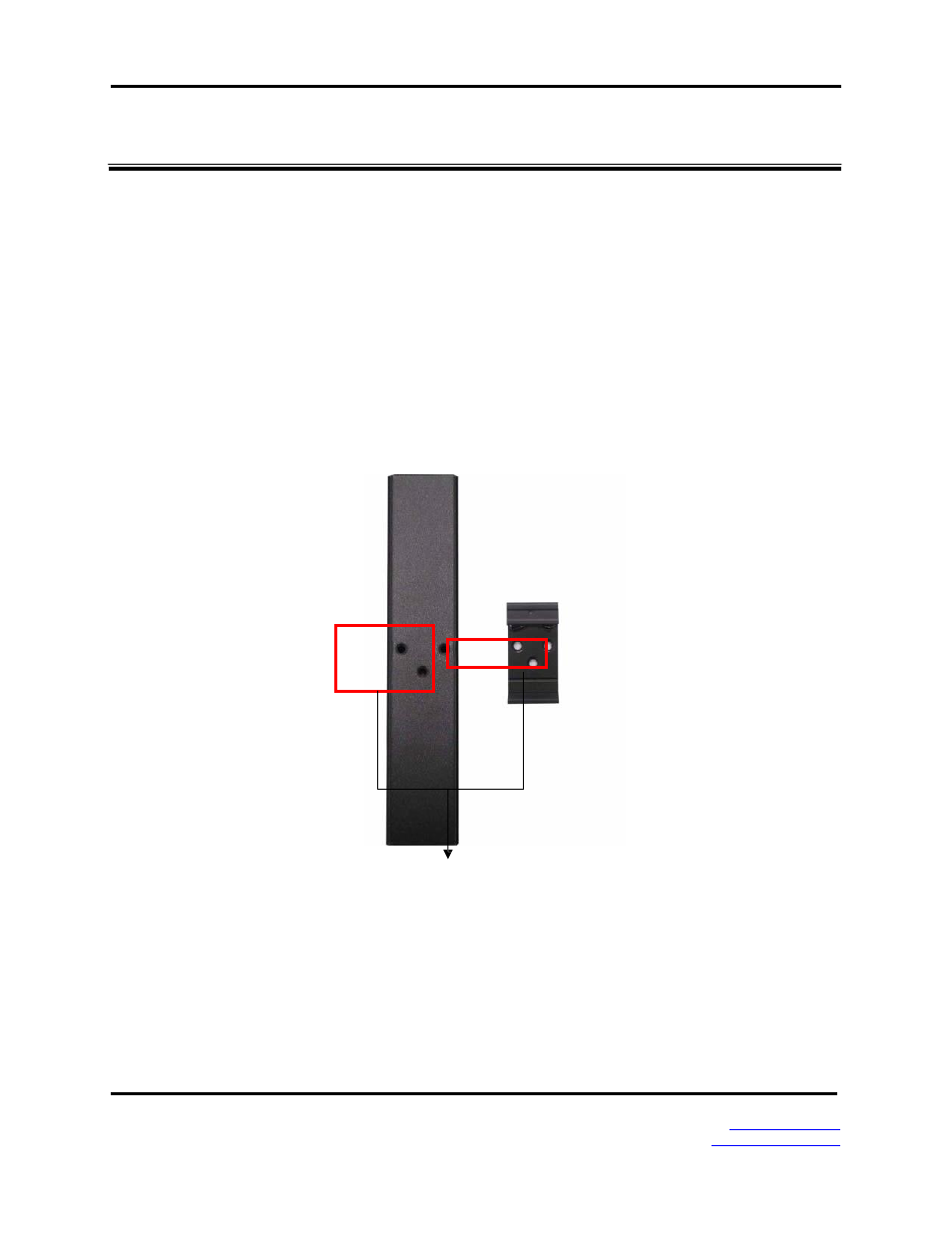

The DIN rail clip comes screwed on to the switch, from the factory. If the DIN rail clip is
not screwed on the switch, please see the following figure to re-attach the DIN-Rail clip.
Then follow the steps below to hang the switch onto a DIN rail.
Rear Panel of
the switch
DIN-Rail
1. Use the screws to screw the DIN rail clip onto the switch.
2. To remove the DIN rail clip, reverse step 1.
