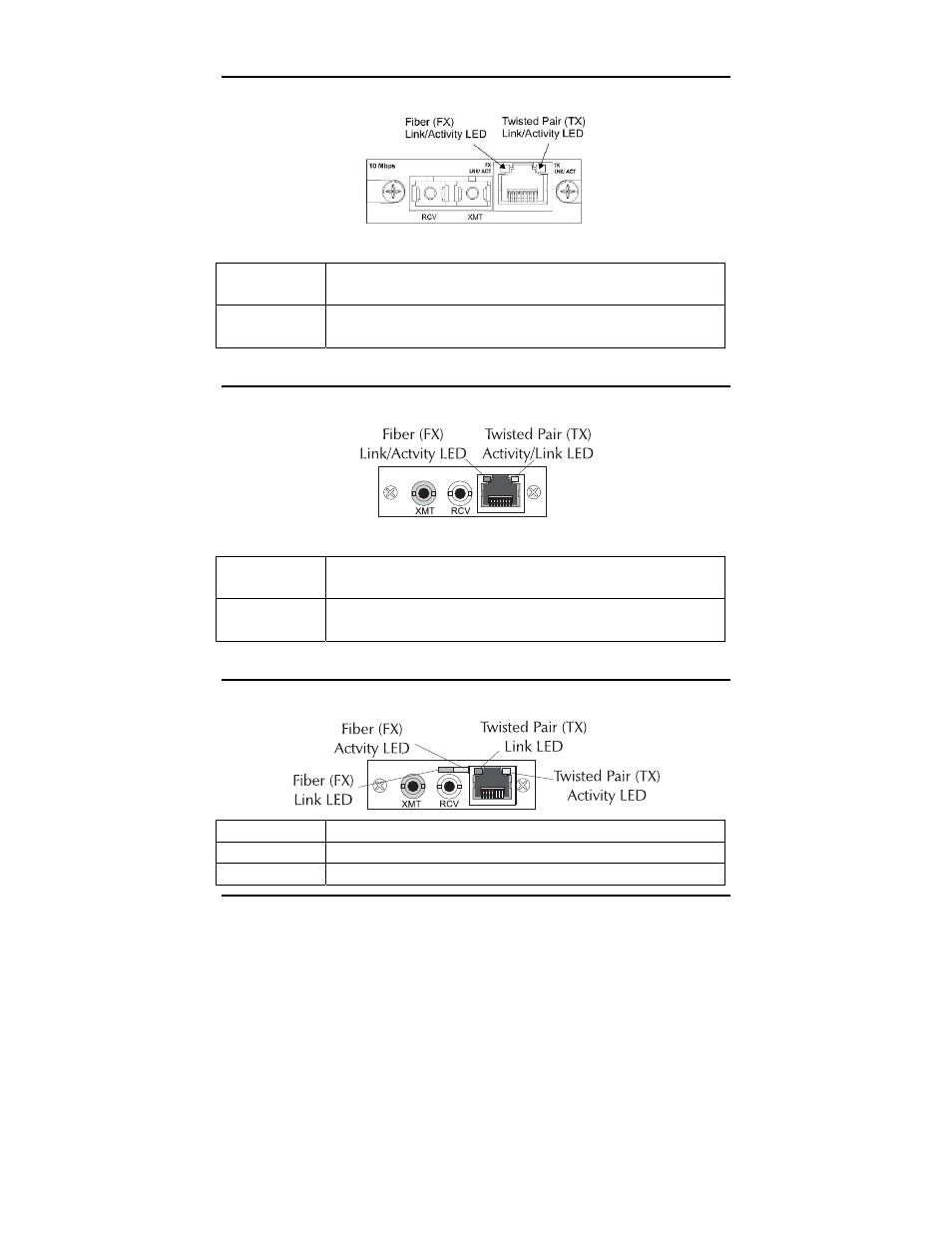

LEDs on McPIM TP/FO (-10)
The LED functions on McPIM TP/FO (-10) are as follows:
FO LINK/ACT Glows green when link is established on the FO port; blinks
green when activity is detected on the port.
TP LINK/ACT Glows amber when link is established on the TP port; blinks
amber when activity is detected on the port.
LEDs on McLIM TP-TX/FX
The LED functions on McLIM TP-TX/FX are as follows:
FX LINK/ACT Glows green when link is established on the FX port; blinks
green when activity is detected on the port.
TX LINK/ACT Glows green when link is established on the TP/TX port; blinks
green when activity is detected on the port.
LEDs on McLIM TX/FX and TX/SX (-50)
The LED functions on McLIM TX/FX are as follows:
FX LINK Glows green when link is established on the FX port.
FX ACTIVITY Glows amber if data is being passed on the FX port.
TX PAIR LINK Glows green if link is established on the TX port.
