OBDII Streamer Command & Response
V2.11
Page 40/49

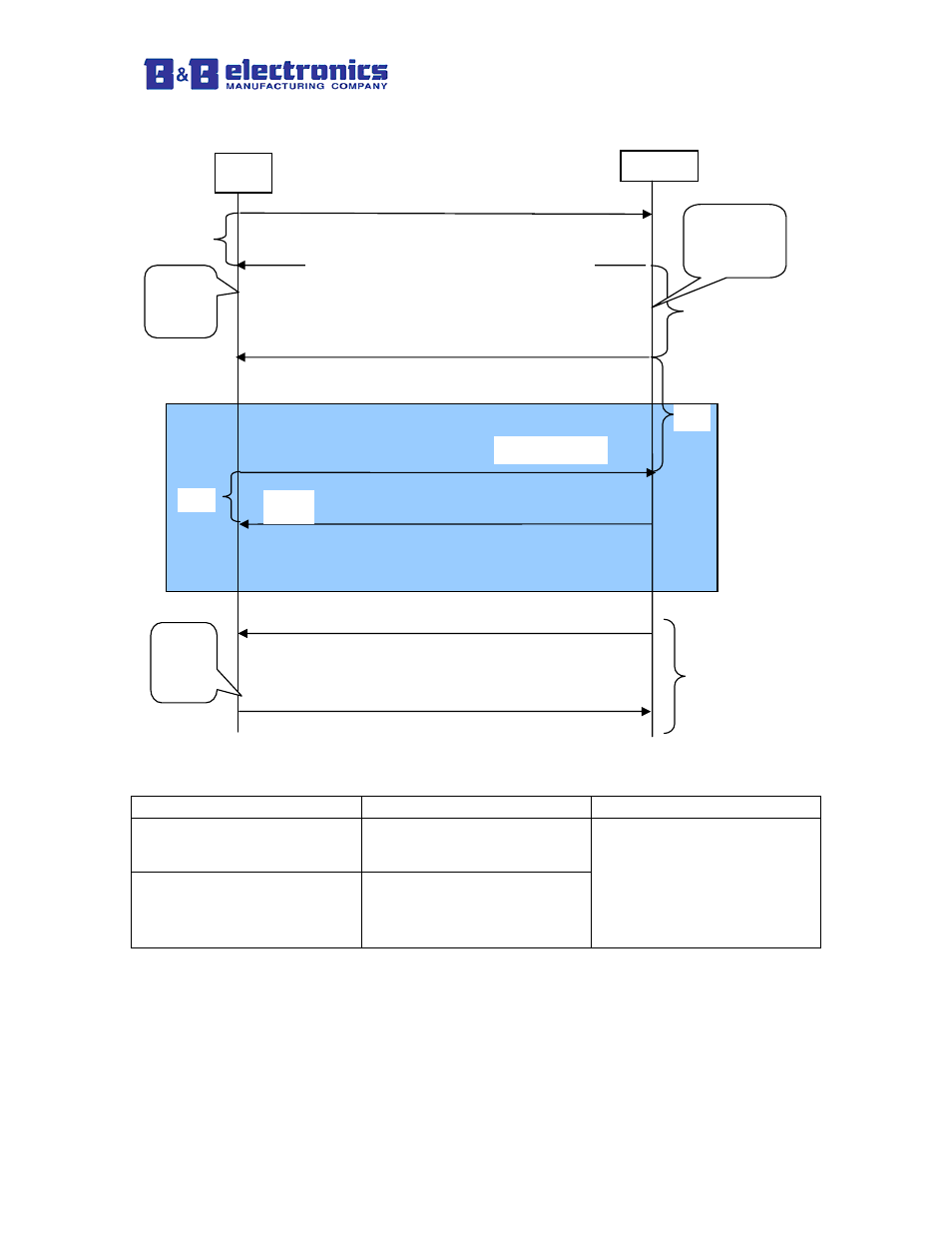

Figure 1 Host Update Application and Streamer Interactions
Baud rate table for component updates
Streamer Option
Baud Rate Change Notes
LDVDSV2-S 115,200 BPS The streamer host interface
changes to this baud rate as
shown in the diagram
above, when commanded to
begin a component update
command.
LDVDSV2-1587 57600 BPS
“@@&&” - ready
string
Repeat this behavior until all records are sent
Streamer Host
T1
T2
T3
T1
UPDATE_COMPONENT
UPDATE_COMPONENT ACK
s-record
“#”
Streamer
changes baud
rate
See Chart
Host
changes
baud
rate
At the
original
baud
rate
“!” - last S-record received
New
commands
T4
