Step2: After configuring the network setting of the GW-7433D, users can use
the GW-7433D Utility tool to configure it.

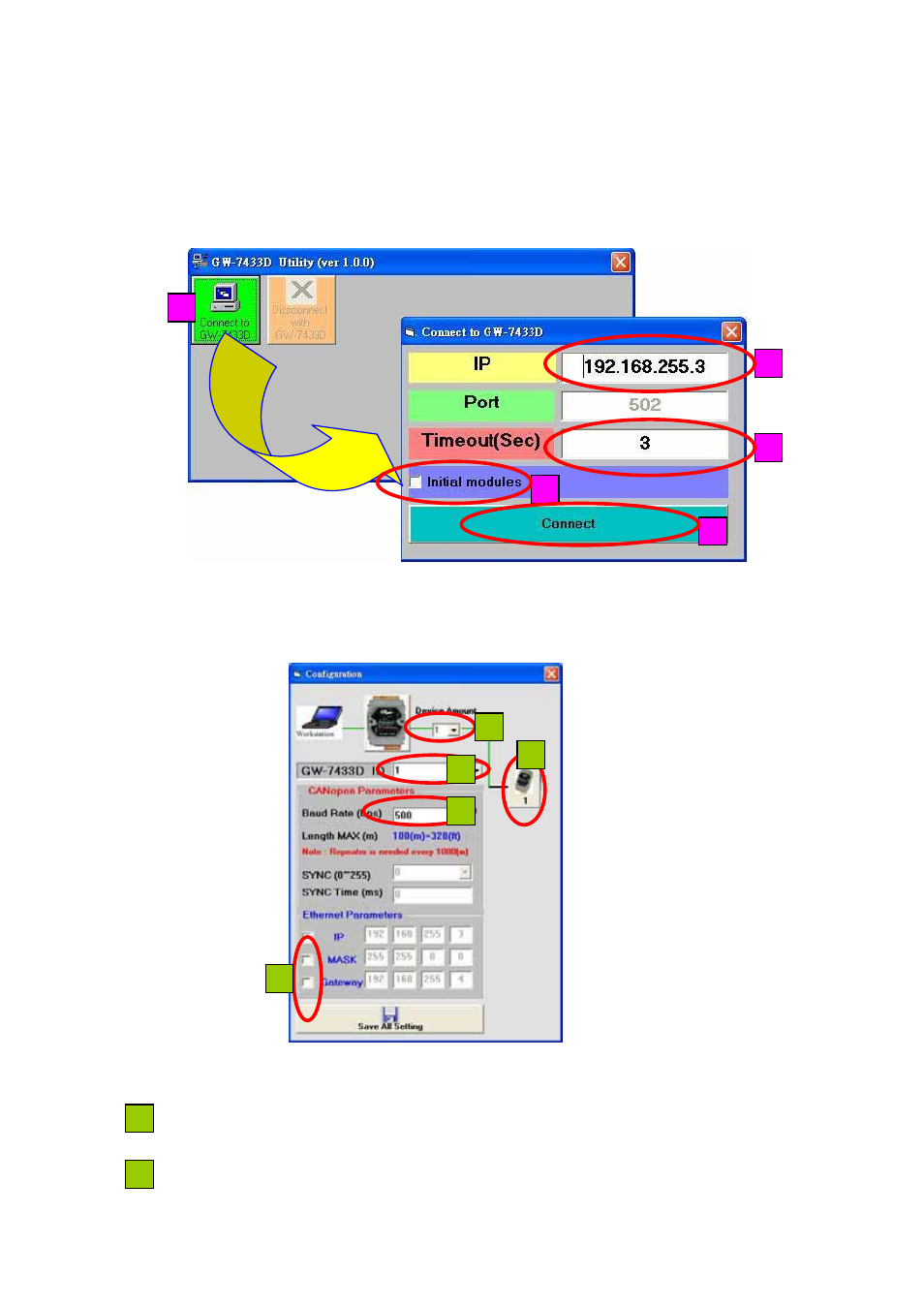

Step3: Click the “Connect” button to connect with the GW-7433D. These steps
are shown in the following figure.
1
Figure : Connection setting of GW-7433D
If the GW-7433D is online and work normally, the GW-7433D Utility tool will
display the “MappingModules” window. Shown in the following figure.
2
4
5
5
4
3
2
1
3
Connect to the CANopen slave devices with the GW-7433D
Æ Select the device amount of CANopen slaves. Maximum amount of CANopen
slaves = 10.
1
Æ The GW-7433D ID number, show in the 7-LED. 2
