25

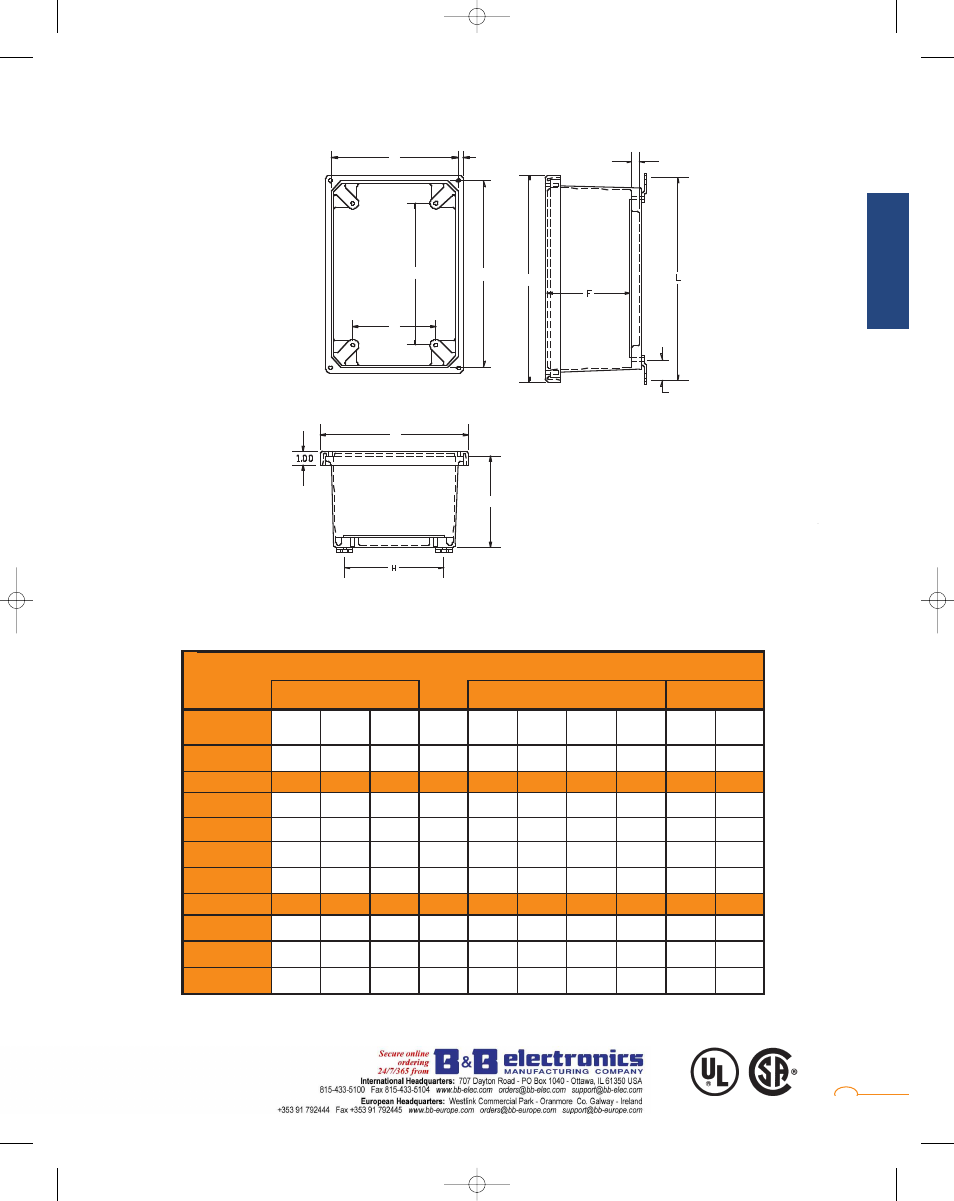

Box Size Centers Cover Dim.
Part No. A B C F H S Z L U W
AM664H 6.10 6.10 4.18 3.76 5.01 4.25 4.25 7.32 7.69 7.69
AM864H 8.00 6.12 4.13 3.68 5.01 6.25 4.25 9.19 9.59 7.71
AM1086H 10.13 8.26 6.13 5.68 7.01 8.25 6.25 11.19 11.77 9.90
AM1206H 12.13 10.26 6.13 5.68 9.01 10.25 8.25 13.19 13.77 11.90
AM1426H 14.13 12.26 6.13 5.68 11.01 12.25 10.25 15.19 15.73 13.85
AM1648H 16.27 14.40 8.13 7.68 13.01 14.25 12.25 17.19 17.87 15.99
AM1868H 18.40 16.40 8.13 7.68 14.97 16.25 14.25 19.28 20.00 18.00
AM2068H 20.00 16.00 8.13 7.68 14.54 17.81 13.81 20.84 21.59 17.59
All dimensions in inches.
Nominal 1/8" wall thickness
.47
.44
1.15
TYP.
Note: Cover removed for clarity
B
S A
U
Z
W
C
AM1084H 10.13 8.26 4.13 3.68 7.01 8.25 6.25 11.19 11.77 9.90
A
M
S
E
R
I
E
S
