35

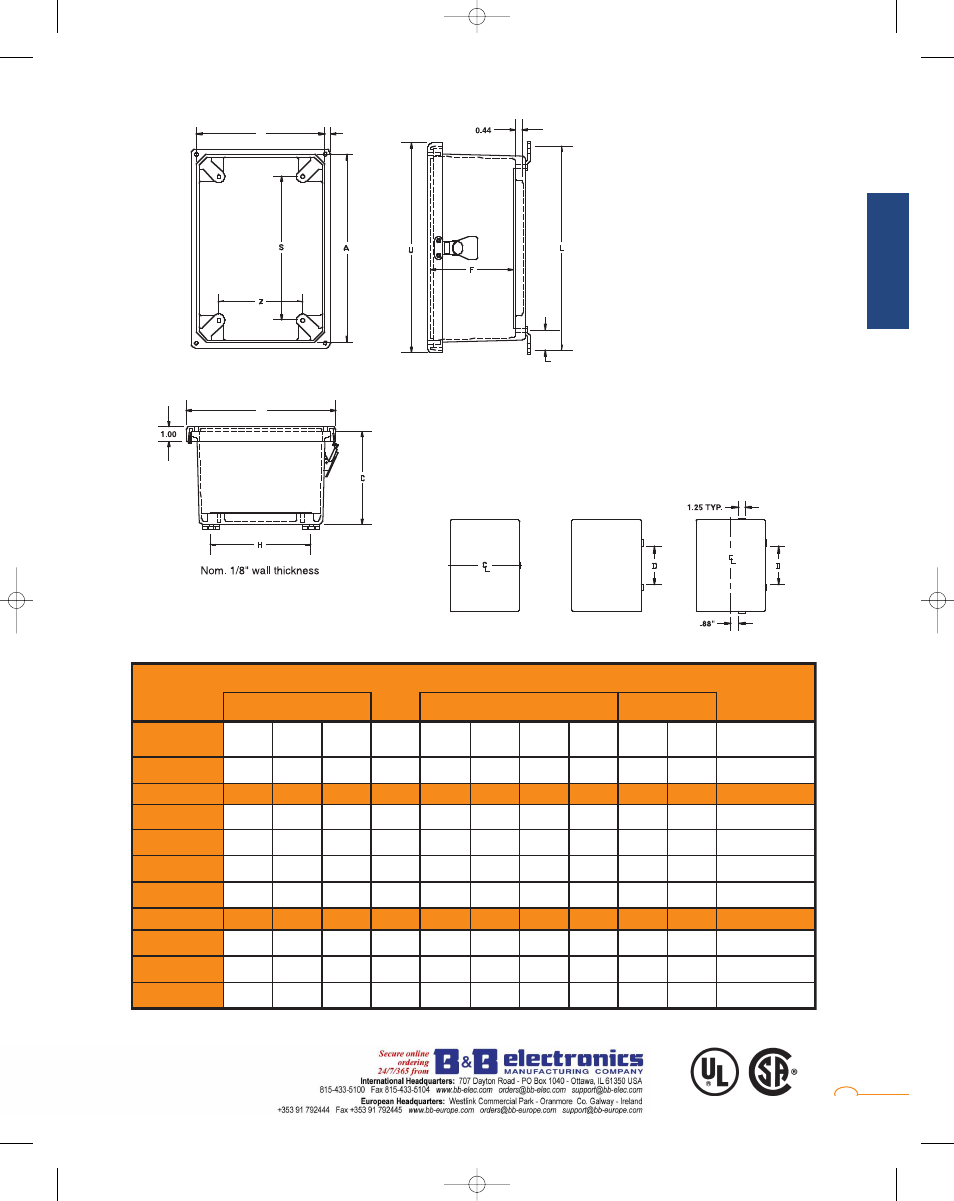

Box Size Centers Cover Dim.
Win. Dim.
Part No. A B C F H S Z L U W
AM664TW 6.10 6.10 4.18 3.67 5.01 4.25 4.25 7.32 7.69 7.69 4.25 x 4.25
AM864TW 8.00 6.12 4.13 3.59 5.01 6.25 4.25 9.19 9.59 7.71 4.25 x 6.25
AM1086TW 10.13 8.26 6.13 5.59 7.01 8.25 6.25 11.19 11.73 9.85 6.50 x 8.38
AM1206TW 12.13 10.26 6.13 5.59 9.01 10.25 8.25 13.19 13.73 11.85 8.50 x 10.38
AM1426TW 14.13 12.26 6.13 5.59 11.01 12.25 10.25 15.19 15.73 13.85 10.50 x 12.38
AM1648TW 16.27 14.40 8.13 7.59 13.01 14.25 12.25 17.19 17.87 15.99 11.00 x 13.00
AM1868TW 18.40 16.40 8.13 7.59 14.97 16.25 14.25 19.28 20.00 18.00 12.00 x 14.00
AM2068TW 20.00 16.00 8.13 7.59 14.54 17.81 13.81 20.84 21.59 17.59 11.00 x 15.00
All dimensions in inches.
Latch Locations
For use on
6x6x4 8x6x4
10x8x4
For use on
12x10x6 D=6.75
14x12x6 D=7.25
16x14x8 D=7.25
For use on
18x16x8 D=5.25
20x16x8 D=9.25
0.47
TYP.
1.15
TYP. Note: Cover removed for clarity
B
W
10x8x6
AM1084TW 10.13 8.26 4.13 3.68 7.01 8.25 6.25 11.19 11.73 9.85 6.50 x 8.38
A
M
S
E
R
I
E
S
