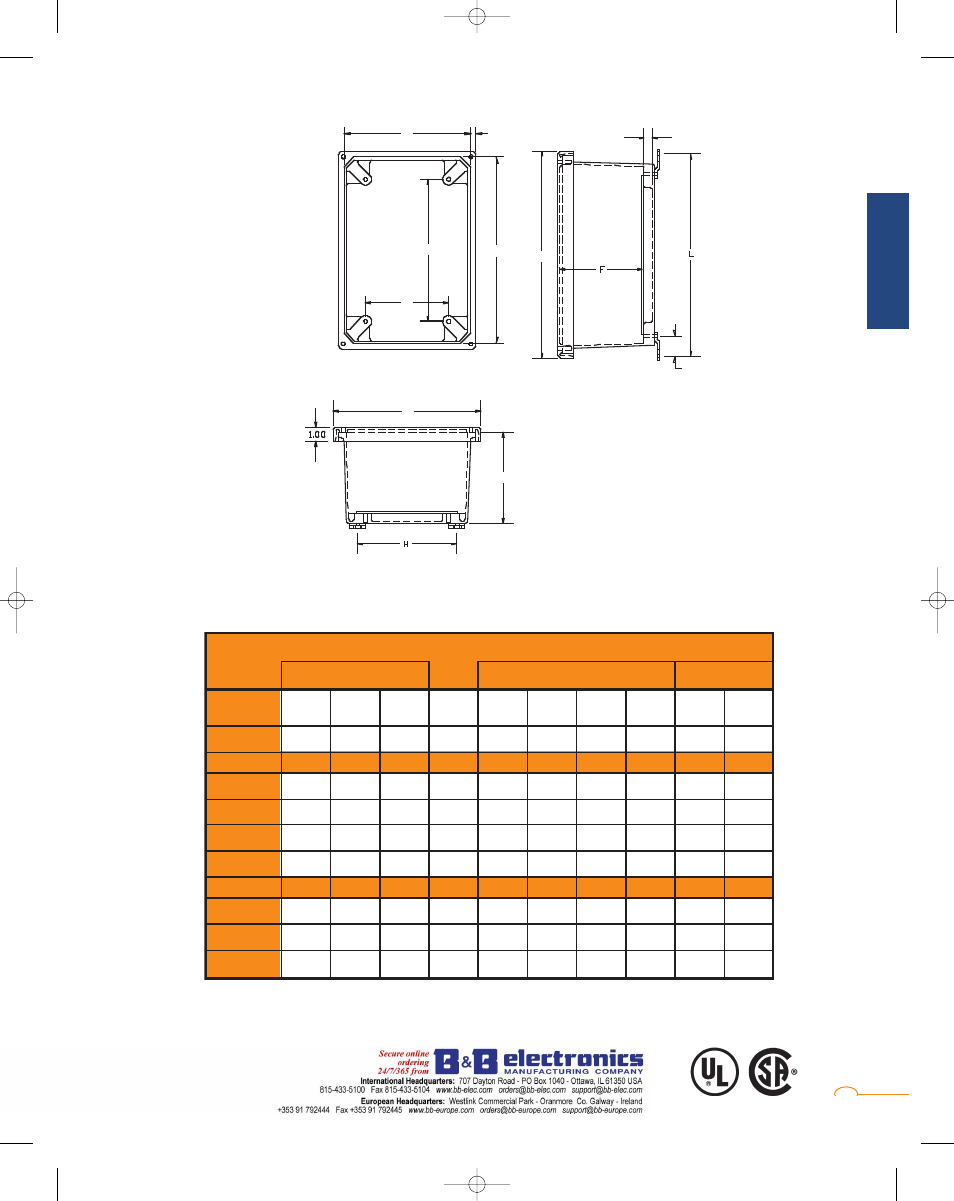

Box Size Centers Cover Dim.
Part No. A B C F H S Z L U W
AM664 6.10 6.10 4.18 3.76 5.01 4.25 4.25 7.32 7.69 7.69
AM864 8.00 6.12 4.13 3.68 5.01 6.25 4.25 9.19 9.59 7.71
AM1086 10.13 8.26 6.13 5.68 7.01 8.25 6.25 11.19 11.77 9.90
AM1206 12.13 10.26 6.13 5.68 9.01 10.25 8.25 13.19 13.77 11.90
AM1426 14.13 12.26 6.13 5.68 11.01 12.25 10.25 15.19 15.73 13.85
AM1648 16.27 14.40 8.13 7.68 13.01 14.25 12.25 17.19 17.87 15.99
AM1868 18.40 16.40 8.13 7.68 14.97 16.25 14.25 19.28 20.00 18.00
AM2068 20.00 16.00 8.13 7.68 14.54 17.81 13.81 20.84 21.59 17.59
All dimensions in inches.
Nominal 1/8" wall thickness
.47
.44
1.15
TYP.
Note: Cover removed for clarity
B
S A
U
Z
W
C
AM1084 10.14 8.26 4.13 3.68 7.01 8.25 6.25 11.19 11.77 9.90
A
M
S
E
R
I
E
S
