51

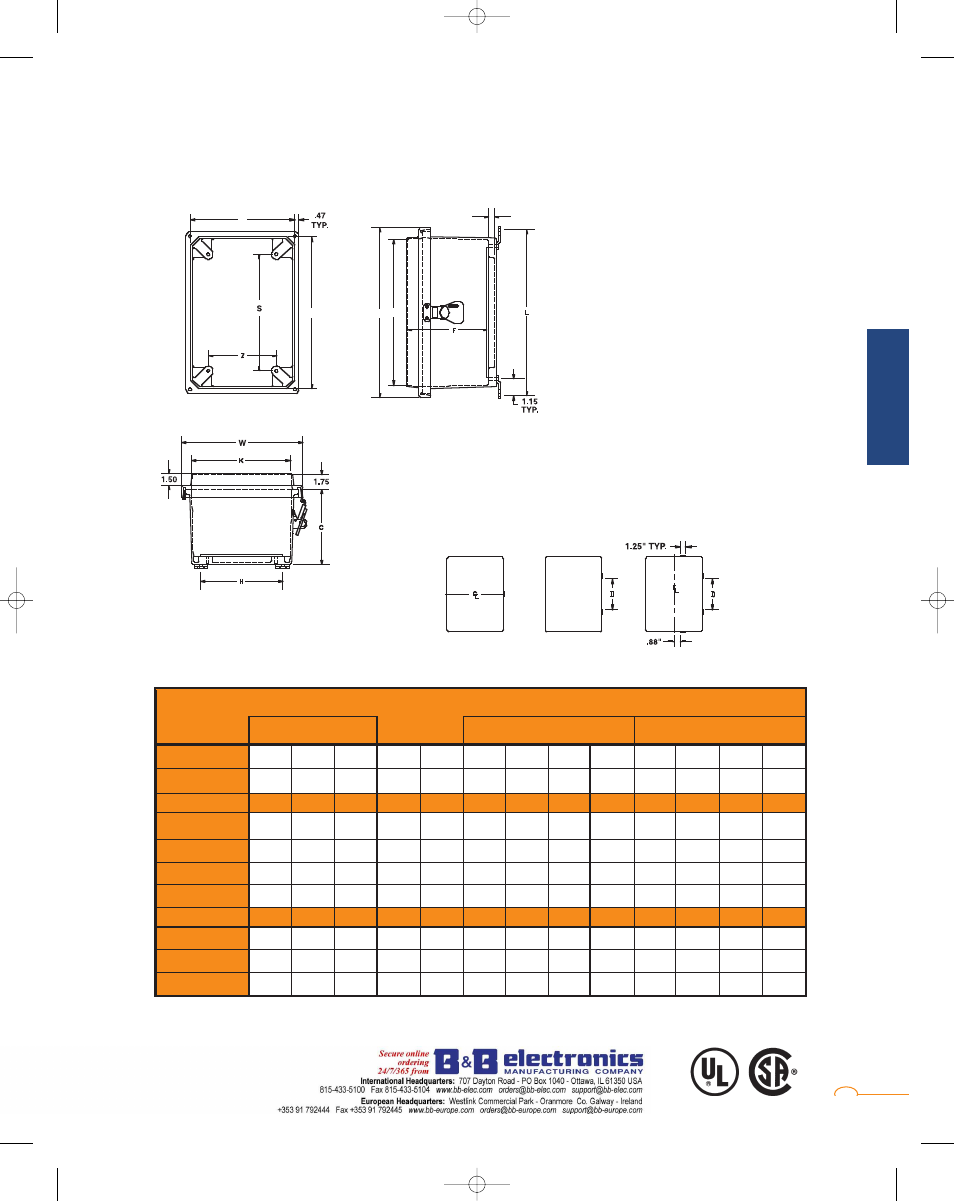

Nom. 1/8" wall thickness
Latch Locations
For use on
6x6x4
8x6x4
10x8x4 For use on
12x10x6 D=6.75
14x12x6 D=7.25
16x14x8 D=7.25 For use on
18x16x8 D= 5.25
20x16x8 D= 9.25
Box Size Centers Cover Dim.
Part No. A B C V F H S Z L K M U W
AM664RT 6.10 6.10 4.18 0.44 5.26 5.01 4.25 4.25 7.32 6.08 6.08 7.69 7.69
AM864RT 8.00 6.13 4.13 0.44 5.21 5.01 6.25 4.25 9.19 6.11 7.98 9.59 7.71
AM1086RT 10.14 8.26 6.13 0.44 7.21 7.01 8.25 6.25 11.19 8.44 10.32 11.73 9.85
AM1206RT 12.14 10.26 6.13 0.44 7.21 9.01 10.25 8.25 13.19 10.45 12.32 13.73 11.85
AM1426RT 14.13 12.26 6.13 0.44 7.21 11.01 12.25 10.25 15.19 12.45 14.32 15.73 13.85
AM1648RT 16.27 14.40 8.13 0.44 9.21 13.01 14.25 12.25 17.19 13.86 15.73 17.87 15.99
AM1868RT 18.40 16.40 8.13 0.44 9.21 14.97 16.25 14.25 19.28 15.86 17.86 20.00 18.00
AM2068RT 20.00 16.00 8.13 0.44 9.21 14.54 17.81 13.81 20.84 15.43 19.43 21.59 17.59
All dimensions in inches.
V
Note: Cover removed for clarity
B
A U M
AM1084RT 10.14 8.26 4.13 0.44 5.21 7.01 8.25 6.25 11.19 8.44 10.32 11.73 9.85
10x8x6
A
M
-
R
S
E
R
I
E
S
