39

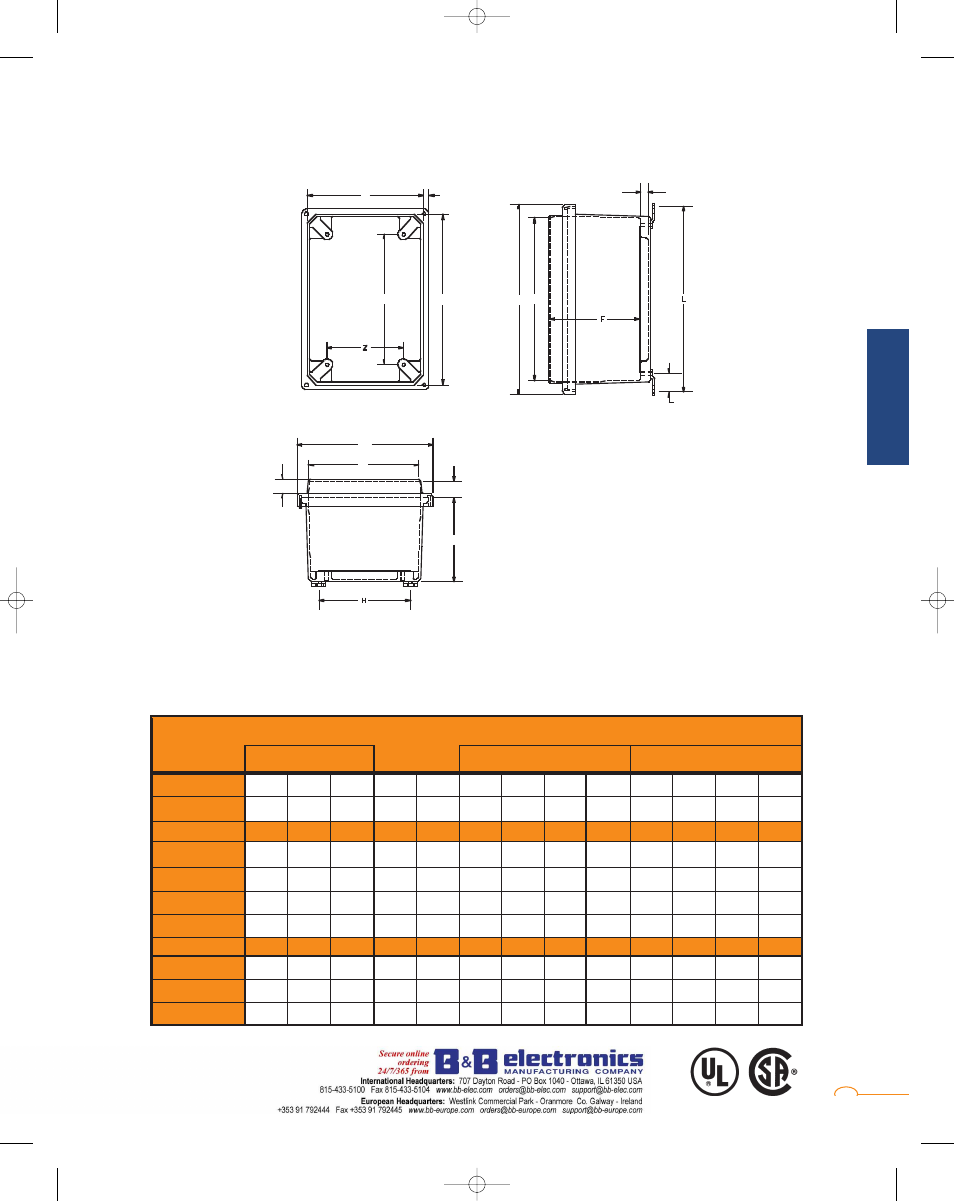

Box Size Centers Cover Dim.
Part No. A B C V F H S Z L K M U W
AM664R 6.10 6.10 4.18 0.44 5.26 5.01 4.25 4.25 7.32 6.08 6.08 7.69 7.69
AM864R 8.00 6.13 4.13 0.44 5.21 5.01 6.25 4.25 9.19 6.11 7.98 9.59 7.71
AM1086R 10.14 8.26 6.13 0.44 7.21 7.01 8.25 6.25 11.19 8.44 10.32 11.73 9.85
AM1206R 12.14 10.26 6.13 0.44 7.21 9.01 10.25 8.25 13.19 10.45 12.32 13.73 11.85
AM1426R 14.13 12.26 6.13 0.44 7.21 11.01 12.25 10.25 15.19 12.45 14.32 15.73 13.85
AM1648R 16.27 14.40 8.13 0.44 9.21 13.01 14.25 12.25 17.19 13.86 15.73 17.87 15.99
AM1868R 18.40 16.40 8.13 0.44 9.21 14.97 16.25 14.25 19.28 15.86 17.86 20.00 18.00
AM2068R 20.00 16.00 8.13 0.44 9.21 14.54 17.81 13.81 20.84 15.43 19.43 21.59 17.59
All dimensions in inches.
Nom. 1/8" wall thickness
0.47
TYP V
1.15
TYP.
S
1.75
A
Note: Cover removed for clarity
U M
B
W
K
1.50
C
AM1084R 10.14 8.26 4.13 0.44 5.21 7.01 8.25 6.25 11.19 8.44 10.32 11.73 9.85
A
M
-
R
S
E
R
I
E
S
