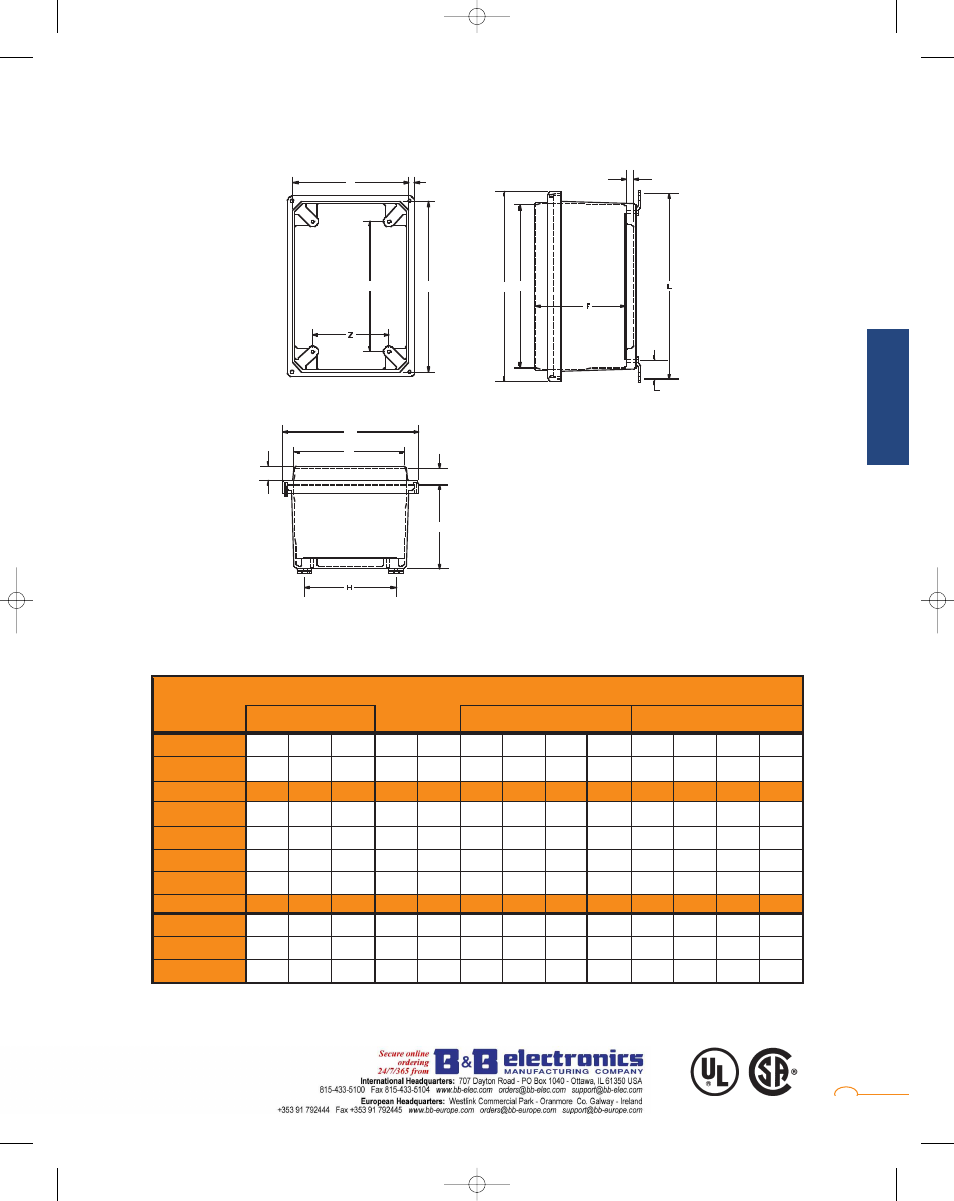

Box Size Centers Cover Dim.
Part No. A B C V F H S Z L K M U W
AM664RH 6.10 6.10 4.18 0.44 5.26 5.01 4.25 4.25 7.32 6.08 6.08 7.69 7.69
AM864RH 8.00 6.13 4.13 0.44 5.21 5.01 6.25 4.25 9.19 6.11 7.98 9.59 7.71
AM1086RH 10.14 8.26 6.13 0.44 7.21 7.01 8.25 6.25 11.19 8.44 10.32 11.73 9.85
AM1206RH 12.14 10.26 6.13 0.44 7.21 9.01 10.25 8.25 13.19 10.45 12.32 13.73 11.85
AM1426RH 14.13 12.26 6.13 0.44 7.21 11.01 12.25 10.25 15.19 12.45 14.32 15.73 13.85
AM1648RH 16.27 14.40 8.13 0.44 9.21 13.01 14.25 12.25 17.19 13.86 15.73 17.87 15.99
AM1868RH 18.40 16.40 8.13 0.44 9.21 14.97 16.25 14.25 19.28 15.86 17.86 20.00 18.00
AM2068RH 20.00 16.00 8.13 0.44 9.21 14.54 17.81 13.81 20.84 15.43 19.43 21.59 17.59
All dimensions in inches.
Nom. 1/8" wall thickness
0.47
TYP V
1.15
TYP.
S
1.75
A
Note: Cover removed for clarity
U M
B
W
K
1.50
C
AM1084RH 10.14 8.26 4.13 0.44 5.21 7.01 8.25 6.25 11.19 10.32 9.85 8.44 11.73
