4
LED Operation SFP and 1x9

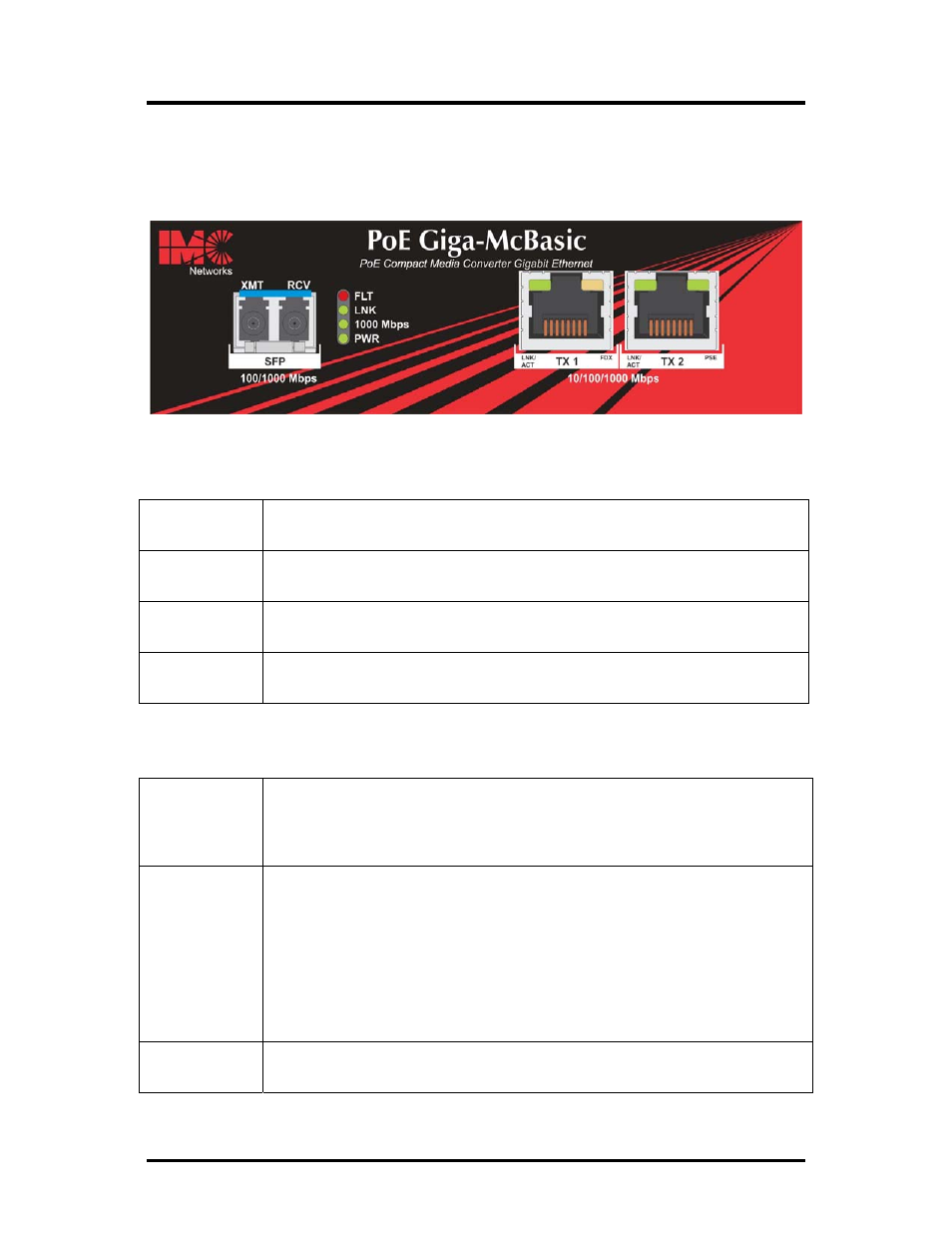

The PoE Giga-McBasic includes LEDs for three ports, as shown below:
PoE Giga-McBasic SFP
SFP LED Functions are as follows:
FLT Glows red when a fault has been detected on the unit
LNK Glows green with a valid link
1000 Mbps Glows green when SFP is running at 1000Mbps
PWR Glows green when unit is powered
RJ-45 LED Functions are as follows:
LNK/ACT
(TX1, TX2)
Glows green with a valid link
Blinks green when activity is detected
PSE
(TX2)
Glows green when port is supplying PoE power
Blinks green during training and fault conditions: a series of two
flashes indicates an over current fault; a series of five flashes indicates
invalid low or high discovery signature resistance
Off if the port is not supplying power
FDX
(TX1)
Glows amber when port is running full duplex
