10
Installation
PoE+ Giga-McBasic installs virtually anywhere: as a standalone, table-top device,
with rackmount ears or using a Wallmount bracket. The rackmount ears and
wallmount bracket are optional accessories available through IMC Networks
distributors.
Installation Tip
Several models of the PoE+ Giga-McBasic support single-strand fiber for operation. Since
single-strand fiber products use optics that transmit and receive on two different wavelengths,
single-strand fiber products must be deployed in pairs. For example, connect a PoE+ Giga-
McBasic, TX/SSLX-SM1310-SC (which has 1310 xmt and 1550 rcv) to a product which has
1550 xmt and 1310 rcv, e.g. PoE+ Giga-McBasic, TX/SSLX-SM1550-SC. The two connected
products must also have the same speed and distance capabilities (i.e. both are single-mode
[20km] or both are single/PLUS [40km]).

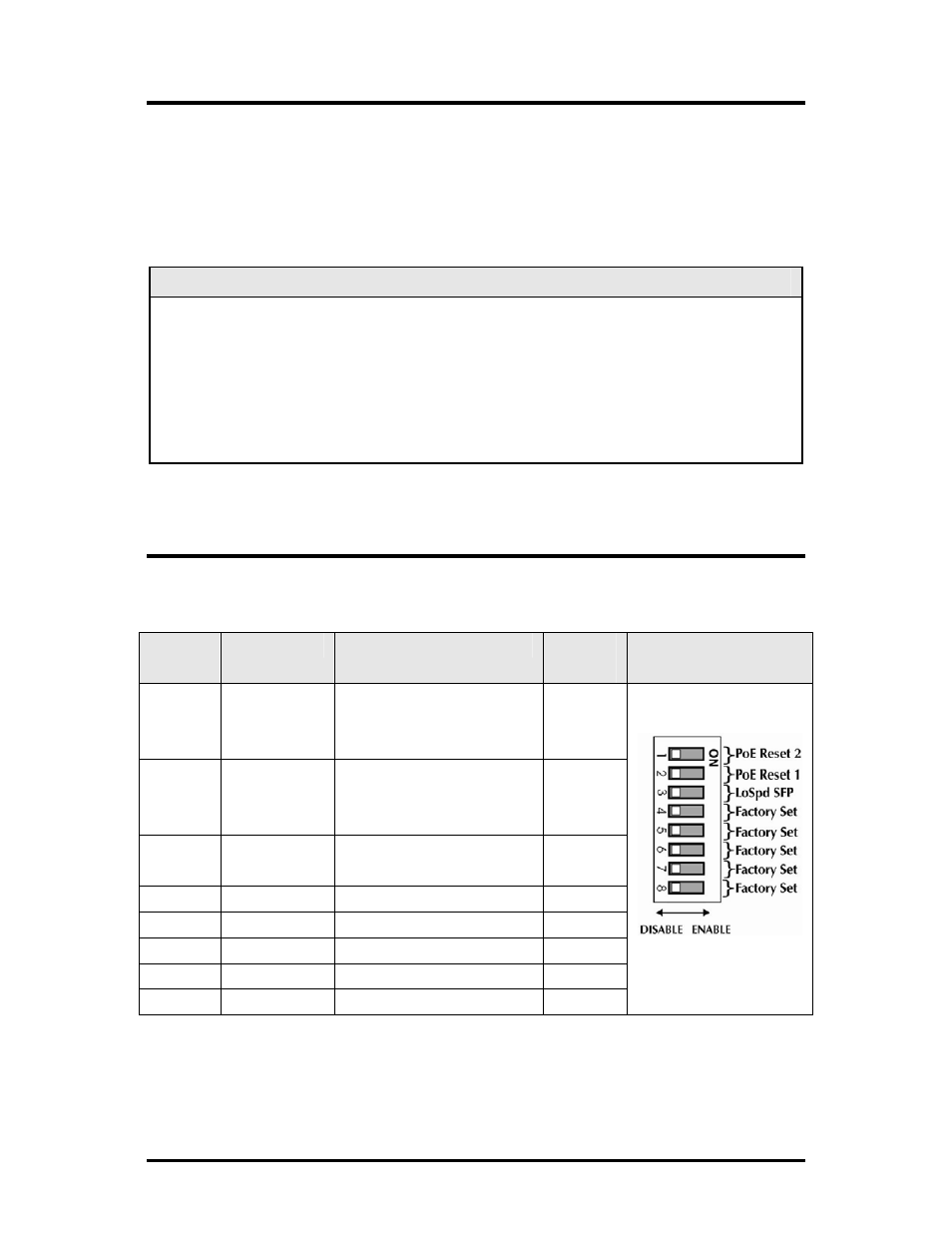

DIP Switch Configuration SFP and 1x9
PoE+ Giga-McBasic SFP
DIP
Switch
Name Definition Default
Setting
DIP Switch
1 PoE Reset 2 ON forces Port 2 PoE
OFF on LOS of Fiber
input OFF
2 PoE Reset 1 ON forces Port 1 PoE
OFF on LOS of Fiber
input
OFF
3 LoSpd SFP ON sets SFP for low
speed operation OFF
4 Factory Set Do not change OFF
5 Factory Set Do not change OFF
6 Factory Set Do not change OFF
7 Factory Set Do not change OFF
8 Factory Set Do not change OFF
LoSPd DSW for PoE+ Giga-McBasic
The DIP Switch for LoSPd is to allow the end user to set a speed for a fiber SFP under
the following conditions:
