3
PoE Reset DSW
When set to ON, it will force the PSE output power on the copper port OFF when
the LINK state is lost on the SFP line (copper or fiber SFP). By default, the DSW is
set to OFF.

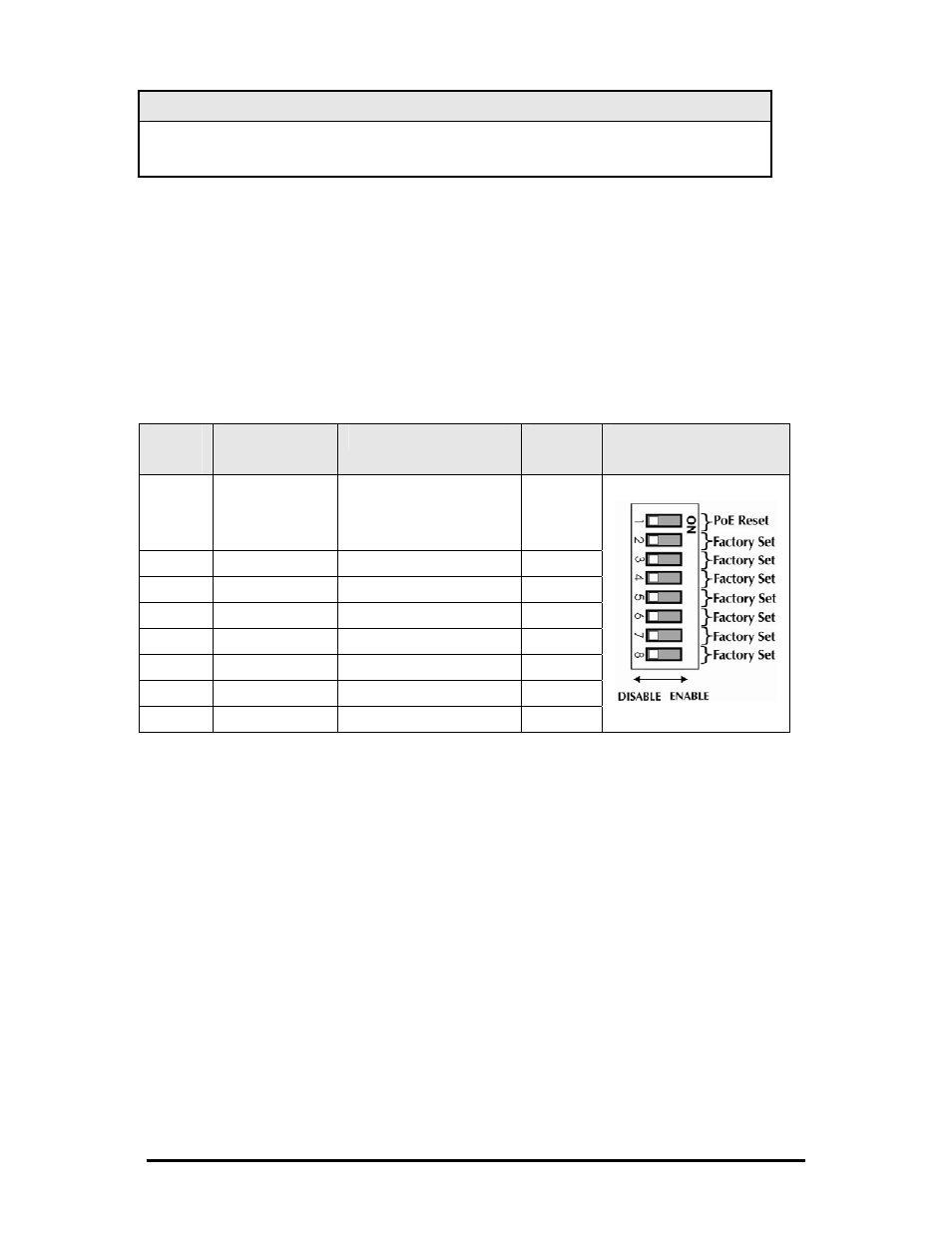

PoE Giga-McBasic 1x9
DIP
Switch
Name Description Default
Setting
DIP Switch
1 PoE Reset ON forces Port 2,
PSE/PoE, to OFF on
LOS of Fiber input
OFF
2 Factory Set Do not change OFF
3 Factory Set Do not change OFF
4 Factory Set Do not change OFF
5 Factory Set Do not change OFF
6 Factory Set Do not change OFF
7 Factory Set Do not change OFF
8 Factory Set Do not change OFF
PoE Reset DSW
When set to ON, it will force the PSE output power on the copper port OFF when
the LINK state is lost on the fiber segment. By default, the DSW is set to OFF.
NOTE
Under no conditions will the LoSPd DSW impact any copper SFPs. Some 1000Mbps SFPs
may not function properly when forced to 100Mbps.
