Rainbow Electronics C192 Series User Manual

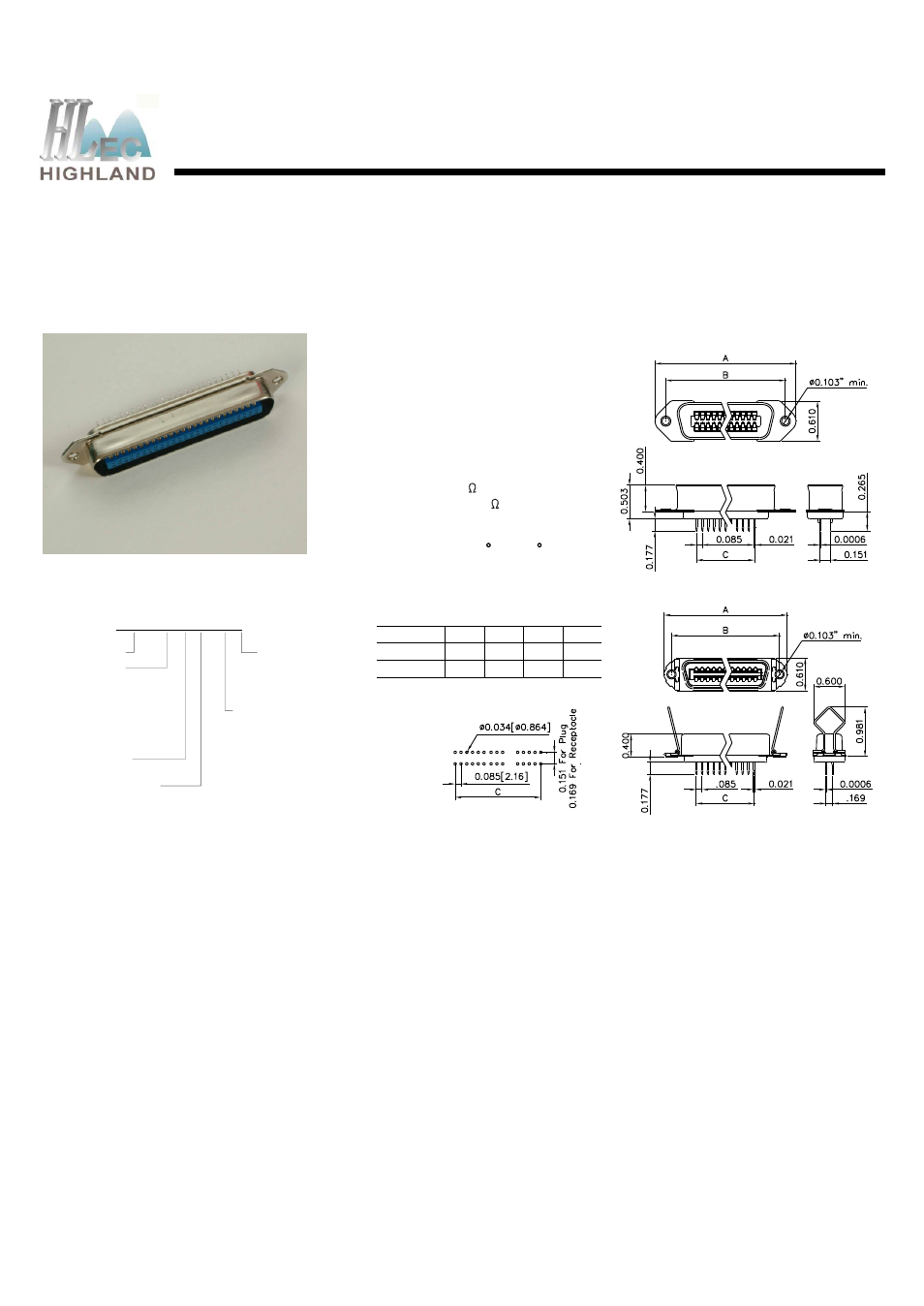

C193 series, C192 series, Centronic connectors, right angle, pcb mounting

25
Recommended PCB Layout
<
Dimensional Unit: inch
Specifications:
Contact Resistance: 30m @ 100mA DC
Insulator Resistance: 5000M min. @ 500V DC
Current Rating: 5AMP
Voltage: 1000V AC For 1 minute
Operating Temperature: -55 C~+105 C
Contact: Phosphor Bronze, Stamped
Housing: PBT(30
% Glass Fiber), UL94V-0
Shell: Steel, Zinc Plated or Tinned
C193 Series
Centronic Connectors, Right Angle,
PCB Mounting
50
36
Positions
51.84
36.72
C
59.74
67.74
74.85
82.85
B
A
Specifications:
Contact Resistance: 30m @ 100mA DC
Insulator Resistance: 5000M min. @ 500V DC
Current Rating: 5AMP
Voltage: 1000V AC For 1 minute
Operating Temperature: -55 C~+105 C
Contact: Phosphor Bronze, Stamped
Housing: PBT(30
% Glass Fiber), UL94V-0
Shell: Steel, Zinc Plated or Tinned
PCB Thickness: 0.060~0.120 inch
C192 Series
Centronic Connectors,
PCB Mounting
C192 - 20 50 0 - 0G B
Ordering Information
36,50
Alternation Code
(Meaningless)
10 -
Male (Plug)
20 -
Female (Receptacle)
W/O Latches
40 -
Female (Receptacle)
Latches
No. of Pins:
Series No.
Gender:
0G - Gold Flash
05 - 5u" Selective Gold
10 - 10u" Selective Gold
15 - 15u" Selective Gold
30 - 30u" Selective Gold
Contact Plating:
Insulator Color:
B - Blue
K - Black
G - Gray
50
36
Positions
2.040
1.445
C
2.152
2.660
2.947
3.260
B
A
2.470
1.876
D
