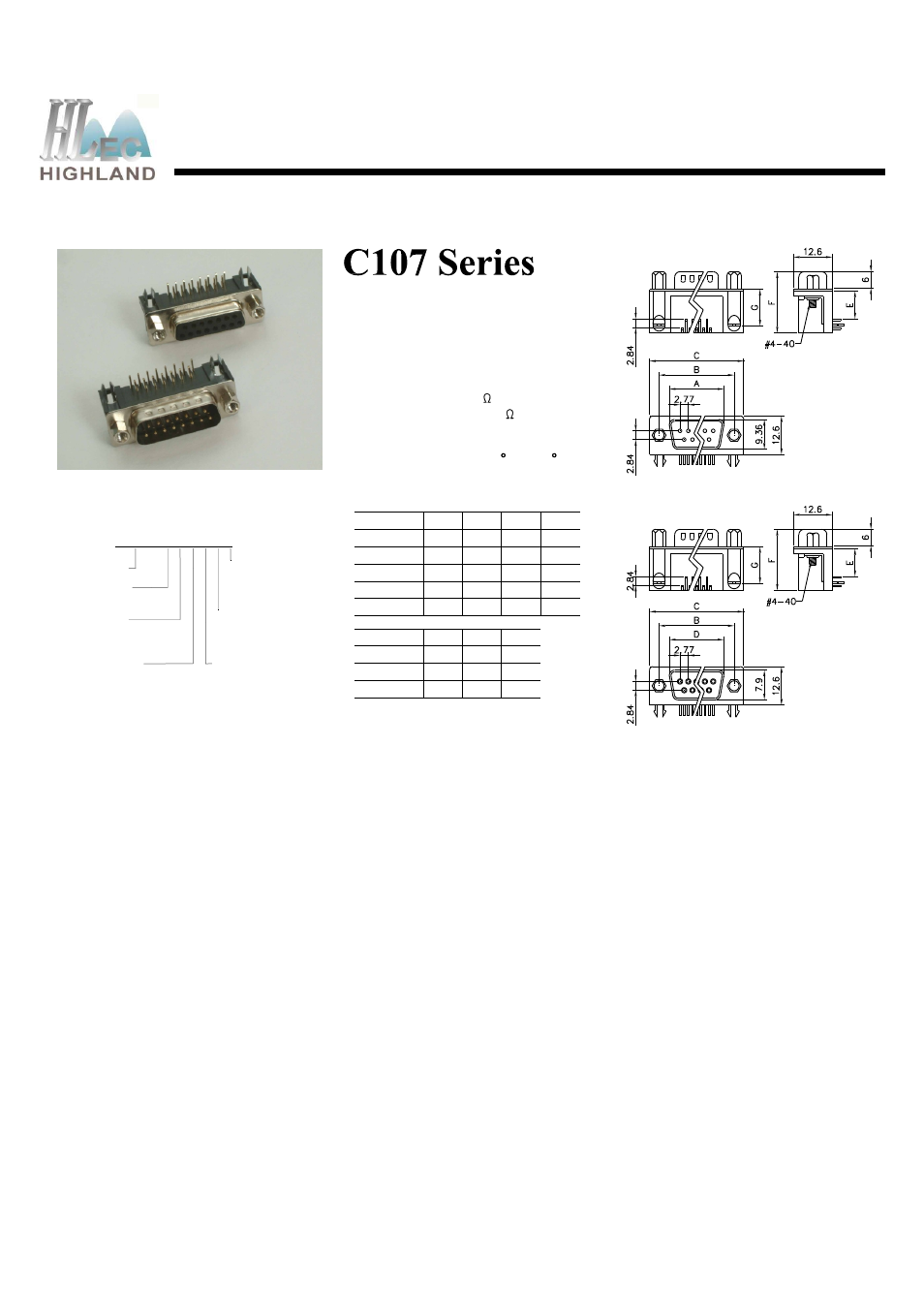

Rainbow Electronics C107 Series - Manual

Specifications:
Contact Resistance: 30m @ 100mA DC
Insulator Resistance: 1000M min. @ 500V DC
Current Rating: 5AMP
Voltage: 1000V AC For 1 minute
Operating Temperature: -55 C~+105 C
Contact: Brass or Phosphor Bronze, Stamped
Housing: PBT, UL94V-0
0 - #4-40, W/O Rivet
1 - #4-40, Rivet
Screw Type:
Insulator Colour:
09,15,25,37,50
C - Chromeplated
T - Tinned
M - Male
F - Female
Shell Plating:
Gender:
B - Blue
K - Black
W- White
C107 - 25 F T B 0 1
Ordering Information
Series No.
No. of Pins:
D-Sub Right Angle Type
1 - 7.2mm Footprint
2 - 9.4mm Footprint
3 - 13.84mm Footprint
Footprint
1
E
7.2
13.84
9.4
F G
18.40 9.62
25.30 16.50
20.64 12.06 2
A
39.94
26.15
17.78
25
Positions
15
09
47.04 53.04
39.24
31.04
B
33.32
24.99
D C
38.66
24.66
16.33
69.62 63.50 56.56 37 54.84
3
66.90 52.86 50 61.11 52.34
