ATV2500B(Q)(L)
5

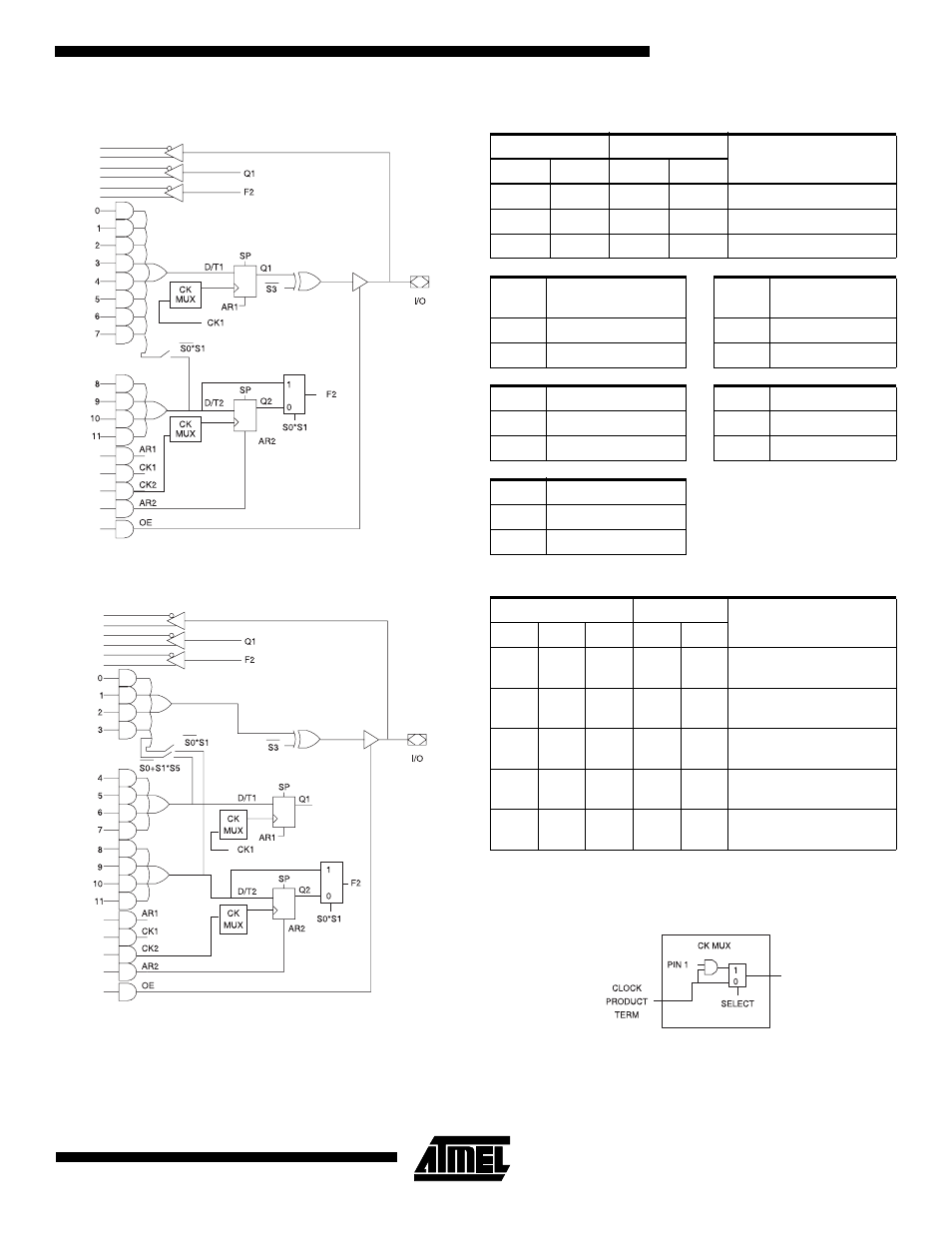

Output Logic, Registered
(1)
Output Logic, Combinatiorial
(1)
Note: 1. These diagrams show equivalent logic functions, not
necessarily the actual circuit implementation.
Note: 1. These four terms are shared with D/T1.
Clock Option
S2 = 0 Terms in
Output Configuration S1 S0 D/T1 D/T2
0 0 8 4 Registered (Q1); Q2 FB
1 0 12 4 (1) Registered (Q1); Q2 FB
1 1 8 4 Registered (Q1); D/T2 FB
S3
Output
Configuration
S6 Q1 CLOCK
0 Active Low 0 CK1
1 Active High 1 CK1 • PIN1
S4 Register 1 Type S7 Q2 CLOCK
0 D 0 CK2
1 T 1 CK2 • PIN1
S5 Register 2 Type
0 D
1 T
S2 = 1 Terms in
Output Configuration S5 S1 S0 D/T1 D/T2
X 0 0 4 (1) 4
Combinatorial (8 Terms);
Q2 FB
X 0 1 4 4
Combinatorial (4 Terms);
Q2 FB
X 1 0 4 (1) 4 (1)
Combinatorial (12 Terms);
Q2 FB
1 1 1 4 (1) 4
Combinatorial (8 Terms);
D/T2 FB
0 1 1 4 4
Combinatorial (4 Terms);
D/T2 FB
