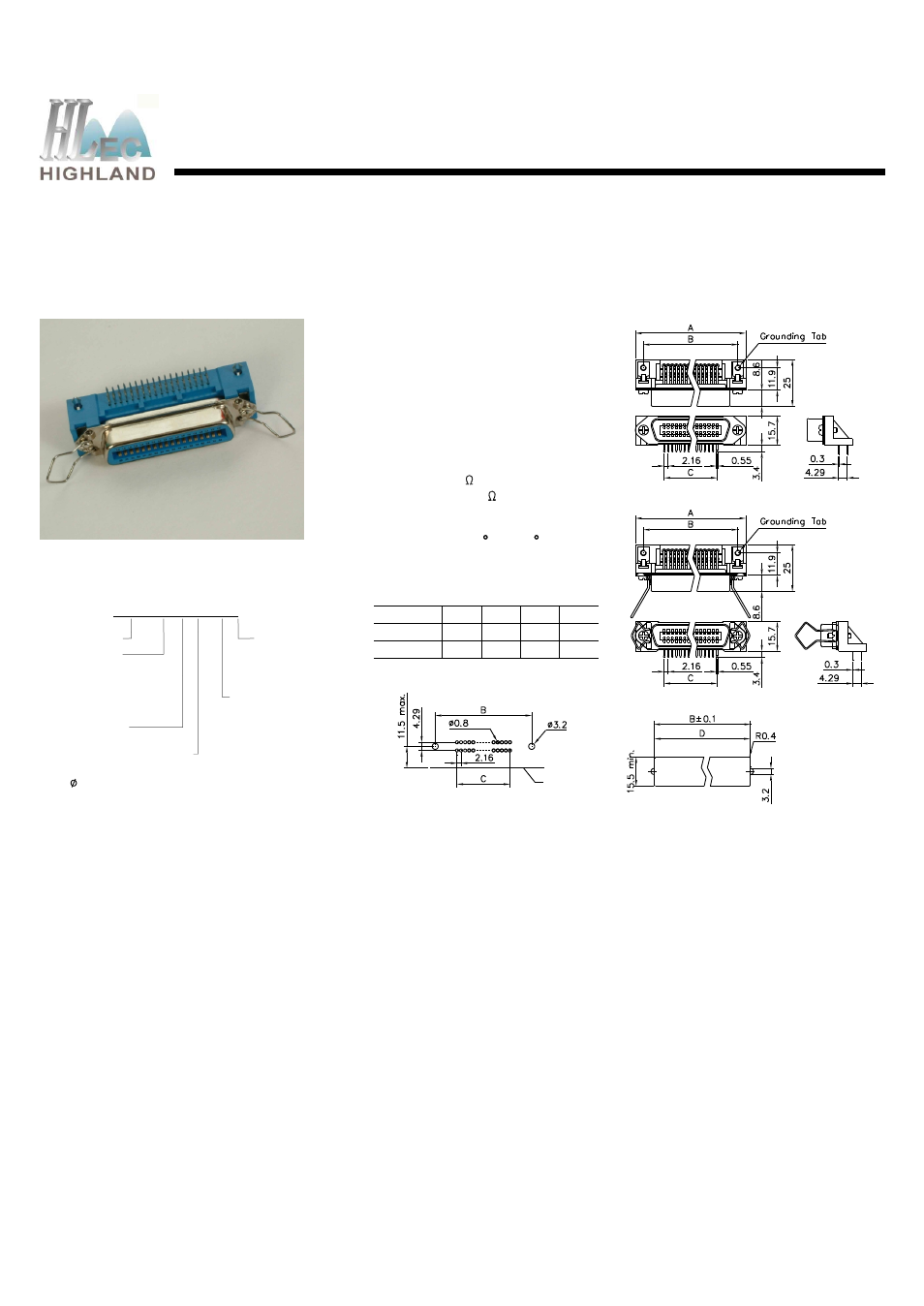

Rainbow Electronics C193 Series User Manual
C193 series, Centronic connectors, right angle, pcb mounting
Dimensional Unit: inch
Specifications:
Contact Resistance: 30m @ 100mA DC
Insulator Resistance: 5000M min. @ 500V DC
Current Rating: 5AMP
Voltage: 1000V AC For 1 minute
Operating Temperature: -55 C~+105 C
Contact: Phosphor Bronze, Stamped
Housing: PBT(30
% Glass Fiber), UL94V-0
Shell: Steel, Zinc Plated or Tinned
C193 Series
Centronic Connectors, Right Angle,
PCB Mounting
50
36
Positions
51.84
36.72
C
59.74
67.74
74.85
82.85
B
A
min.
PCB Layout
Panel Cutout
PCB Edge
Specifications:
Contact Resistance: 30m @ 100mA DC
Insulator Resistance: 5000M min. @ 500V DC
Current Rating: 5AMP
Voltage: 1000V AC For 1 minute
Operating Temperature: -55 C~+105 C
Contact: Phosphor Bronze, Stamped
Housing: PBT(30
% Glass Fiber), UL94V-0
Shell: Steel, Zinc Plated or Tinned
C193 Series
Centronic Connectors, Right Angle,
PCB Mounting
50
36
Positions
51.84
36.72
C
59.74
67.74
74.85
82.85
B
A
74.40
59.20
D
0G - Gold Flash
05 - 5u" Selective Gold
10 - 10u" Selective Gold
15 - 15u" Selective Gold
30 - 30u" Selective Gold
C193 - 40 50 0 - 0G B
Ordering Information
Series No.
No. of Pins:
20 -
Female (Receptacle)
W/O Latches
40 -
Female (Receptacle)
Latches
Gender:
36,50
Insulator Color:
Contact Plating:
B - Blue
K - Black
G - Gray
Stlye of Grounding Tab :
0 - #4-40
1 - 3.2
2 -
Boardlock
