TSM1N45
450V N-Channel Power MOSFET
8/9 Version: C09

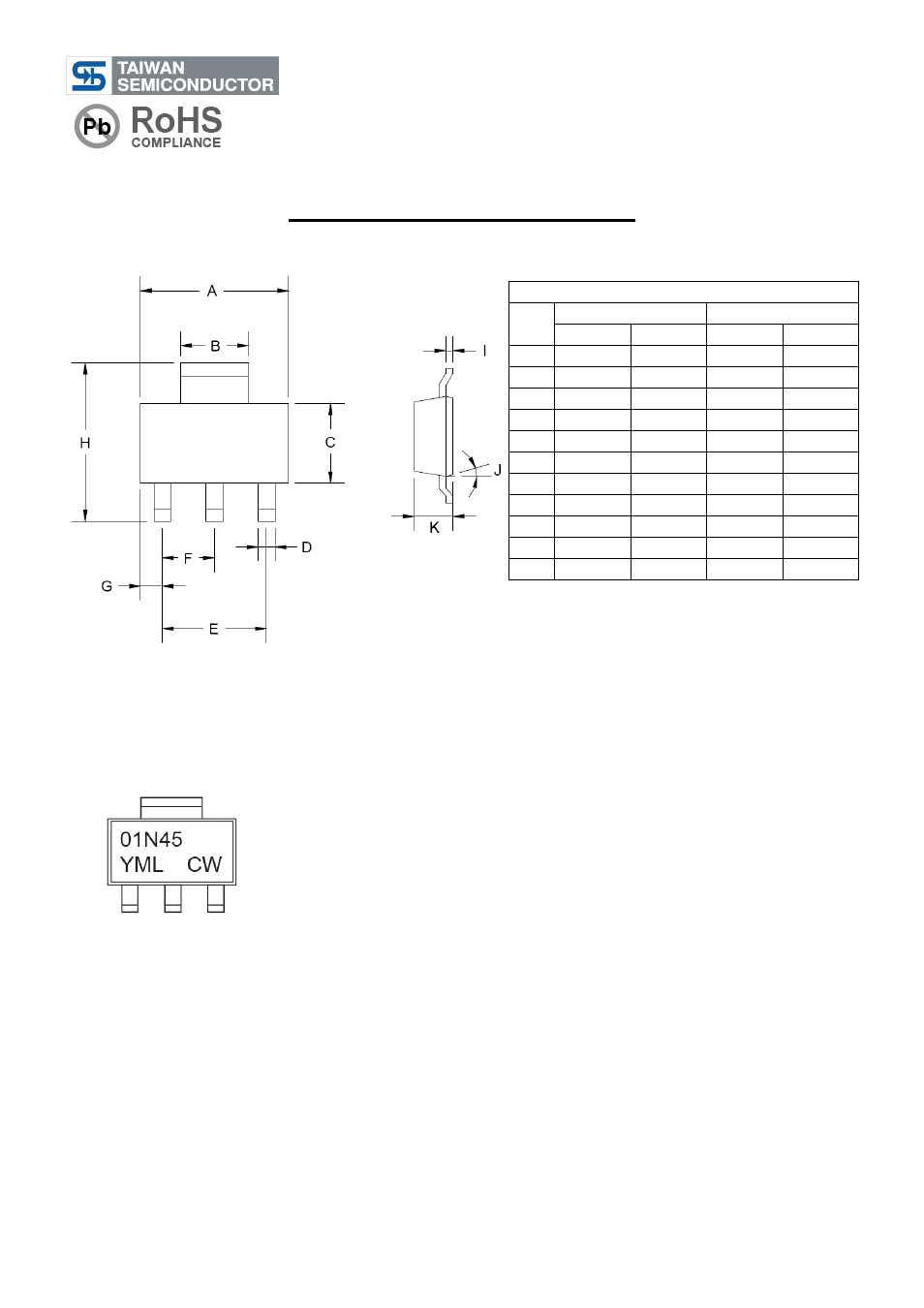

SOT-223 Mechanical Drawing
Marking Diagram
Y = Year Code
M = Month Code
(A=Jan, B=Feb, C=Mar, D=Apl, E=May, F=Jun, G=Jul, H=Aug, I=Sep,
J=Oct, K=Nov, L=Dec)
L = Lot Code
SOT-223 DIMENSION
DIM
MILLIMETERS INCHES
MIN MAX MIN MAX
A 6.350 6.850 0.250 0.270
B 2.900 3.100 0.114 0.122
C 3.450 3.750 0.136 0.148
D 0.595 0.635 0.023 0.025
E 4.550 4.650 0.179 0.183
F 2.250 2.350 0.088 0.093
G 0.835 1.035 0.032 0.041
H 6.700 7.300 0.263 0.287
I 0.250 0.355 0.010 0.014
J 10 ° 16 ° 10 ° 16 °
K 1.550 1.800 0.061 0.071
