TH7899M

2201A–IMAGE–02/02

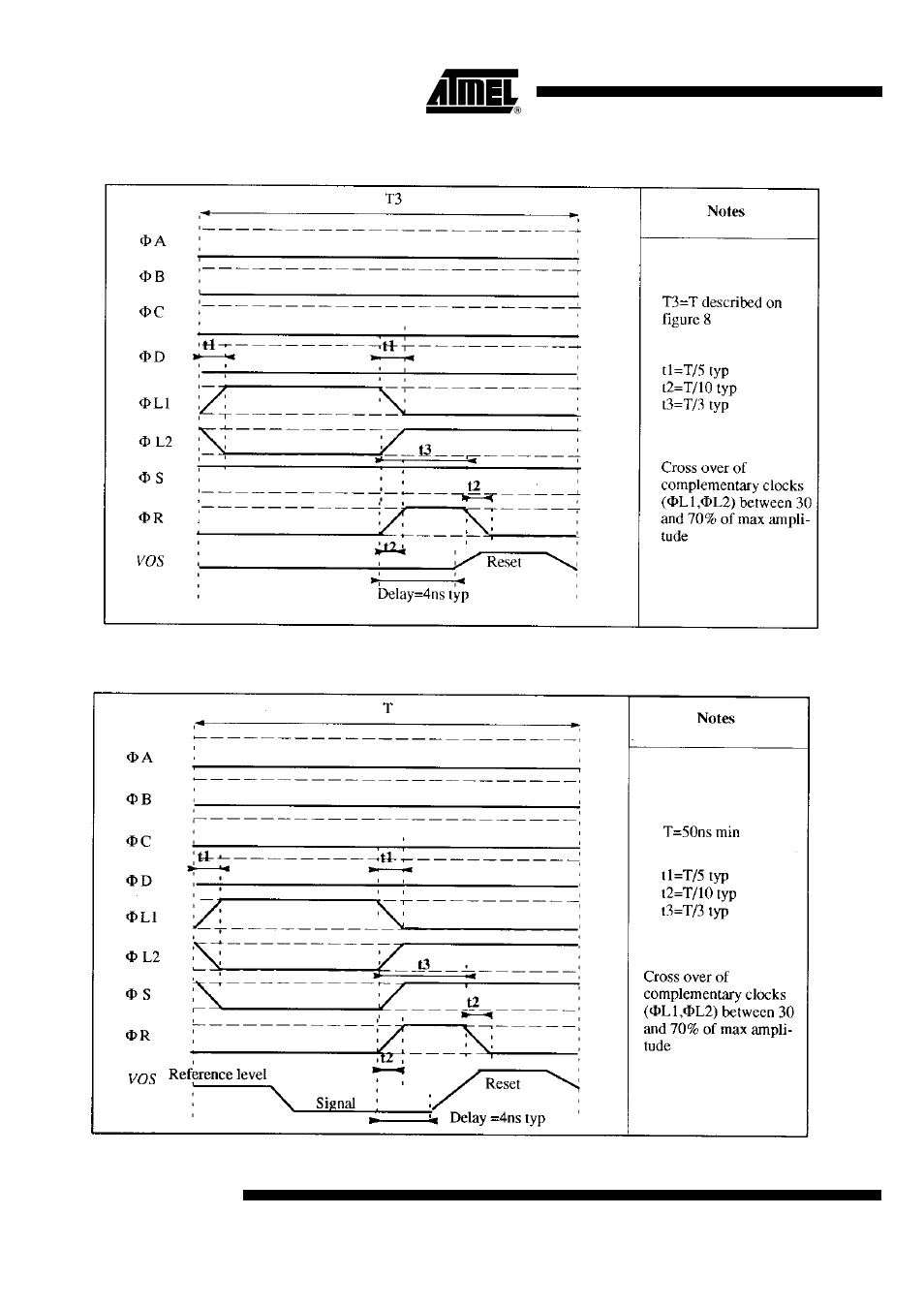

Figure 8. Horizontal Pixel Summation on

Φ

S Gate (Two Adjacent Pixel Summation)

Figure 9. Horizontal Transfer Period and Readout
