Rainbow Electronics TH7814A User Manual
Features, Pin identification
1
Features
•
Data Rate up to 50 MHz (2 Outputs at 25 MHz Each)
•
Pixel Size: 10 µm x 10 µm (10 µm Pitch)
•
300 to 1100 nm Spectral Range
•
High Sensitivity and Lag-free Photodiodes
•
Very Low Noise (30 pJ/cm
2
Noise Equivalent Illumination)
•
Antiblooming
•
Exposure Control
•
20-lead 0.4" DIL Package
•
Electrical, Mechanical and Optical Compatibility Between the Two Products
The TH7813 and TH7814 linear arrays are based on Atmel’s most recent know-how in
terms of design and technology. Flexibility and performance of these devices give the
opportunity to use them in most vision systems for industrial applications (web inspec-
tion, process control, sorting and inspection of various parts), document scanning up
to 200 dpi, metrology, etc.

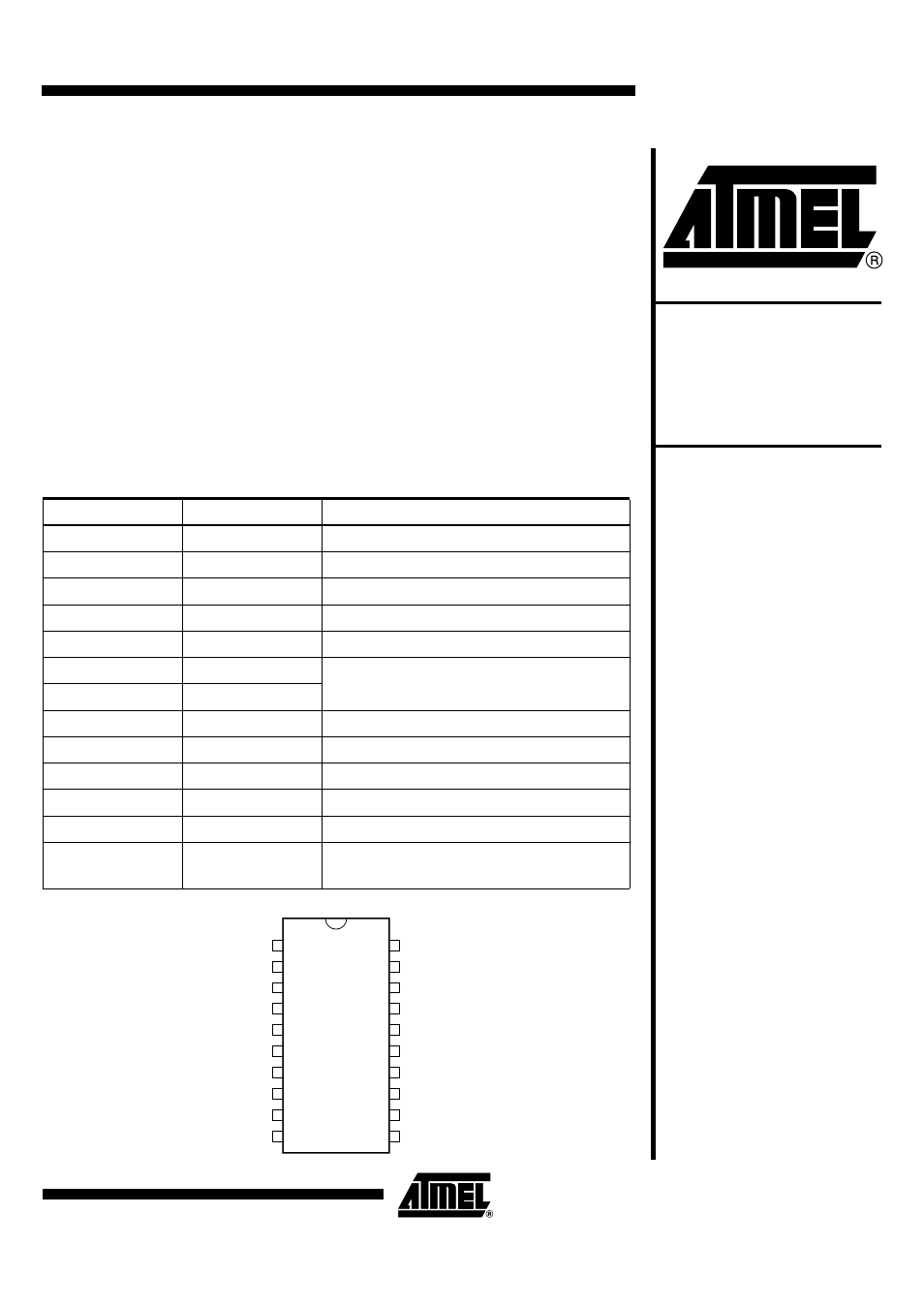

Pin Identification
All pins must be connected
Pin Number
Symbol
Function
4, 17
VDD1,2
Output Amplifiers Drain Supply
3, 18
VOS1,2
Video Outputs
5
VS
Output Amplifiers Substrate Bias
20
VDR
Reset Drain Supply
2
VGS
Output Gate Bias
14
Φ
L1
Readout Register Clocks
13
Φ
L2
15
Φ
R
Reset Clock
10
Φ
A
Antiblooming Gate Bias/Clock
7
VA
Antiblooming Drain Bias
8
VST
Storage Gate Bias
11
Φ
P
Transfer Gate Clock
1, 6, 9, 12, 16, 19
VSS
Ground, Optical Shield Grounding
(Internally Connected)
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
VSS
VGS
VOS1
VDD1
VS
VSS
VA
VST
VSS
Φ
A
VDR
VSS
VOS2
VDD2
VSS
Φ
R
Φ
L1
Φ
L2
VSS
Φ
P
TH7813A
TH7814A
50 MHz
1024/2048
Linear CCDs
TH7813A
TH7814A
Rev. 1990A–IMAGE–05/02
