Features
• Pixel Size: 13 µm x 13 µm (13 µm pitch)
• High Data Output Rate: 20 MHz typ
• High Responsivity and Resolution over a Wide Spectral Range: from Blue (400 nm) up
to Near Infrared (1100 nm)
• Improved Dark Signal and Photo Response Uniformity
• Low Temporal Noise and High Dynamic Range: Over 6000/1
• Ease and Flexibility of Operation:
– Only two External Basic Drive Clocks
– Internal or External Sample and Reset Clocks
• 24-lead DIL Package

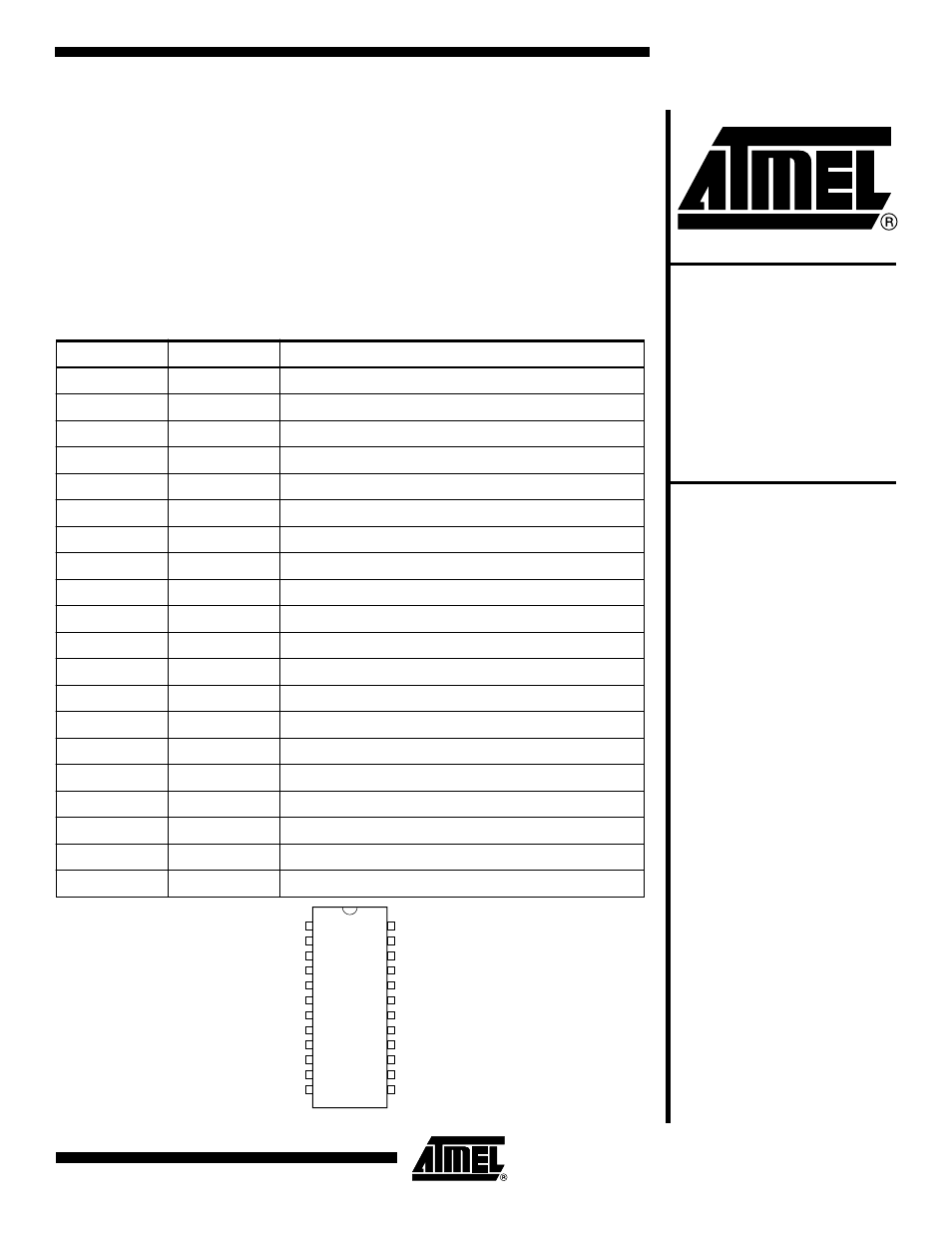

Pin Identification
Pin Number Symbol Designation
1 V
OSA
Video Output Signal A (Odd Channel)
2 Φ
ECHA
A Channel Sample-and-hold Gate Input
3 S Φ
ECHA
A Channel Internal Sample Clock-output
4 Φ
RA
A Channel External Reset Clock Input
8 V
DD
Output Amplifier Drain And Internal Logic Supply
9 TP3 Test Point 3
10 TP2 Test Point 2
11 VT Register And Photosensitive Zone DC Bias
12 TP1 Test Point 1
13 V
SS
Substrate Bias (Ground)
15 Φ
P
Transfer Clock
16 Φ
T
Register Transport Clock
17 V
GS
Output Gate DC Bias
18 Φ
RB
B Channel External Reset Clock Input
19 V
INH
Internal Sample Clock Inhibition
21 S Φ
ECHB
B Channel Internal Sample Clock Input
22 Φ
ECHB
B Channel Sample-and-hold Gate Input
23 V
OSB
Video Output Signal B (Even Channel)
24 V
DR
Reset DC Bias
5, 6, 7, 14, 20 DNC Do Not Connected
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
VOSA
ECHA
S ECHA
RA
DNC
DNC
DNC
VDD
TP3
TP2
VT
TP1
VDR
VOSB
ECHB
S ECHB
DNC
VINH
RB
VGS
T
P
DNC
VSS
TH7804A
Linear Charged
Couple Device
(CCD) Image
Sensor 1024
Pixels
TH7804A
Rev. 1989A–IMAGE–05/02
