TSM10N06
60V N-Channel MOSFET
5/6 Version: A10

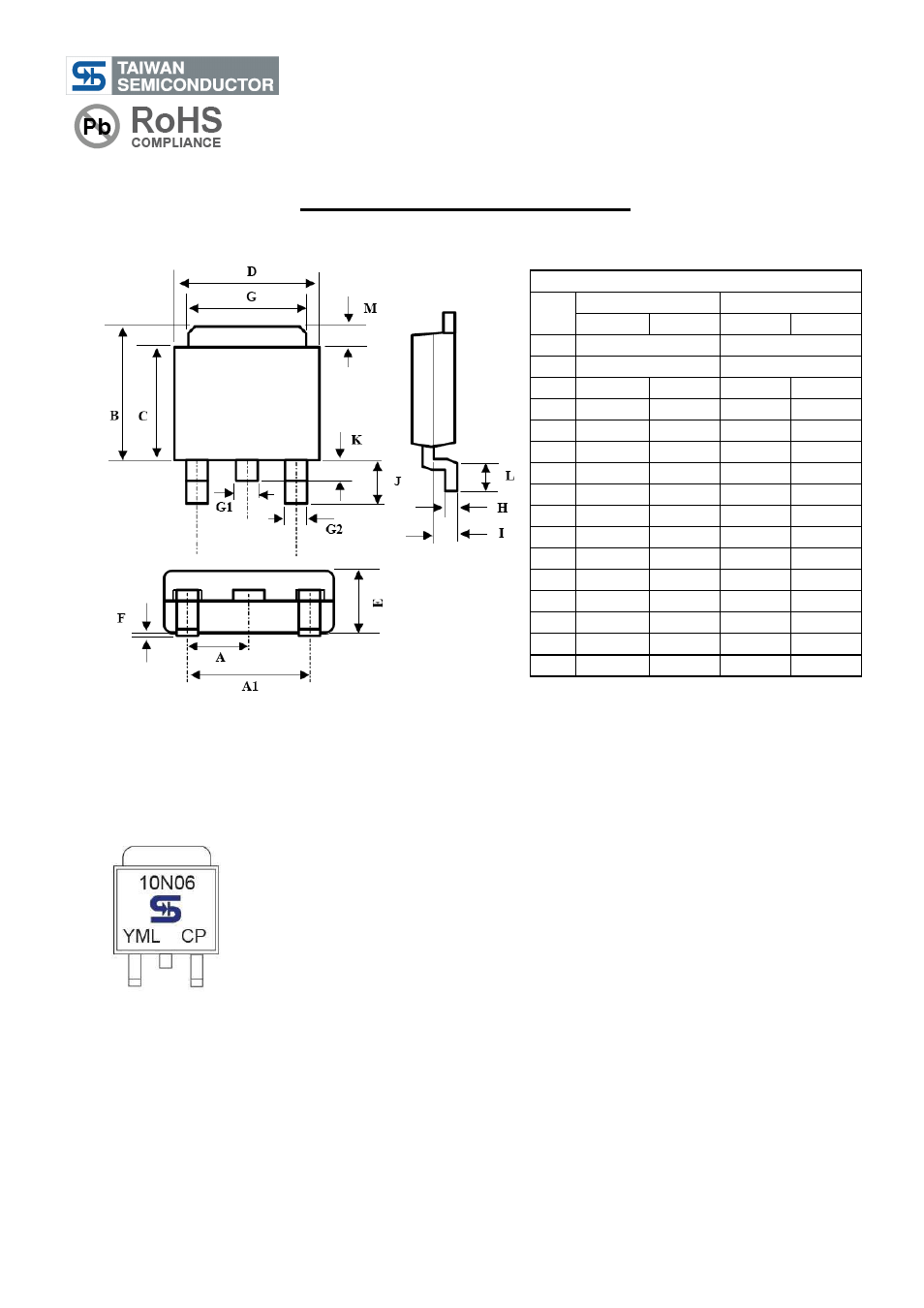

TO-252 Mechanical Drawing
Marking Diagram
Y = Year Code
M = Month Code
(A=Jan, B=Feb, C=Mar, D=Apl, E=May, F=Jun, G=Jul, H=Aug, I=Sep,
J=Oct, K=Nov, L=Dec)
L = Lot Code
TO-252 DIMENSION
DIM
MILLIMETERS INCHES
MIN MAX MIN MAX
A 2.3BSC 0.09BSC
A1 4.6BSC 0.18BSC
B 6.80 7.20 0.268 0.283
C 5.40 5.60 0.213 0.220
D 6.40 6.65 0.252 0.262
E 2.20 2.40 0.087 0.094
F 0.00 0.20 0.000 0.008
G 5.20 5.40 0.205 0.213
G1 0.61 0.78 0.024 0.030
G2 0.51 0.71 0.020 0.028
H 0.35 0.65 0.014 0.026
I 0.90 1.50 0.035 0.059
J 2.20 2.80 0.087 0.110
K 0.50 1.10 0.020 0.043
L 0.90 1.50 0.035 0.059
M 1.30 1.70 0.051 0.67
