3

Troubleshooting

3-22

9341 PRODUCT MANUAL

9341-OM (V4.1)

Access Card Info panes for specific cards by clicking the card slot position in
the Card Access/Navigation Tree pane (as shown in the example in Figure
3-6).

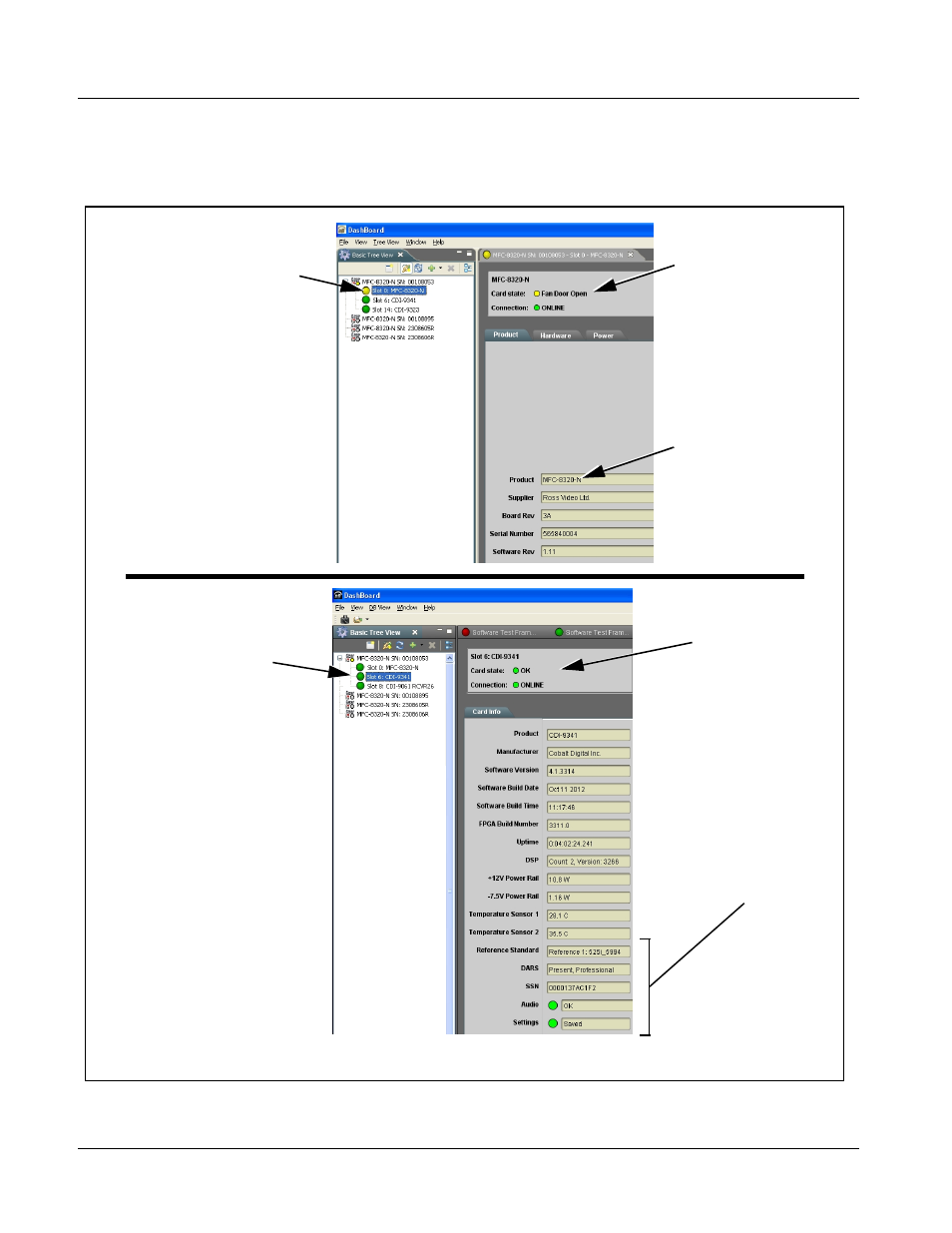

Figure 3-6 Selecting Specific Cards for Card Info Status Display

By clicking on “Slot 0: MFC-8320-N”
in this example, Card Info is
displayed for frame Network
Controller Card

Status for selected card is
shown here (in this
example, connection OK
and “Fan Door Open”
alert)

Card general information
is displayed in lower
portion of Card Info pane

By clicking on “Slot 6:
CDI-9341” in this example,
Card Info is shown for 9341
card in slot 6

Status for selected
card is shown here
(in this example, all
indications are OK)

Where applicable,
additional status is
displayed (as shown in
this example)
