9341-OM (V4.1)

9341 PRODUCT MANUAL

3-3

Operating Instructions

Control and Display Descriptions

DashBoard™ User Interface

(See Figure 3-2.) The 9341 function submenus are organized in DashBoard™
using tabs. When a tab is selected, each parametric control or selection list
item associated with the function is displayed. Scalar (numeric) parametric
values can then be adjusted as desired using the GUI slider controls. Items in
a list can then be selected using GUI drop-down lists. (In this manner, the
setting effected using controls and selection lists displayed in DashBoard™
are comparable to the submenu items accessed and committed using the 9341
card edge controls.)

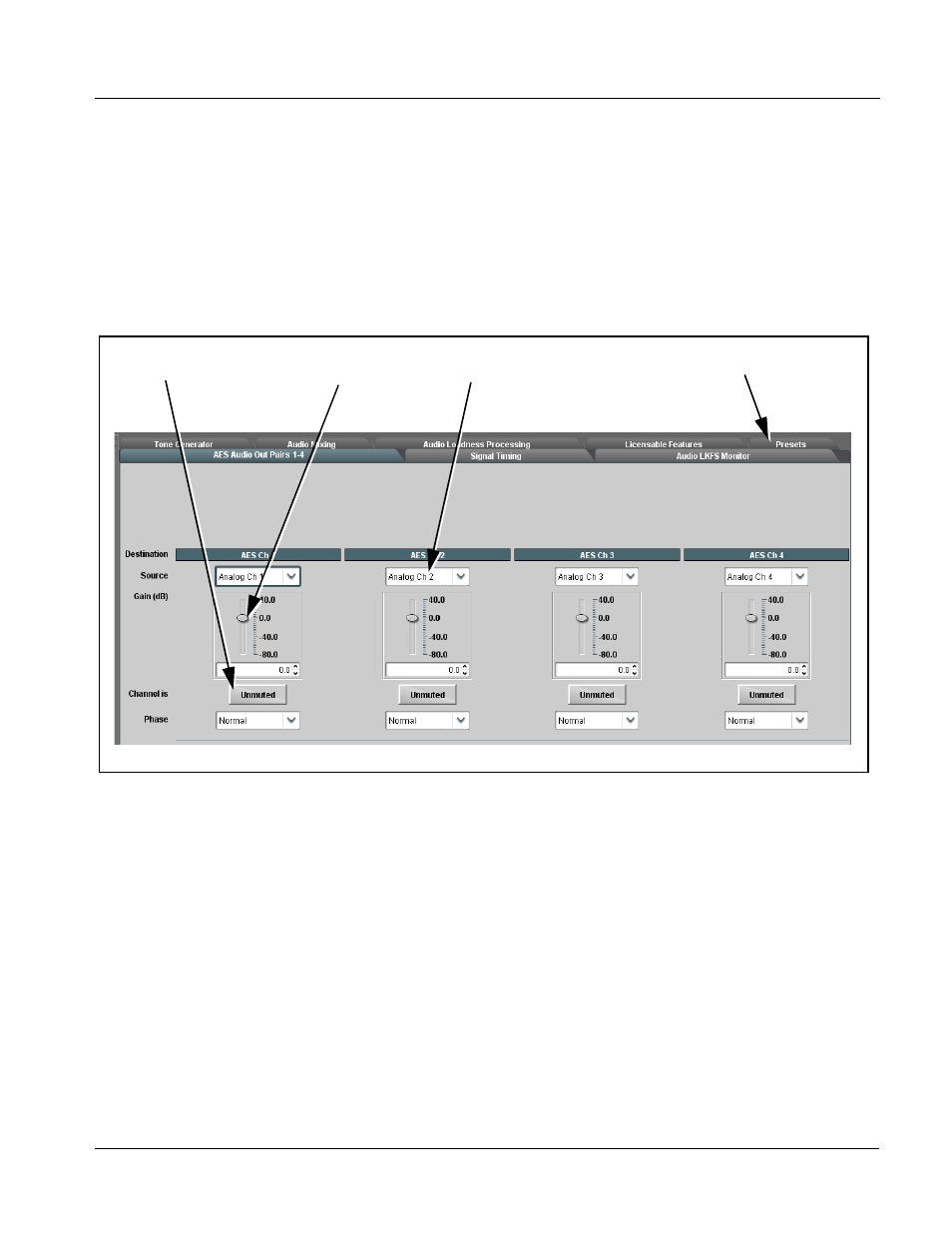

Figure 3-2 Typical DashBoard Tabs and Controls

DashBoard Tabs

Typical Parametric
Control

Typical On/Off
Control

Typical Selection
List
