Page 15

9341-OM (V4.1)
9341 PRODUCT MANUAL
1-11
Introduction
9341 Functional Description
User Control Interface
Figure 1-5 shows the user control interface options for the 9341. These
options are individually described below.
Note:
All user control interfaces described here are cross-compatible and can oper-
ate together as desired. Where applicable, any control setting change made
using a particular user interface is reflected on any other connected interface.

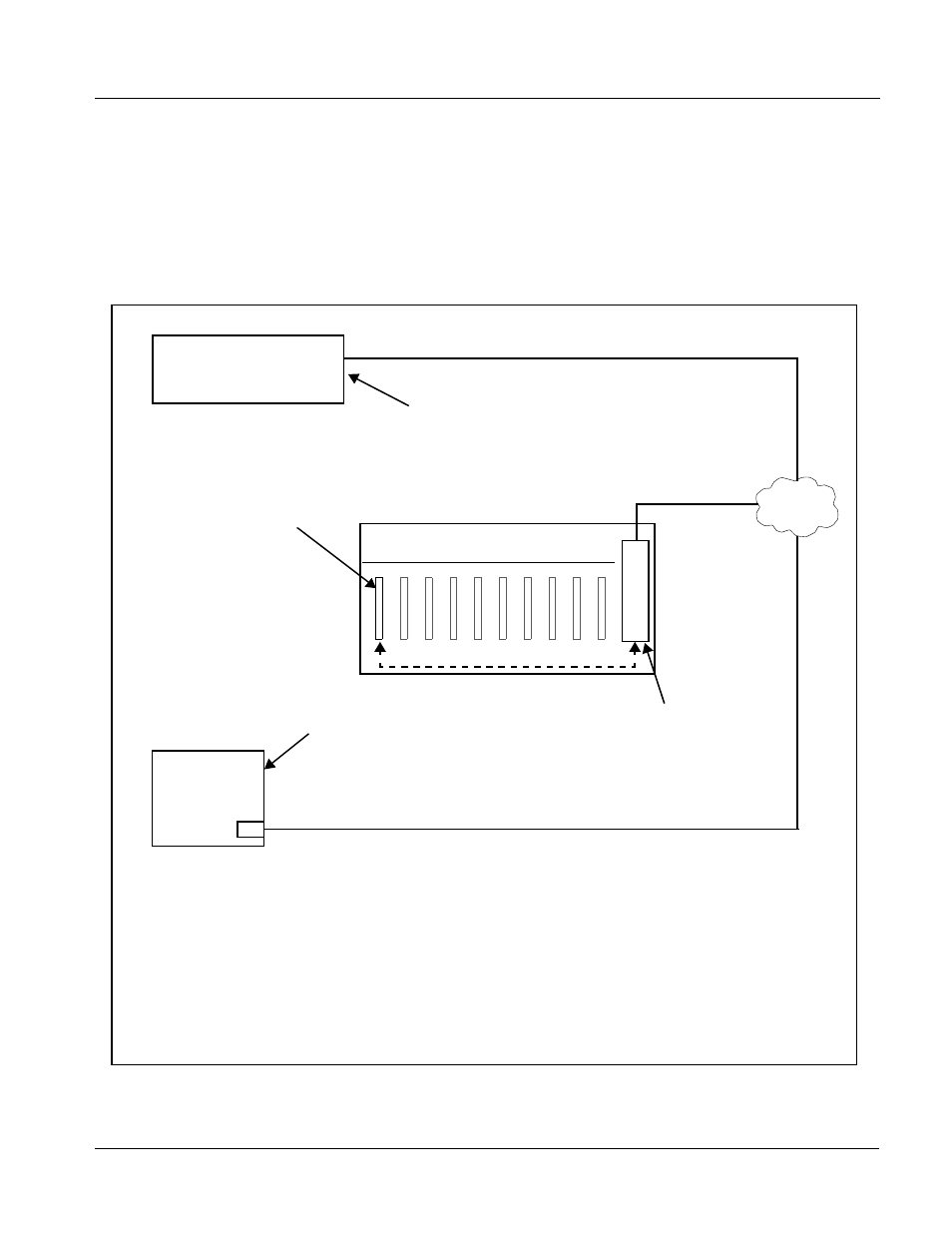

Figure 1-5 9341 User Control Interface
Computer
with NIC
OGCP-9000 Control Panel
or
OGCP-9000/CC Control Panel
20-Slot Frame with Network Controller Card
LAN
Card Edge Controls
9341 card can be
controlled using built-in
card edge controls
In conjunction with a frame equipped
with a Network Controller Card, 9341
card can be remotely controlled over
a LAN
Remote Control Panel
Using the Control Panel,
9341 card can be remotely
controlled over a LAN
DashBoard™ Remote Control
Using a computer with
DashBoard™ installed, 9341
card can be remotely controlled
over a LAN
Note: • To communicate with DashBoard™ or a Remote Control Panel, the frame must have a Network
Controller Card installed.
• DashBoard™ and the Remote Control Panels provide network control of the 9341 as shown. The
value displayed at any time on the card, or via DashBoard™ or a Control Panel is the actual value
as set on the card, with the current value displayed being the actual value as effected by the card.
Parameter changes made by any of these means are universally accepted by the card (for
example, a change made using the card edge controls will change the setting displayed on
DashBoard™ and a Control Panel; a change made using DashBoard™ will similarly change the
setting displayed on a Control Panel and the card itself).
