9341-OM (V4.1)

9341 PRODUCT MANUAL

2-5

Installation and Setup

Installing a Rear I/O Module

9341 Rear I/O Modules

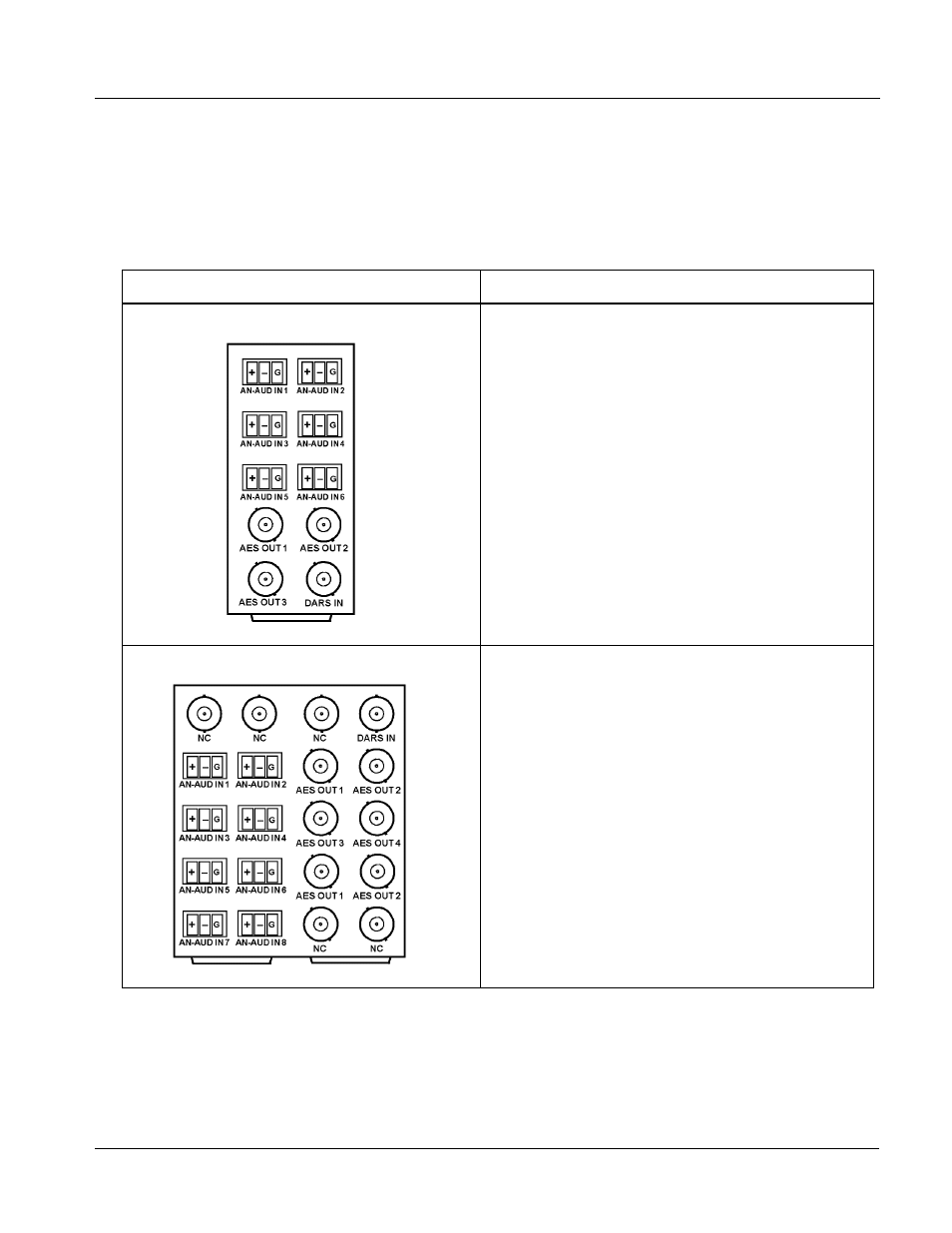

Table 2-1 shows and describes the full assortment of Rear I/O Modules
specifically for use with the 9341.

Table 2-1

9341 Rear I/O Modules

9341 Rear I/O Module

Description

RM20-9341-B

Provides the following connections:

• Six analog balanced audio inputs (AN-AUD IN 1

thru AN-AUD IN 6)

• DARS timing input (DARS IN)

• Three AES BNC outputs (AES OUT 1 thru

AES OUT 3)

RM20-9341-C

Provides the following connections:

• Eight analog balanced audio inputs (AN-AUD IN 1

thru AN-AUD IN 8)

• DARS timing input (DARS IN)

• Four AES BNC outputs (AES OUT 1 thru

AES OUT 4)

• Two AES BNC output copies (AES OUT 1 and

AES OUT 2)
