9921-FS-OM (V1.15) 9921-FS PRODUCT MANUAL 3-3
Operating Instructions
Control and Display Descriptions
9921-FS Card Edge Controls, Indicators, and Display
Figure 3-2 shows and describes the 9921-FS card edge controls, indicators,
and display.

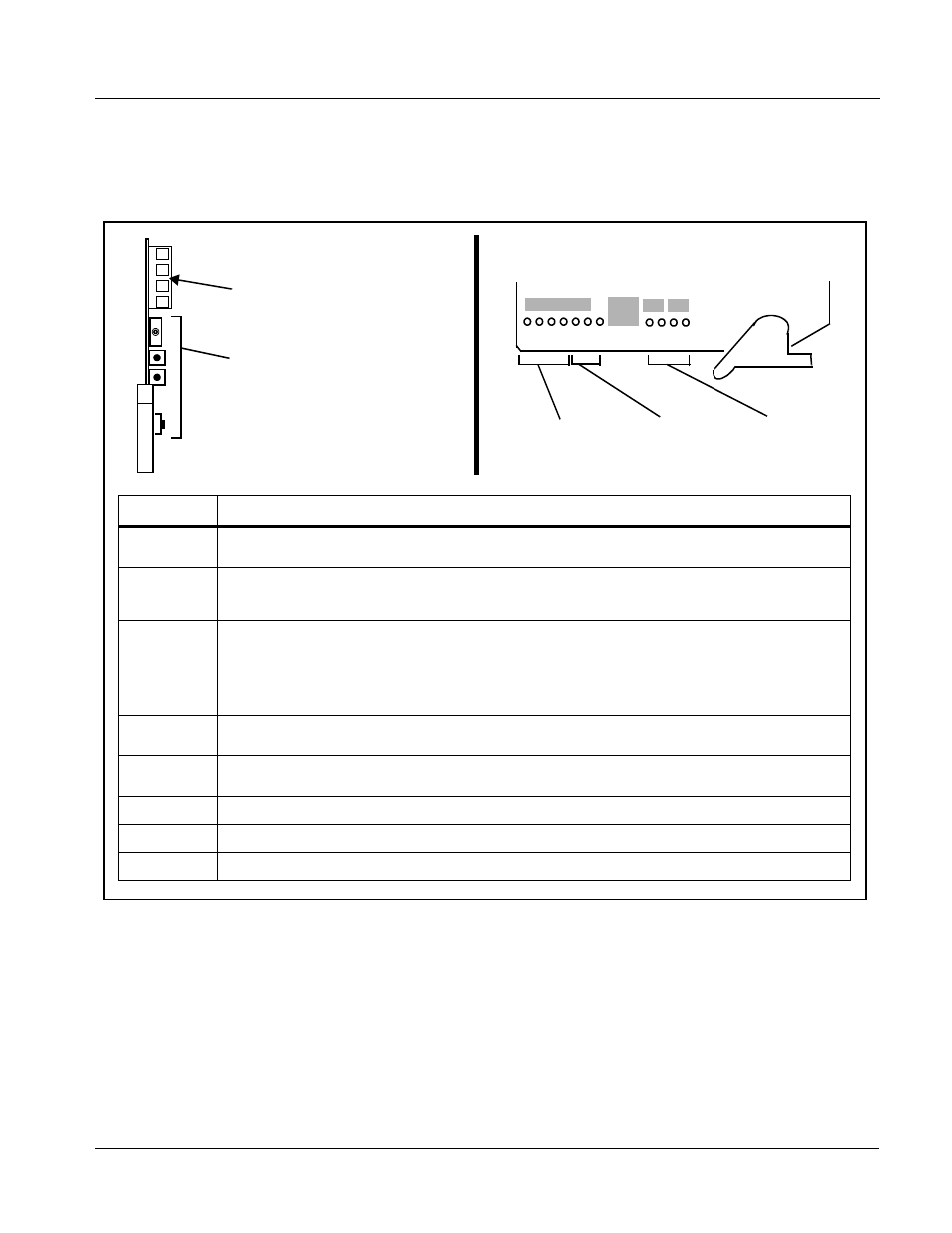

Figure 3-2 9921-FS Card Edge Controls, Indicators, and Display
Item Function
Display Displays 4-digit abbreviated code showing menu and submenu selections. When in a menu displaying a
parameter setting, the display shows parametric scalar value (and +/- sign where applicable).
Card Edge
Manual
Controls
This function is currently reserved.
Input Format
Indicators Three blue LEDs indicate the input signal format being received and locked onto by the 9921-FS:
• 3G
• HD
• SD
Continuous cycling of the LEDs indicates the 9921-FS has not locked onto a particular format (as in the case of
no signal input).
Menu Depth
Indicators
This function is currently reserved.
RMT LED Blue LED flashes when 9921-FS is receiving control message from remote network control (e.g., DashBoard™
or Cobalt
® Remote Control Panel)
REF LED Blue LED illuminates when 9921-FS is receiving valid framesync when set up for framesync reference.
LOCK LED Blue LED illuminates when 9921-FS unable to lock to framesync, or unable to lock to input standard.
ERR LED This function is currently reserved.
RM
T
RE
F
ER
R
LOCK
3G HD SD MENU DEPTH
Input Format
Indicators
Menu Depth
Indicators
Status
Indicators
99
21-
FS
4-Character Alphanumeric Display
Card Edge Manual Controls
