9921-FS-OM (V1.15) 9921-FS PRODUCT MANUAL 2-11
Installation and Setup
Installing a Rear Module

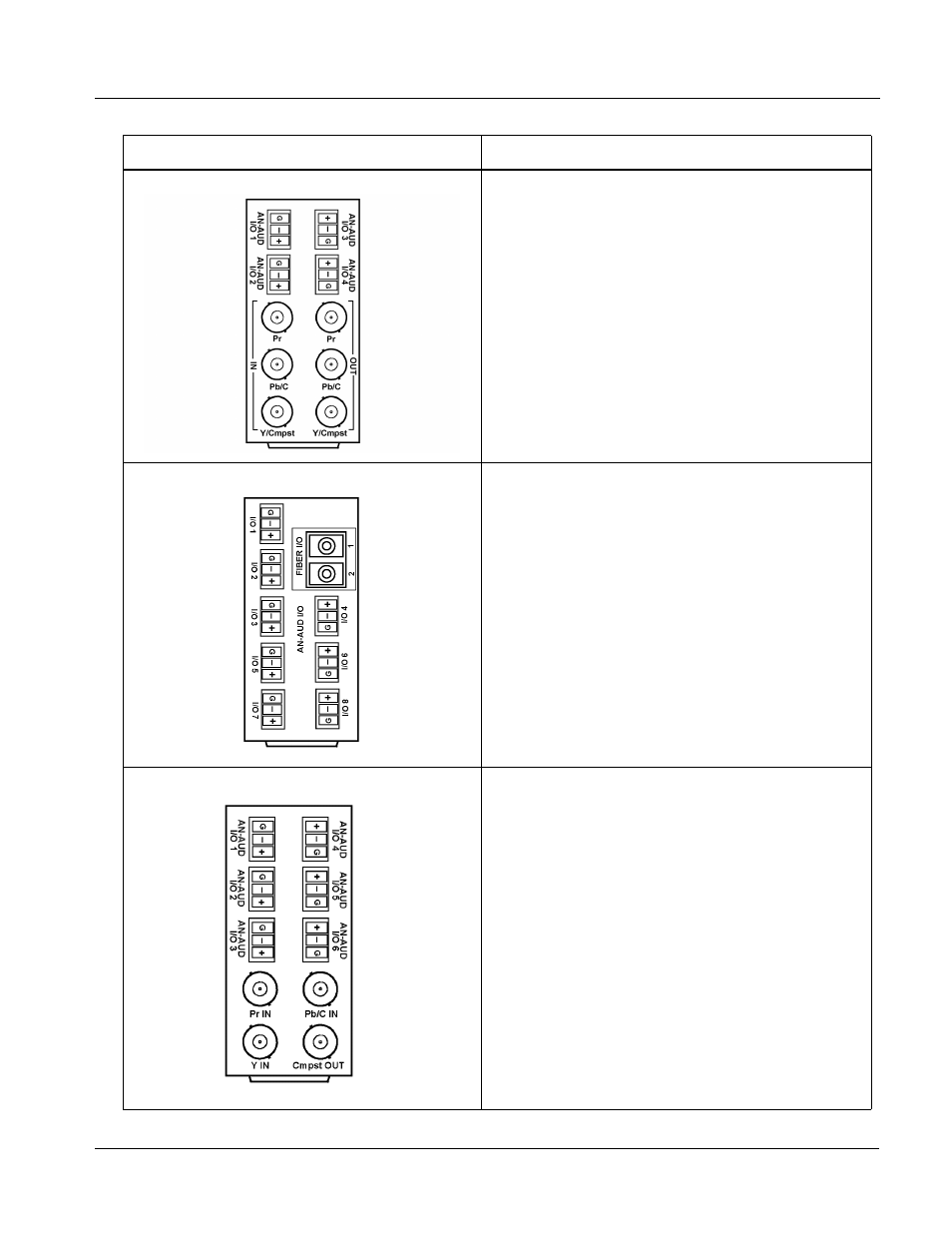

RM20-9921-XB Expansion Rear Module Used in conjunction with a base Rear Module to
provide the following additional connections:
• Four analog balanced audio I/O ( AN-AUD I/O 1 thru
AN-AUD I/O 4 ; I/O function of each connection is
switch-configurable)
• Analog Y/composite, Pr/C, and Pb coaxial inputs
(Y IN, Pr IN, and Pb/C IN, respectively)
• Analog Y/composite, Pr/C, and Pb coaxial outputs
(Y OUT, Pr OUT, and Pb/C OUT, respectively)
RM20-9921-XC Expansion Rear Module Used in conjunction with a base Rear Module to
provide the following additional connections:
• Eight analog balanced audio I/O ( AN-AUD I/O 1
thru AN-AUD I/O 8 ; I/O function of each connection
is switch-configurable)
• Two fiber I/O (GUI configurable as I/O)
RM20-9921-XD Expansion Rear Module Used in conjunction with a base Rear Module to
provide the following additional connections:
• Six analog balanced audio I/O ( AN-AUD I/O 1 thru
AN-AUD I/O 8 ; I/O function of each connection is
switch-configurable)
• Analog Y/composite, Pr/C, and Pb coaxial inputs
(Y IN, Pr IN, and Pb/C IN, respectively)
• Analog composite output (Cmpst OUT)
Table 2-1 9921-FS Rear Modules — continued
9921-FS Rear Module Description
