9921-FS Functional Description
1-24 9921-FS PRODUCT MANUAL 9921-FS-OM (V1.15)
9921-FS Rear Modules
The 9921-FS physically interfaces to system video and audio connections
using a Rear Module. Figure 1-11 shows a typical 9921-FS Rear Module.
All inputs and outputs shown in the video and audio block diagrams (Figures
1-3 and 1-5, respectively) enter and exit the card via the card edge backplane
connector. The Rear Module breaks out the 9921-FS card edge connections to
industry standard connections that interface with other components and
systems in the signal chain.
In this manner, the particular inputs and outputs required for a particular
application can be accommodated using a Rear Module that best suits the
requirements. The required input and outputs are broken out to the industry
standard connectors on the Rear Module; the unused inputs and outputs
remain unterminated and not available for use.
The full assortment of 9921-FS Rear Modules is shown and described in
9921-FS Rear Modules (p. 2-7) in Chapter 2, “Installation and Setup”.

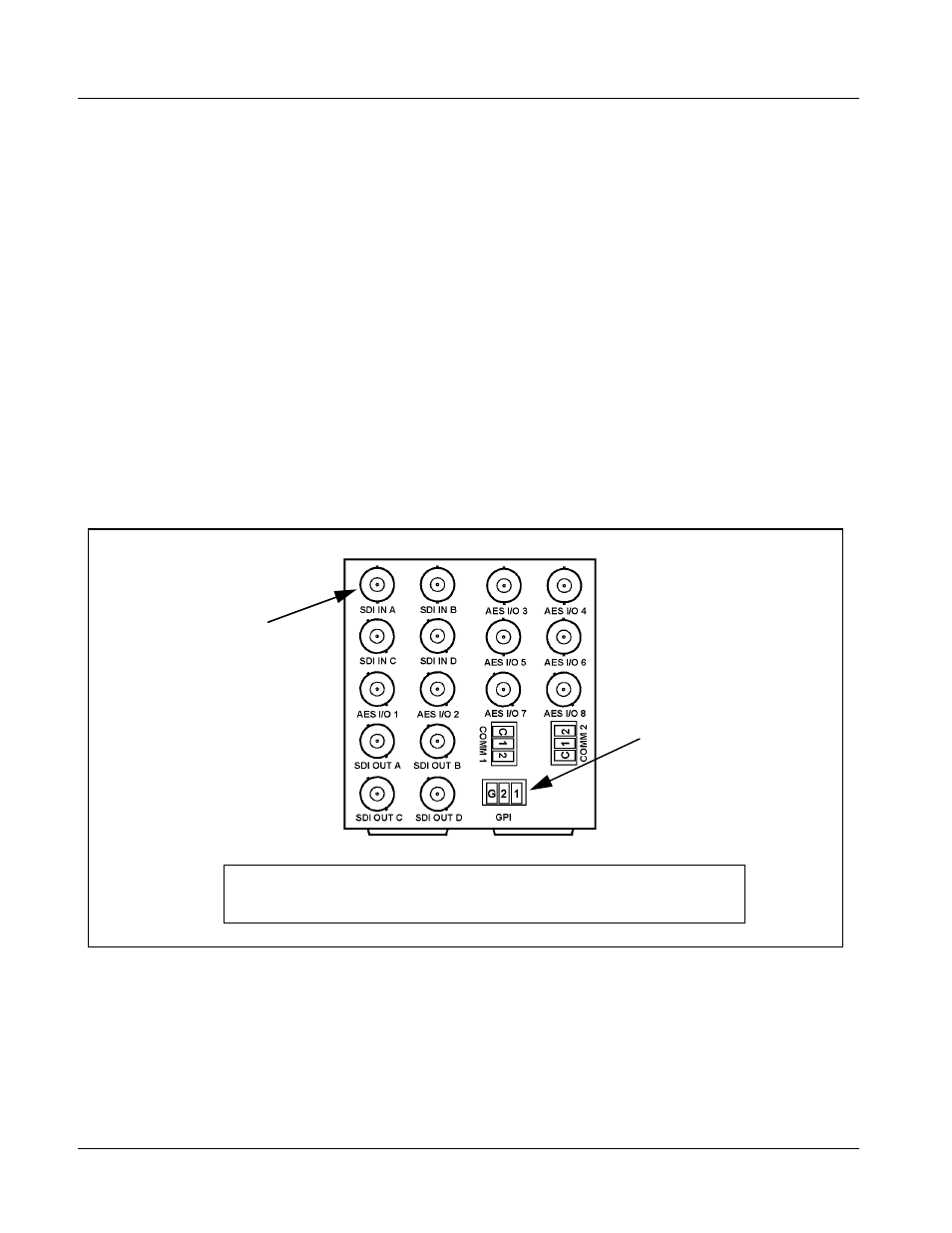

Figure 1-11 Typical 9921-FS Rear Module
BNC connectors for coaxial
video and AES audio signals
In this example, an RM20-9921-FS-E Rear Module provides a connection interface for the
signal types shown here.
Multi-terminal Phoenix terminal
block connectors (for
unterminated wiring)
