Peerless Lighting ENM1 - T8 User Manual
Envision indirect, Indirect t8, Suspended

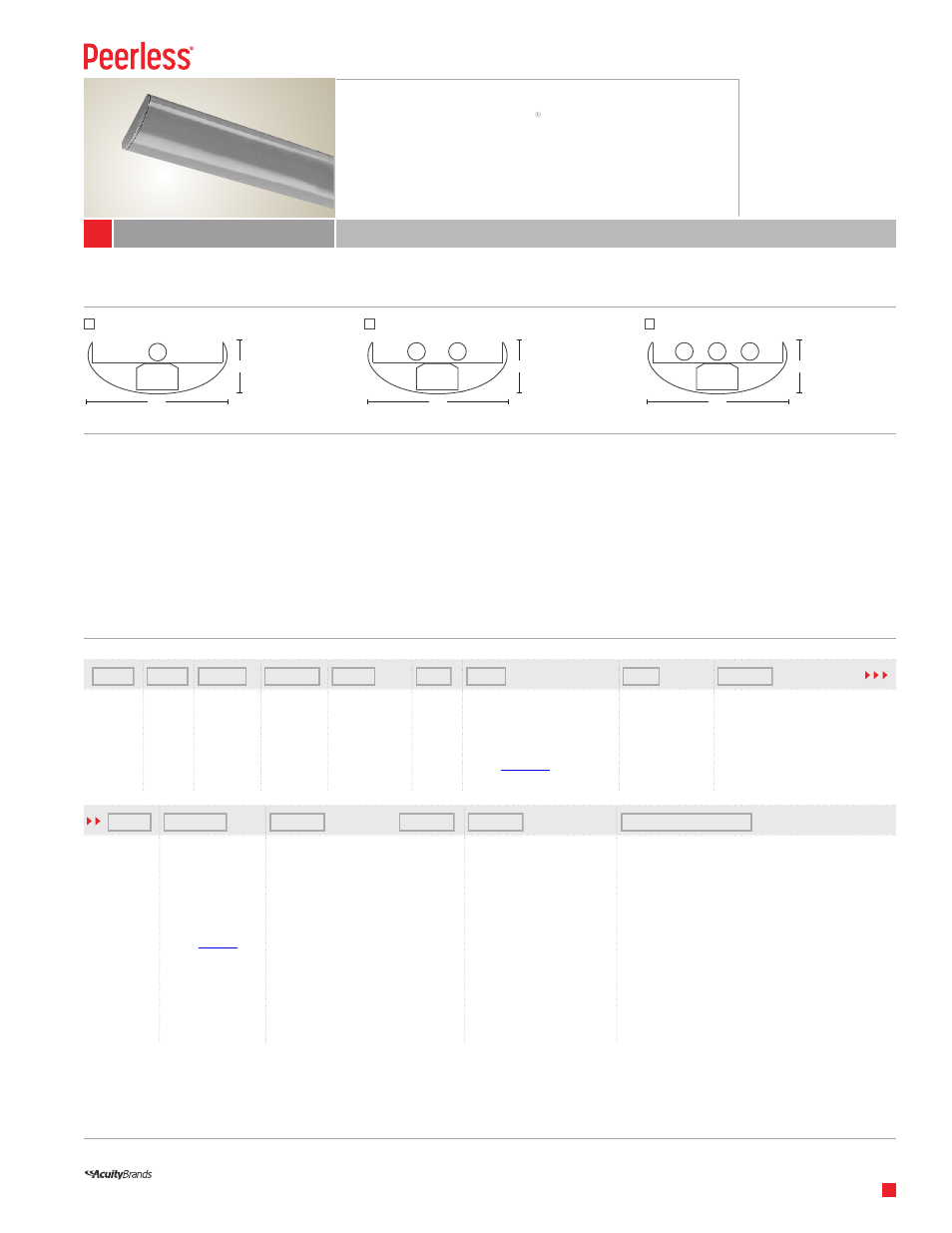

LAMPING OPTIONS
SPECIFICATIONS
CATALOG NUMBER
S P E C I F I C A T I O N S
2246 5th Street, Berkeley, CA 94710
•
Tel: 510.845.2760
•
Fax: 510.845.2776
•
•
__________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ _____________________
Type:
________________________
Project:
______________________
1
© 2012 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” and “Envision” are registered trademarks of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms locat
Indirect T8
ENM1 Envision
Suspended
ENM1
Envision Indirect
Indirect T8
Examples:
ENM1 1 32 40FT R12 120 GEB10 2SE EL SCT LP835 F1/24 C041 — ENM1 3 32 12FT R8 277 GEB10 DCT LP835 F2/15 C100
Construction
Housing is extruded aluminum forming a 8” x 3”
curved profile. Die-cast end plate attaches with no
exposed fasteners.
Reflectors
Die-formed pre-painted white steel, hammertone
specular aluminum and specular aluminum.
Finish
Satin anodized or white paint standard. Custom
colors available, consult factory.
Electrical
Specify 120V, 277V or 347V. Pre-wired with 16AWG
fixture wires. For special circuiting or wire gauge,
consult factory. Plug-in electrical connectors
included. UL and C-UL listed.
Luminaire Length
4’
1
⁄
4
”, 8’, and 12’ lengths in a single section for
exact suspension spacing of 4’, 8’, and 12’. For total
luminaire length add
1
⁄
2
” for each end cap. Using
internal joiners, 4’, 8’, and 12’ sections can be joined
to form longer-length luminaires.
ENM1 - 1
ENM1 - 2
ENM1 - 3
8”
3”
8”
3”
8”
3”
________
________
________
________
________
________
________________________
______________
______________
Luminaire
ENM1
# of
Lamps in
Cross
Section
1
2
3
Lamp Type
32
32W T8
Nominal
Row
Length
X FT
(4’ increments)
Maximum
Section
Length
R4
4’ section(s)
R8
8’ section(s)
R12
12’ section(s)
Voltage
120
277
347
Ballast Type
GEB10
<10% THD Electronic
ADEZ
1
Advance Mark 10 dim
DMHL3D
1
Lutron Hi-Lume dim
ADZT
1
Advance Mark 7 0-10V dim
Referenc
ebsite
or consult factory for other options.
# of Emergency
Modules
(Blank) None
1SE
1 section
2SE
2 sections
XSE
X sections
Emergency Type
2
(Blank) None
EC
Emergency circuit
EL
1
Emergency battery pack
EN
1
Emergency battery pack
w/night light circuit
________
________________
______________
______________
______________
_________________________________
Switching
SCT Single
circuit
DCT Dual
circuit
Lamp Color
L/LP No lamp
L/LPE No lamp. Wired
for energy saving
lamps.
LP830 3000K 80+ CRI
LP835 3500K 80+ CRI
LP841 4100K 80+ CRI
Referenc
website or consult factory for
other options.
Mounting Type /
F1/
T-bar ceiling (universal
mounting bracket)
F1A/ T-bar ceiling (UMB with
integrated J-box)
F2/
Hard ceiling (horizontal
J-box)
Overall
Suspension
12 12”
15 15”
18 18”
21 21”
24 24”
XX XX”
Overall suspension
is measured from
ceiling to bottom
of luminaire.
Finish
C041 White white (low gloss)
C100 Satin anodized finish
C099 Custom finish
Options
ACG
Adjustable cable grippers
BLK
Black cord, cord manager and canopy
CP
Chicago plenum (available with F1A mtg only)
DL
Damp location label
DU
Dust cover
ELH
Emergency through wiring w/separate feed
ELS
Emergency through wiring w/single feed, shared neutral
ELS2
Emergency through wiring w/single feed, separate neutrals
GLR
Fusing (fast blow)
GMF
Fusing (slow blow)
MCS
Matching feed canopy at support
NEPP5D nLight enabled control module per row/zone
NYC
New York City code
OJB
Offset junction box
SLP
Sloped ceiling (for 10-45°, must be specified with F2, ACG and
OJB options)
XXXX Integrated sensor; choose options and obtain code on page 2
Notes:
1 Not available in 347V
2 Emergency type is installed in last 4’ of luminaire sections. Separate feed required unless
ELS or ELS2 is specified. EL and EN not available with DCT option in 4’ individual luminaires.
