S P E C I F I C A T I O N S
PEERLESS LIGHTING
•
2246 5th street, Berkeley, CA 94710
•
Tel: 510.845.2760
•
Fax: 510.845.2776
•
Email: [email protected]
•

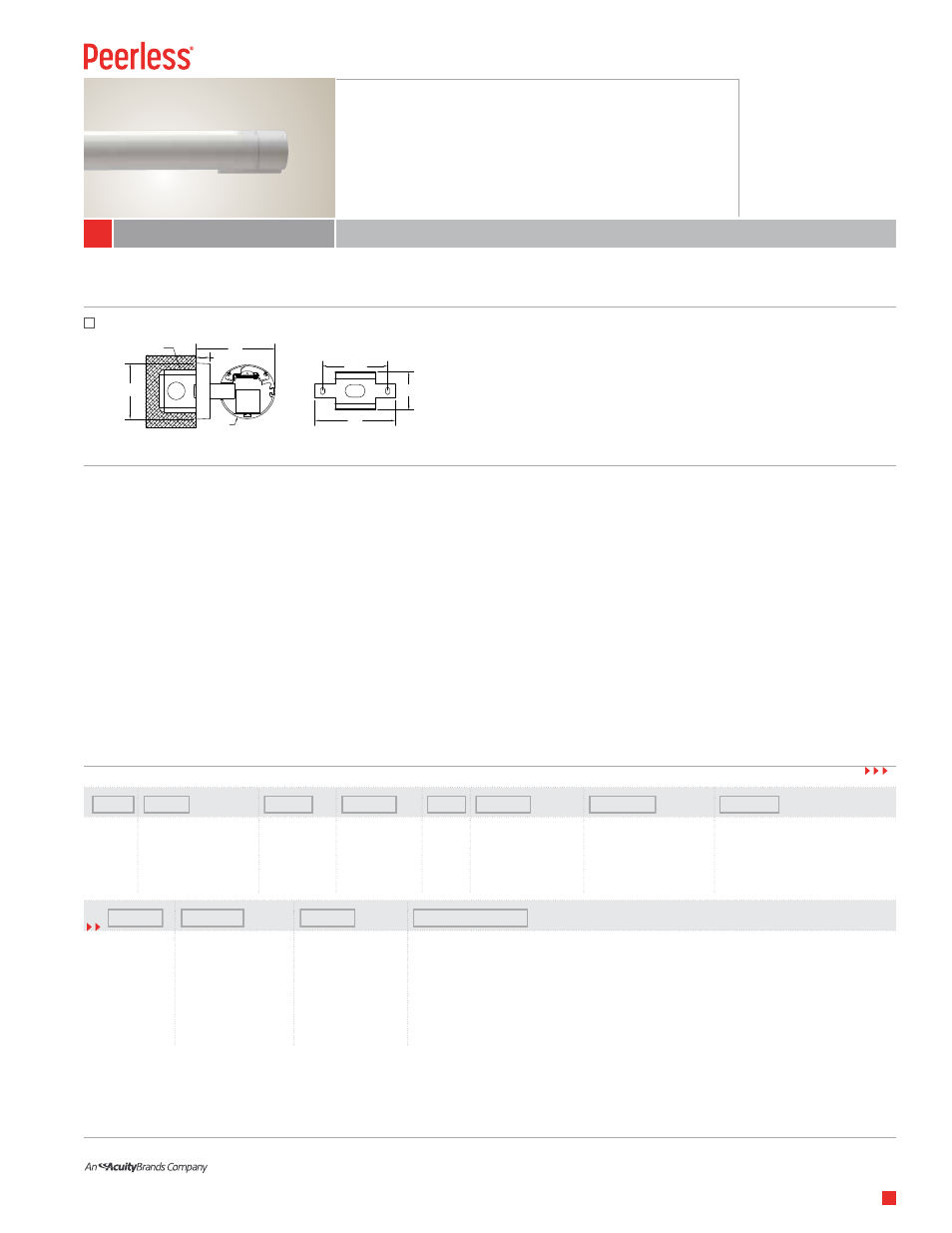

dimensions And deTAiL
sPeCiFiCATions
__________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ _____________________
CATALoG nUmBeR
3
1
⁄
4
”
2”
11
⁄
16
”
2
3
⁄
4
”
2
3
⁄
4
”
4”
4”
2”x4” switch box
by others
Type:
________________________
Project:
______________________
1
RdW1 Round Led Wall indirect
© 2012 Acuity Brands Lighting, inc. All Rights Reserved. “Peerless” is a registered trademark of Acuity Brands Lighting.
Products in this document may be covered by one or more U.s. Patents and Patents Pending. specifications subject to change without notice.
5-year limited warranty. Complete warranty terms locat
Round
Led
Wall Indirect
Wall mount — 2
3
⁄
4
” Round
RDW1
Construction
extruded aluminum housing has diameter of 2
3
⁄
4
”.
die-cast aluminum end caps mechanically attach
with no exposed fasteners.
Source
Two Led lumen packages (1400 lumens, 2700
lumens) and three available color temperature
options (3000K, 3500K and 4000K).
Optics
optical system consists of injection molded
primary optic, clear and white co-extruded acrylic
lens and metal reflector.
Finish
standard finish for housing and end caps is painted
aluminum or gloss white. Consult factory for
custom colors.
Electrical
Led light engine consists of modular Led boards
and 0-10V dimming driver rated 50,000 hours
(L
80
) at 25° C ambient temperature. driver input
wattage is 30W for 1400 delivered-lumen package
and 60W for 2700 delivered-lumen package per
4’ section.
specify 120V or 277V. Pre-wired with 16AWG
fixture wire. For special circuiting or wire gauge,
consult factory. Plug-in electrical connectors
included.
Fixture Length
4’ and 8’ lengths in a single section. For total
luminaire length, add 2” for each end cap. Using
internal joiners, 4’ and 8’ sections can be joined to
form longer rows.
Environment
damp location label option. Ambient operating
temperature o° C to 25° C.
Validation
CsA/CUs listed. individual sections are FCC part
15 certified. Lm-79 tested. Lighting Facts partner.
AdA compliant.
Warranty
Five-year limited warranty coverage includes
luminaire construction, Led light engine and driver.
Terms and conditions apply.
Packaging
100% post-consumer recycled cardboard box.
Biodegradable foam inserts and protective luminaire
bag. Recycled kraft paper tape.
Examples:
RdW1 27L 40FT R8 277 d60 sCT LP835 C310 Lm — RdW1 14L 40FT R8 120 d30 sCT LP835 C311
RDW1
ADA Compliant
__________ __________
_________
__________
__________ __________
__________
__________
Fixture
RDW1
Light Output
14L
1400 nominal
delivered-lumens
27L
2700 nominal
delivered-lumens
Fixture
Row Length
X FT
(4’ increments)
Maximum
Section
Length
R4
4’ section(s)
R8
8’ section(s)
Voltage
120
277
Driver Type
D30 30W maximum
(1400L package)
D60 60W maximum
(2700L package)
# of Emergency Modules
(Blank) none
1SE
1 section
2SE
2 sections
XSE
X sections
Emergency Type
1
(Blank) none
EC
emergency circuit
______________
________________
______________
_________________________________
Switching
SCT
single circuit
LED Color Temperature
LP830 3000K 80+ CRi
LP835 3500K 80+ CRi
LP840 4000K 80+ CRi
Finish
C310 Gloss white
C311 Painted aluminum
C099 Custom finish
Options
DL
damp location label
ELH
2
emergency through wiring w/separate feed
GLR Fusing (fast blow)
GMF Fusing (slow blow)
LM
80% lumen management without networking
Notes:
1 emergency type is installed in last 4’ of luminaire sections. separate feed required
2 no dimming control on emergency feed
