Lightfoil 3 wall, Indirect t5/t5ho, Wall mount – Peerless Lighting LF3FW - T5_T5HO User Manual
Page 2: Lf3fw

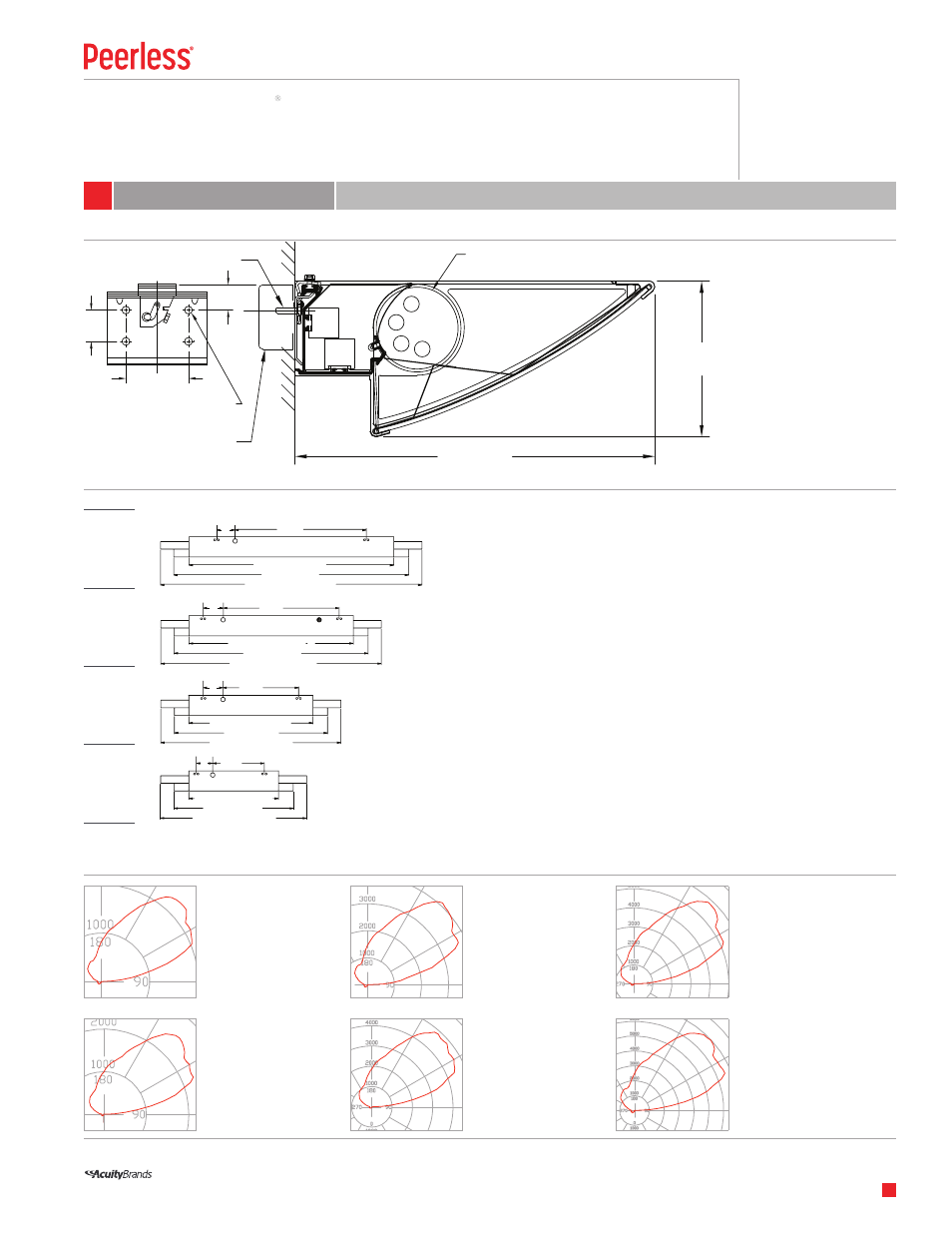

PHOTOMETRICS
WEIGHTS & SUPPORT SPACING
MOUNTING DETAIL
2246 5th Street, Berkeley, CA 94710
•
Tel: 510.845.2760
•
Fax: 510.845.2776
•
•
3’-4”
4”
5’-0”
Housing
6’-4
5
⁄
8
”
Housing
5’-9” Wing
3’-4”
4’-0
1
⁄
4
”
Housing
5’-4
3
⁄
4
”
Housing
3’-9” Wing
2’-4”
3’-0
3
⁄
8
”
Housing
4’-4
7
⁄
8
”
Housing
3’-9” Wing
1’-8”
2’-2
3
⁄
8
”
Housing
3’-6
7
⁄
8
”
Housing
2’-11” Wing
4”
4”
4”
STANDARD SECTIONS
ELEVATION
Type:
________________________
Project:
______________________
32 LBS
28 LBS
24 LBS
20 LBS
Actual performance may differ as a result of end-user environment and application.
2
© 2012 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” and “Lightfoil” are registered trademarks of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms locat
Indirect T5/T5HO
LF3FW Lightfoil 3 Wall
3-LAMP 24W T5HO
77.6% efficiency
4656 delivered lumens
97.1% up / 2.9% down
3-LAMP 39W T5HO
77.9% efficiency
8180 delivered lumens
97.4% up / 2.6% down
3-LAMP 54W T5HO
78.7% efficiency
11809 delivered lumens
97.2% up / 2.8% down
4-LAMP 24W T5HO
74.2% efficiency
5927 delivered lumens
87.2% up / 12.8% down
4-LAMP 39W T5HO
74.1% efficiency
10376 delivered lumens
97.2% up / 2.8% down
4-LAMP 54W T5HO
74.8% efficiency
14981 delivered lumens
97.5% up / 2.5% down
Wall Mount
LF3FW
Lightfoil 3 Wall
Indirect T5/T5HO
3
1
⁄
2
” Cylinder at each end
2
1
⁄
2
”
Mounting holes
for a
1
⁄
4
” bolt
1”
2 x 4 Switch Box
(by others)
1
1
⁄
4
”
1”
LF3FW - 6
1
⁄
4
”
LF3FW - 14
3
⁄
8
”
