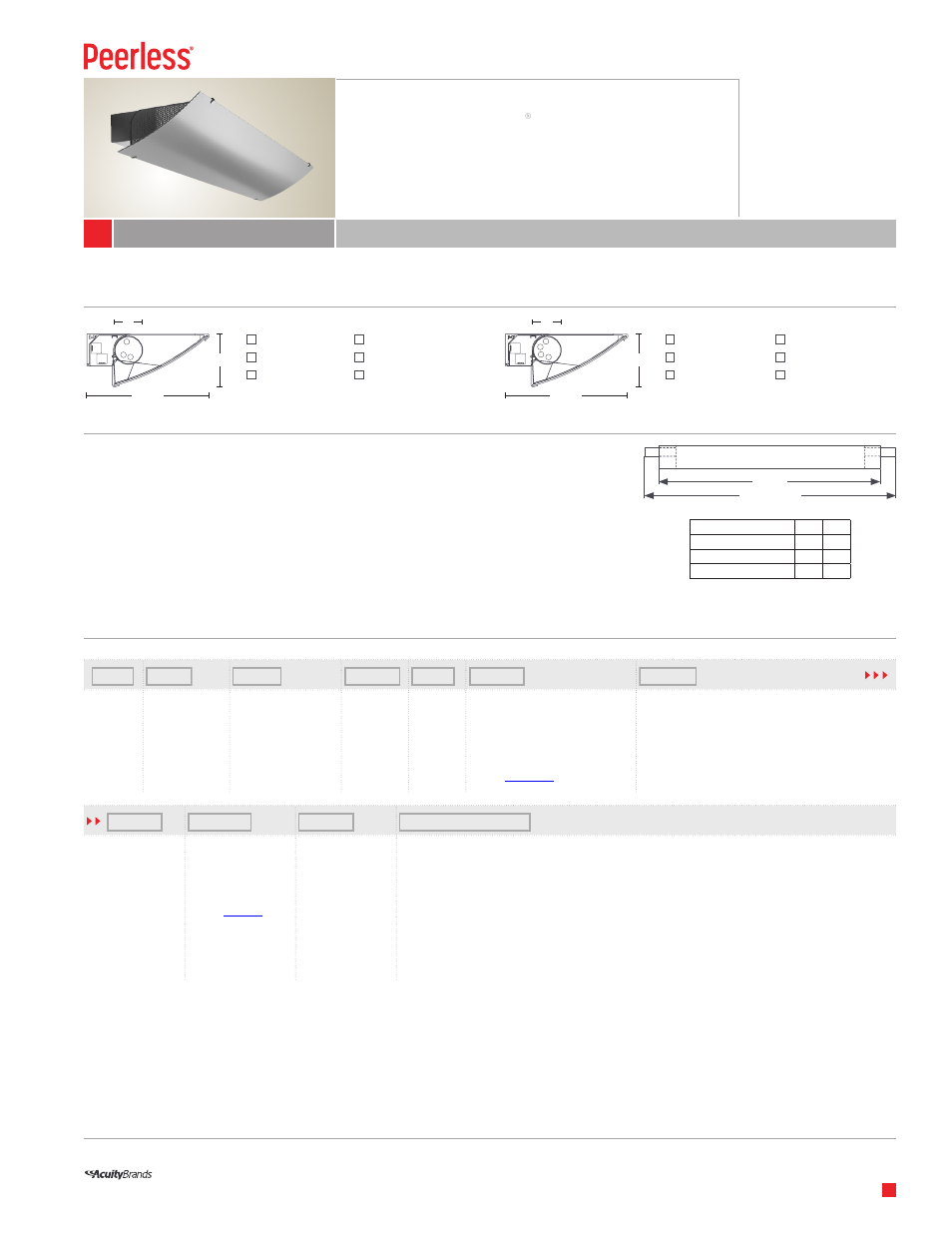

Peerless Lighting LF3FW - T5_T5HO User Manual
Lightfoil 3 wall, Indirect t5/t5ho, Wall mount
LAMPING OPTIONS
SPECIFICATIONS
CATALOG NUMBER
S P E C I F I C A T I O N S
2246 5th Street, Berkeley, CA 94710
•
Tel: 510.845.2760
•
Fax: 510.845.2776
•
•
__________ __________ __________ __________ __________ __________ __________ __________ __________ __________ _____________________
Type:
________________________
Project:
______________________
1
© 2012 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” and “Lightfoil” are registered trademarks of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms locat
Indirect T5/T5HO
LF3FW Lightfoil 3 Wall
Construction
Housing and cylinder are extruded aluminum. Foil
is Reynobond® (Alcoa) composite consisting of two
sheets of corrosion resistant aluminum laminated to
an extruded thermoplastic core material.
Reflectors
Die-formed pre-finished white steel, hammertone
specular aluminum and specular aluminum.
Finish
Housing and cylinders powder coated. Foil is
available in bronze, silver and white.
Electrical
Specify 120V or 277V. For special circuiting, consult
factory. UL and C-UL listed.
Examples:
LF3FW 3 24T5HO U2 120 GEB10 SCT LP835 C222 — LF3FW 4 54T5HO U4 120 GEB10 SCT LP835 C224
Wall Mount
LF3FW
Lightfoil 3 Wall
Indirect T5/T5HO
6
1
⁄
4
”
14
3
⁄
4
”
6
1
⁄
4
”
14
3
⁄
4
”
LF3FW 3 14W T5
LF3FW 3 21W T5
LF3FW 3 28W T5
LF3FW 4 14W T5
LF3FW 4 21W T5
LF3FW 4 28W T5
LF3FW 4 24W T5HO
LF3FW 4 39W T5HO
LF3FW 4 54W T5HO
LF3FW 3 24W T5HO
LF3FW 3 39W T5HO
LF3FW 3 54W T5HO
3”
3”
A
B
LF3FW 14W or 24W
35”
43”
LF3FW 21W or 39W
45”
53”
LF3FW 28W or 54W
57”
65”
A - FOIL
B - LUMINAIRE
__________
__________
__________
_________
__________
__________
__________
Luminaire
LF3FW
# of Lamps in
Cross Section
3
4
Lamp Type
24T5HO 24W 2’ T5HO
39T5HO 39W 3’ T5HO
54T5HO
1
54W 4’ T5HO
28T5 28W 4’ T5
21T5 21W 3’ T5
14T5 14W 2’ T5
Luminaire
Row Length
U2 2’
U3 3’
U4 4’
Voltage
120
277
347
Ballast Type
GEB10
<10% THD Electronic
ADEZ
1,2
Advance Mark 10 dim
DMHL3D
1
Lutron Hi-Lume dim
ADZT
1,2
Advance Mark 7 0-10V dim
OSDIM
1,2
Osram 0-10V dim
Referenc
ebsite
or consult factory for other options.
Emergency Type
3
(Blank) None
EC
Emergency circuit
EL
1,4
Emergency battery pack
EN
1,4
Emergency battery pack
w/night light circuit
______________
________________
______________
_________________________________
Switching
SCT
Single circuit
DCT Dual circuit
Lamp Color
L/LP No lamp
LP830 3000k 80+ CRI
LP835 3500k 80+ CRI
LP841 4100k 80+ CRI
Referenc
website or consult factory for
other options.
Finish
C222 Bronze
C223 Silver metallic
C224 Bone white
Options
DL
Damp location label
FEP
Flat Endplate (no cylinder)
GLR Fusing (fast blow)
GMF Fusing (slow blow)
Notes:
1 Not available in 347V
2 Not available with 28WT5 lamps
3 EL, EN and EC only available with SCT
4 Only available with 28T5 and 54T5HO lamping
