2.0L GT FORESTER BLOW-OFF VALVE ADAPTOR INSTRUCTIONS
Head Office: Turbosmart Pty Limited, PO Box 264 Croydon, NSW, 2132 Australia Ph: +61(2) 9798 2866 Fax: +61 (2) 9798 2826 Email: [email protected]
USA Office: Turbosmart USA, 1185 Park Center Drive, Suite Q, Vista CA 92081 USA Ph: (760) 727 7610 Fax: (760) 727 7963 Email: [email protected]
PART NUMBER
FG-ADM-FRST20

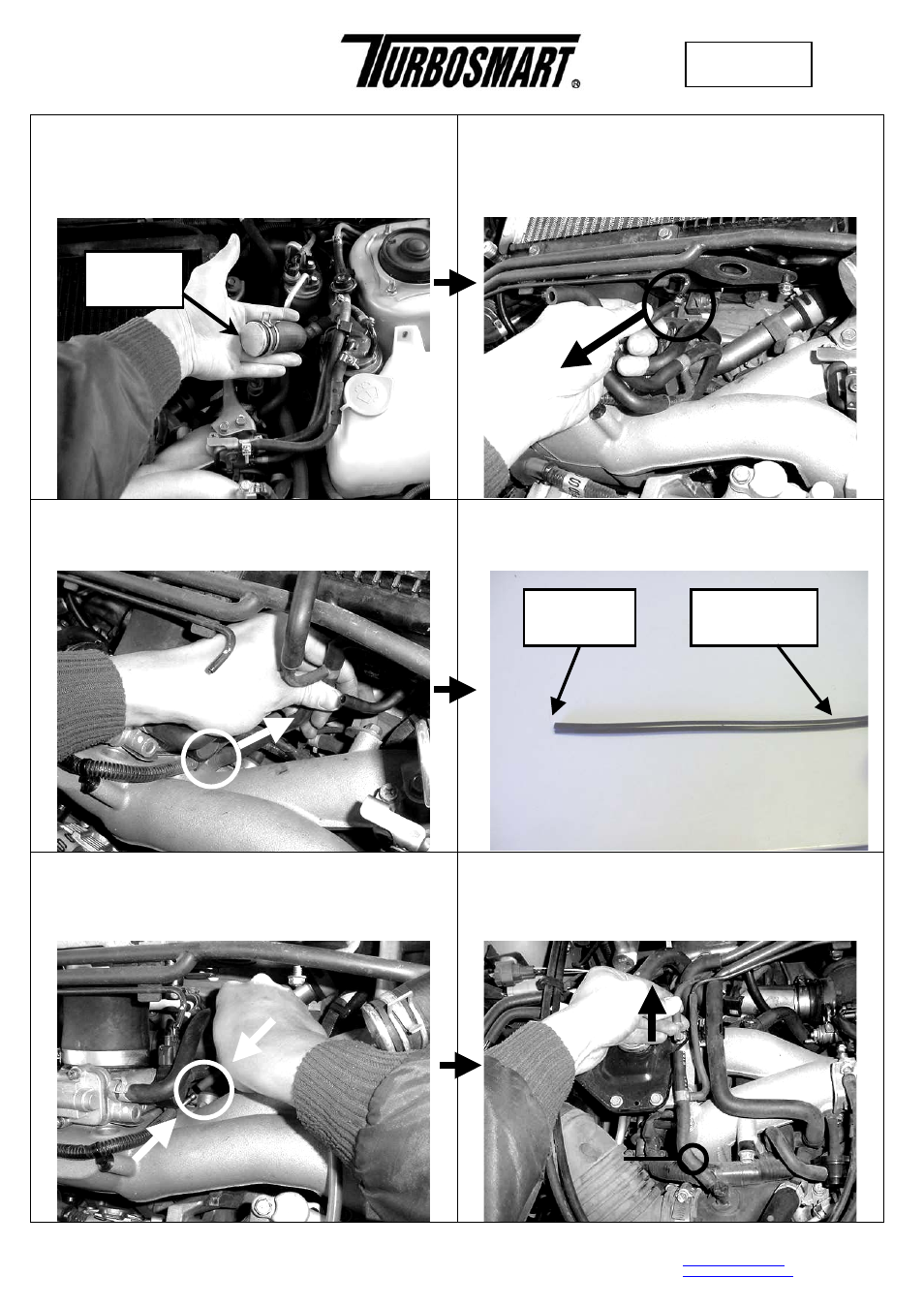

Step 5. Blank off the return hose with the 29mm
Turbosmart plug supplied. Secure the plug with the
factory hose clamp.
(If you are installing a Type III Dual
Port or a Plumb Back, do not blank off the return hose, you will
be attaching this hose to the plumb-back fitting on the BOV.)
Step 6. Remove the whole vacuum/boost line by first
disconnecting the hose from the small diameter pipe.
Step 7. Finish removing the vacuum/boost line by
disconnecting it from the intake manifold to
expose the fitting. Step 8. Connect the 450mm silicon hose assembly as
shown in the diagram below:
Step 9. Install one end of the Silicon hose assembly
supplied onto the intake manifold fitting and secure with
the 6mm spring clamp supplied.
Step 10. Near the headlights on the left side of the
engine bay, re-route the hoses feeding back to the air
intake pipe. Disconnect the plastic reducer from the
return hose as shown below.
Plumb-back
fitting here
Connect one end
to throttle body Connect other end
to Turbosmart BOV
RETURN
HOSE
