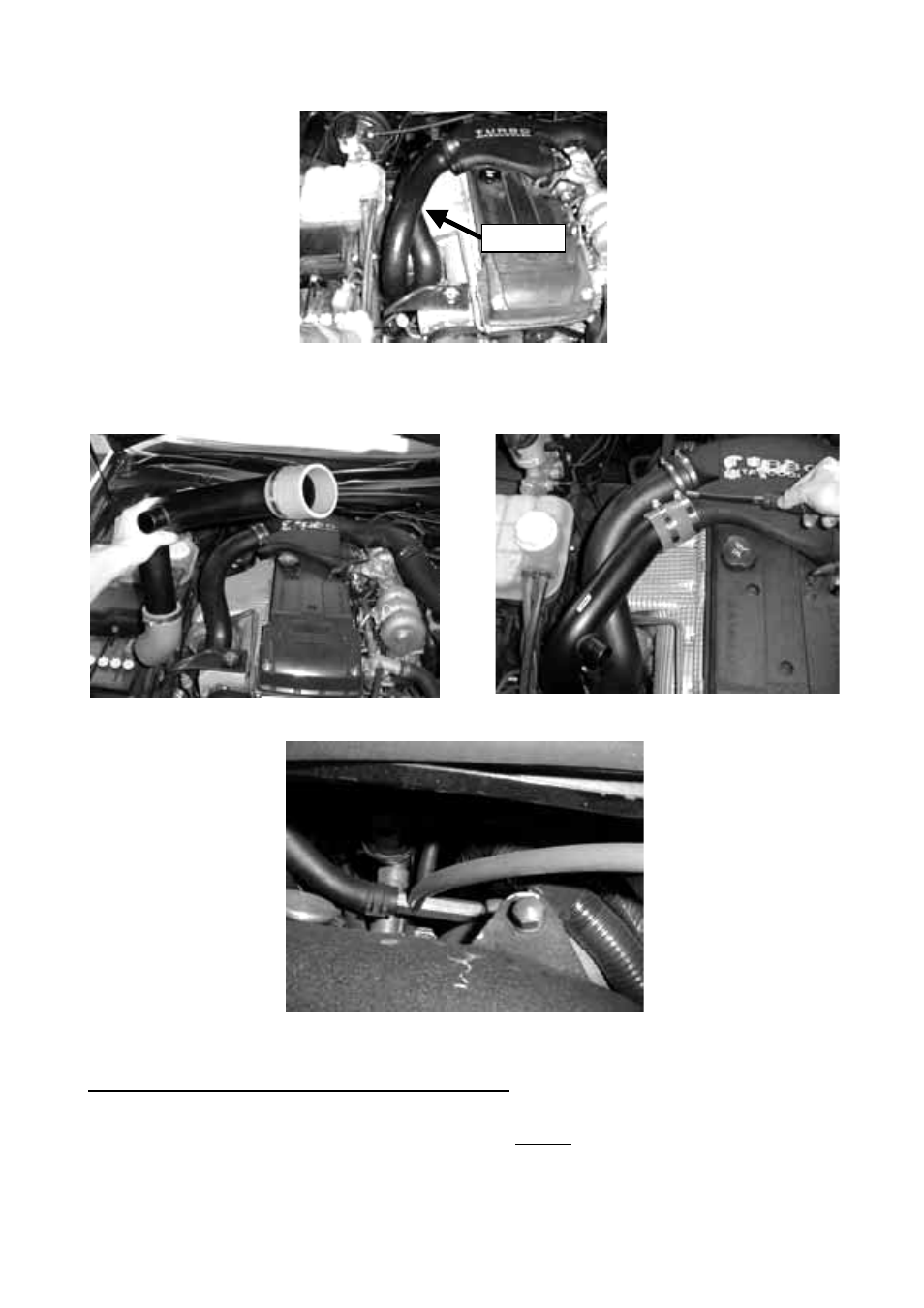

3) Remove the black hose as shown in the picture by removing the lower hose clamp securing it.
4) Fit the silicone hose joiners onto the pipe adapter and fit to the engine. Secure with supplied hose clamps
5) Connect the supplied 5mm vacuum hose to the factory tee piece that supplied pressure to the standard bypass valve
6) Install Turbosmart BOV onto pipe work. Fit the vacuum hose from the tee piece to the BOV. Secure hose ends with supplied
spring clamps. Start engine and check for leaks
IMPORTANT NOTES ON SETTING THE SPRING TENSION
- Adjustment to the BOV is made by rotating the cap. To increase spring tension rotate in the direction of hard, marked on the top of
the cap
- Rotate the cap in the direction of soft to decrease the spring tension – CAUTION Do not rotate the cap beyond the red indicator
groove
- With the engine at idle the exhaust ports should be closed off by the piston – the piston should be hard against the seat and not
floating or moving
- Free rev the engine and back off quickly, the engine should return to normal idle speed – if the engine drops below idle or stalls
increase the spring tension by half a turn
