1) INTERNAL WASTEGATE SETUP
•
Allow the engine to cool down before installing your boost controller
•

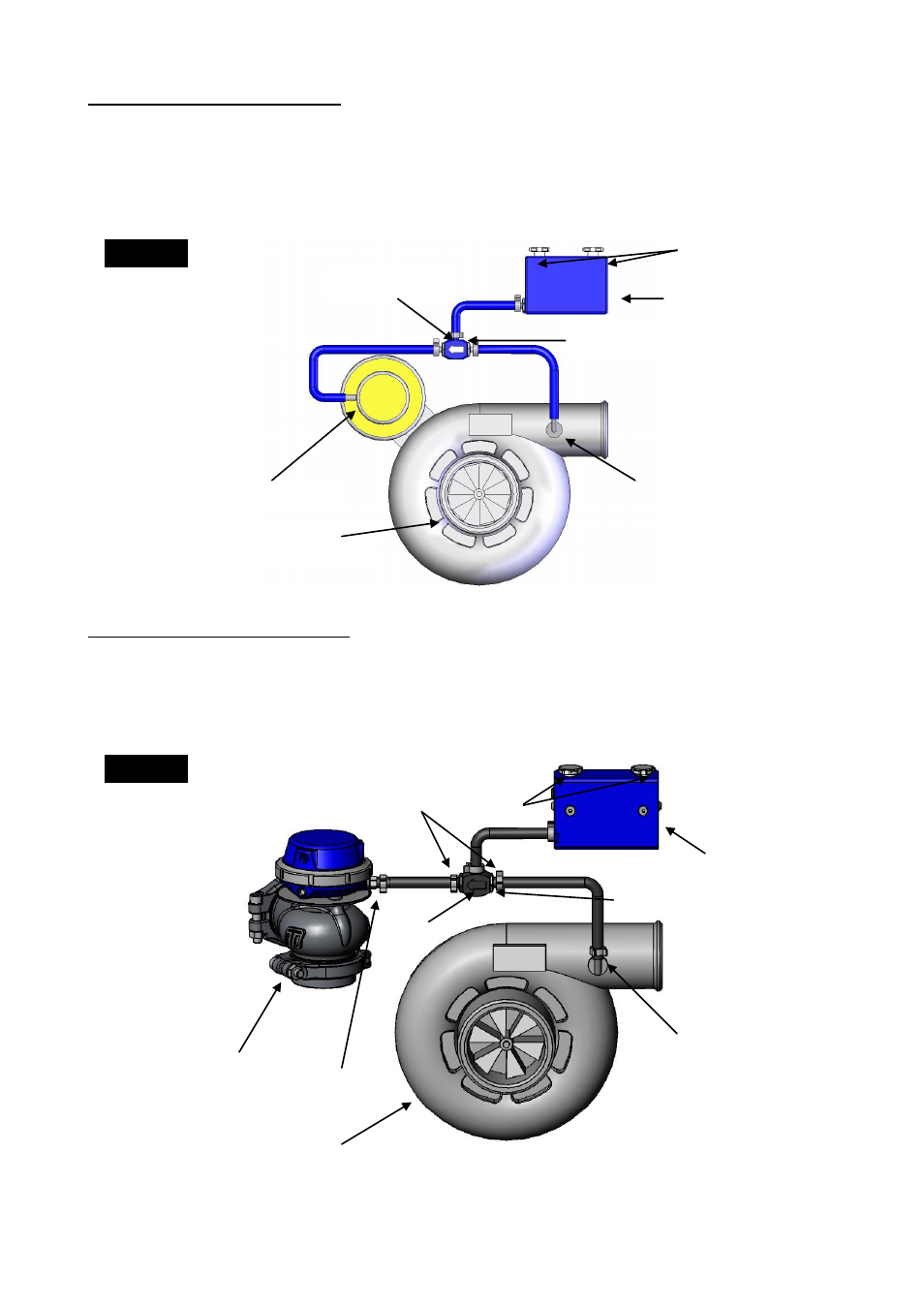

Locate the pressure source port and the wastegate actuator port on the turbocharger assembly (refer drawing 1)
•
Remove the factory boost control solenoid if fitted from the boost pressure supply port while leaving the solenoid connected to the
ECU
•
Install the DSBC Tee piece in the wastegate pressure line with the wastegate arrow pointing towards the wastegate actuator
•
If your wastegate actuator has additional ports, these will need to be blocked
•
Secure all silicone hose ends with hose clamps
•
Mount your boost controller bracket onto the vehicle, and then attach the boost controller onto the bracket with the supplied screws
•
Make sure the boost dials are turned completely anti-clockwise before making adjustments.
HOW TO INSTALL YOUR BOOST CONTROLLER cont.
2) EXTERNAL WASTEGATE SETUP
•
Allow the engine to cool down before installing your boost controller
•
Locate the bottom port on the external wastegate and the pressure source port (refer Drawing 2)
•
Install the DSBC Tee piece in the wastegate pressure line with the wastegate arrow pointing towards the bottom port on the
wastegate
•
Secure all silicone hose ends with hose clamps
•
Mount your boost controller bracket onto the vehicle, and then attach the boost controller onto the bracket with the supplied screws
•
Make sure the boost dials is turned completely anti-clockwise before making adjustments.
Wastegate actuator port
DSBC Tee piece
Pressure source port
(Located before the
throttle body)
Compressor
Boost controller
Wastegate Arrow
Drawing 1
Turbocharger
Boost dials
Bottom port
External wastegate
DSBC Tee Piece
Hose clamps
Wastegate
Arrow
Pressure source port
(Located before the throttle
body)
Drawing 2
Boost dials
Boost controller
