H:\MANUALS\IM0049C.DOC Installation Manual Model MC Shot Flow Controller 9 of 12
2
1
3

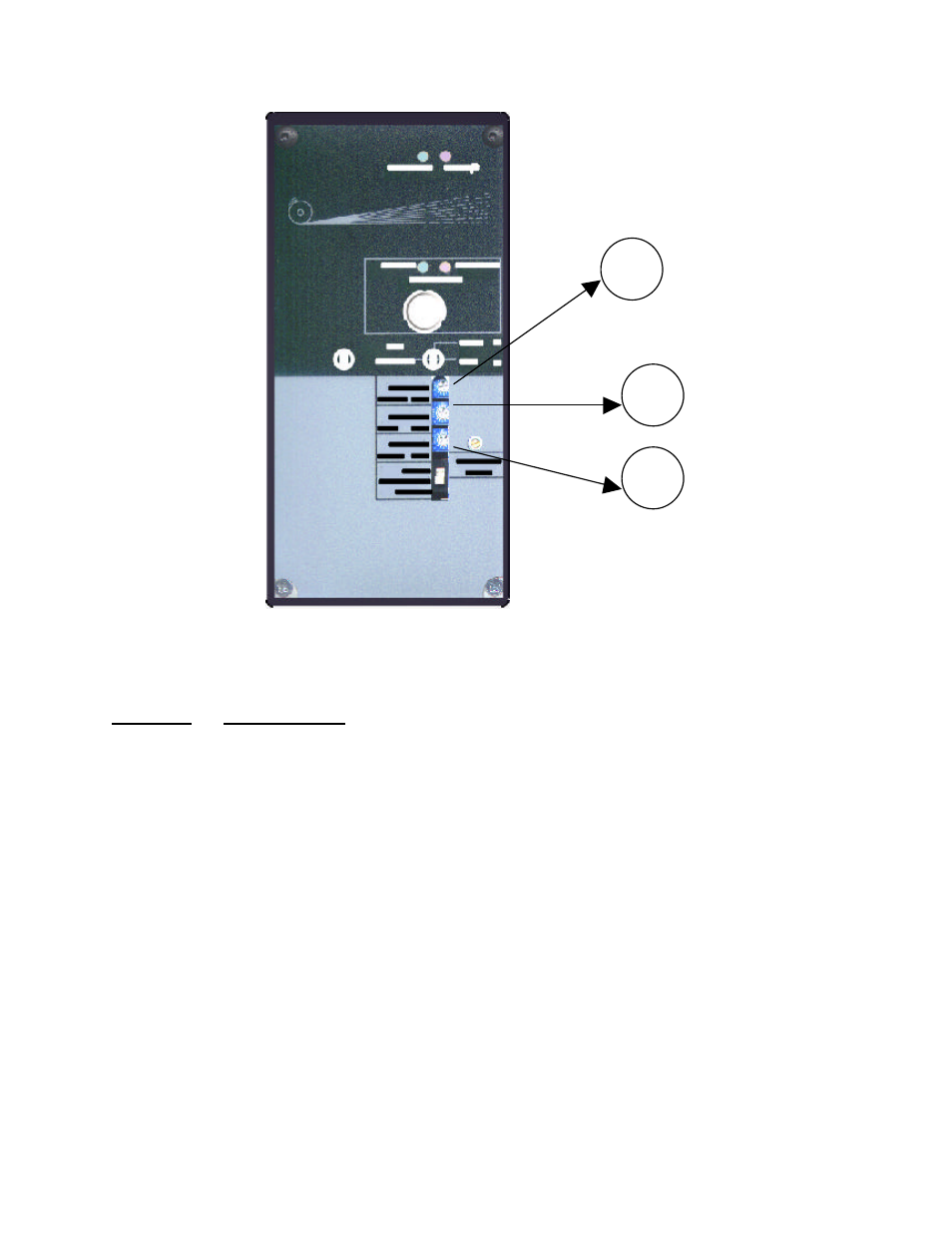

FIGURE 3. FRONT PANEL - Factory Settings
FIGURE 4. TEST SOCKET PIN ASSIGNMENT
Test Point
Socket Number
1. (-) 5 Volt dc reference voltage
2. (+) 5 Volt dc reference voltage
3. (+) 5 Volt dc for digital display
4.
5.
6.
7.
8. "ON" logic signal from enable circuit
9.
TP-8 10. Logic (PWM) pulse width modulation (after circuit breaker)
11.
12. +10 Vdc reference excitation voltage
TP-5 13. Output of triangle generator
14. Common 0 Vdc
15. (-) 12 Vdc excitation output
16. (+) 12 Vdc excitation output
