H:\MANUALS\IM0049C.DOC Installation Manual Model MC Shot Flow Controller
8 of 12
2.
MAXIMUM OUTPUT LIMIT - This adjustment sets the maximum output level to
the MagnaValve to prevent the operator from overloading the wheel motor. This limit applies to
both the setpoint knob and the external remote command, if used.
2
1

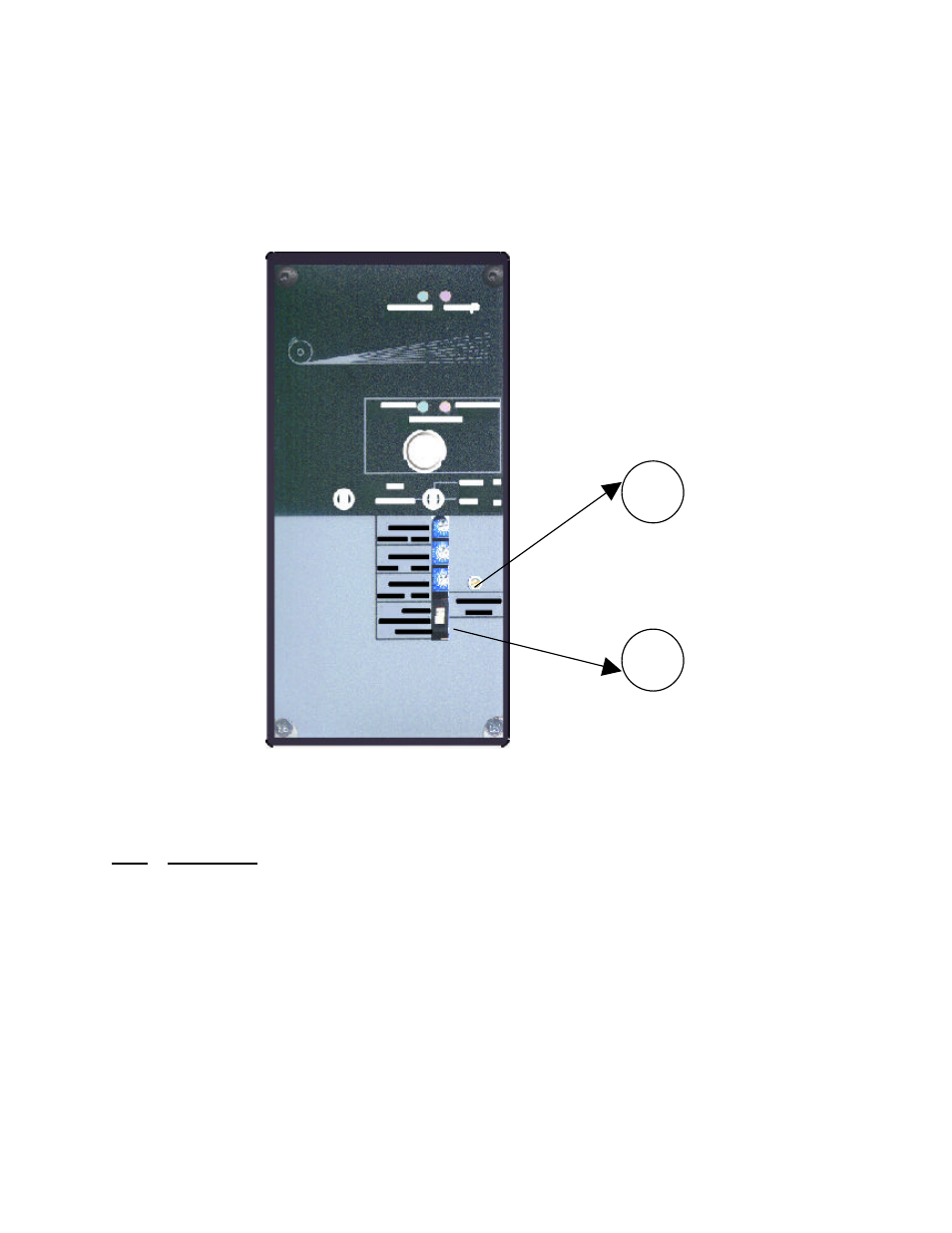

FIGURE 2. FRONT PANEL - Technician Adjustments
FIGURE 3. FRONT PANEL - Factory Settings
Item Description
1.
FACTORY FREQUENCY - Factory setting of output signal frequency to 8 Hertz.
DO NOT RE-ADJUST.
2.
FACTORY BIAS - Factory setting of internal triangle generator signal (calibrates the
low output level). DO NOT RE-ADJUST.
3.
FACTORY AMPLITUDE - Factory setting of internal triangle generator signal
(calibrates high duty cycle output level for 10 Vdc command). DO NOT RE-ADJUST.
