4. PLC WatchDog Operation
PNEG-1755 PLC WatchDog 27

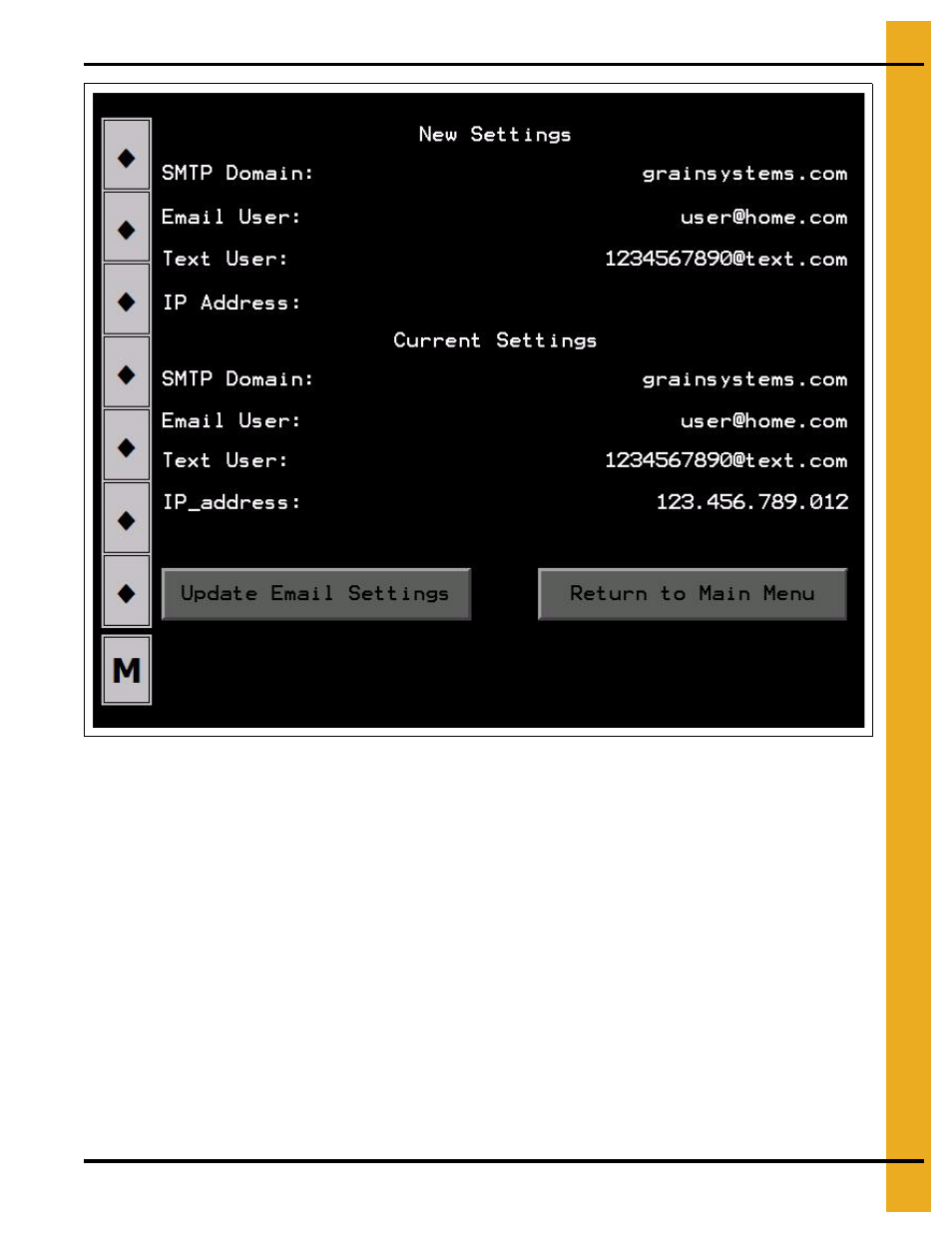

Figure 4S
If a change is to be made to the current settings of the system, the user should verify the information
displayed under “New Settings” and then proceed to press the “Update Settings” button. Upon pressing
this button, the updated information will be sent to and stored in PLC WatchDog controller. The updated
information will also change on the web page.
Pressing the “Return to Main Menu” button will return the user back to the screen that is shown in
Figure 4M on Page 21 .
Time Settings Button
Password status must be active to enable this function.
Pressing the “Time Settings” button will bring up the screen that is shown in Figure 4T on Page 28 . The
“Current Time/Date” title is shown on the right side of the screen. This is the current information that is
stored in the PLC and viewable on the dryer display. The information that is listed under the “New Settings”
title is the user entered data from the “View Data - Set Time Date” web page.
